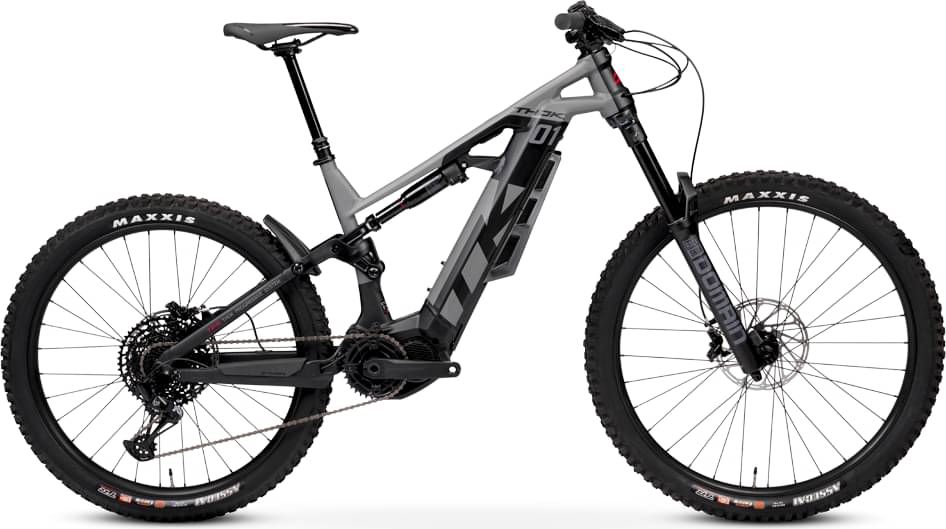

thok TK01 Matt Grey 2023
2023 E-bike
Estimate price |
6,387$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset NX, SX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO EP6 - 85 Nm (250W) - 630Wh integrated Shimano battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 169cm
MD
166cm - 179cm
LG
176cm - 186cm
XL
184cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
Suspension Fork
ROCK SHOX - DOMAIN 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered.
Rear Shock
ROCK SHOX - DELUXE Select R, THOK Custom tuned
Drivetrain
Rear Derailleur
SRAM - NX, 12s
Shift Levers
SRAM - SX Eagle Trigger, 12s
Cassette
SRAM - Eagle 12s (11-50)
Crank
FSA 165mm - chainring 34T
Chain
SRAM - Eagle 12s
Pedals
Pedals in polyethylene
Wheels
Rims
THOK Drift - 29"x30 mm front & 27.5"x35 mm rear
Tires
MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
Brakes
Brakes
SRAM - Guide T, 4 pistons calipter, 200mm Centerline rotor
Cockpit
Stem
THOK forged, 35mm front clamp oversize, 35mm length
Handlebar
THOK 35mm, rise 20mm, 780mm width
Grips
THOK - Lock-On grip, regular size
Seat
Saddle
THOK Fit in Chromo
Seatpost
THOK telescopic dropper post, (125mm size S - 150mm size M - 170mm sizes L and XL)
Motor & Battery
Motor
SHIMANO EP6 - 85 Nm (250W) - 630Wh integrated Shimano battery
Battery
SHIMANO EP6 - 85 Nm (250W) - 630Wh integrated Shimano battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 759 mm | 780 mm | 812 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133.6 mm | 133.6 mm | 133.6 mm | 133.6 mm |
| Stack | 616 mm | 625 mm | 640 mm | 656 mm |
| Reach | 425 mm | 441 mm | 466 mm | 493 mm |
| Top Tube Length | 584 mm | 602 mm | 631 mm | 662 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 385 mm | 415 mm | 450 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 131 mm | 149 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1214 mm | 1235 mm | 1267 mm | 1300 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 785 mm | 785 mm | 785 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 179 cm | 186 cm | 199 cm |
About this model
TK01 Matt Grey completes the Thok E Tk01 model. Thok released 7 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Thok TK01 Matt Grey 2023 is the cheapest e-bike model and costs 5829$. Thok TK01 R 2023 is the most expensive one and costs 7316$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 5829$. Doing a quick comparison, we notice that TK01 Matt Grey price is 21.82% higher than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Thok TK01 Matt Grey it’s weighing 24.8 kg (54.67 lbs). At this weight, is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 5.89% less than TK01 Matt Grey.
Overview of components
Fork
The fork installed on this bike is the RockShox Domain model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is ROCK SHOX – DELUXE Select R, with a travel distance of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Thok TK01 Matt Grey 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TK01 Matt Grey comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 199 cm (5.05 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the TK01 Matt Grey. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
