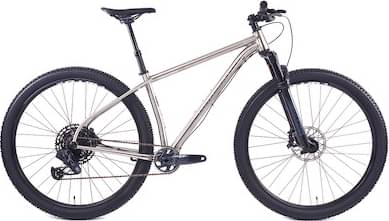

Titus El Viajero SRAM GX AXS 2022
2022 Mountain
Estimate price |
4,063$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Wheels 29" -
Travel Front 110mm -
Fork RockShox SID
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XSM 367mm
157cm - 167cm
SM
162cm - 170cm
MD
168cm - 178cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ti-3Al-2.5V
Suspension Fork
RockShox SID 29" BOOST Fork / 110mm / 15x110mm / Black / Crown
Drivetrain
Crank
SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm BSA 73mm
Chain
SRAM SX Eagle 12 Speed Chain / 126 Link
Chain Guide
N/A
Wheels
Rims
29er / 148 BOOST THRU
Tires
WTB Ranger 29" Wired Tyre / 2.3" / Black
Brakes
Brakes
SRAM Guide G2 R Hydraulic Disc Brake / Front / 900mm / Post mount (20mm bracket) 20P
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Carbon Flat Handlebar / 780mm
Grips
Selcof Knurl Grip / Black
Seat
Saddle
San Marco GND Full-fit Start Up Wide
Seatpost
Selcof Watchtower Dropper Post / 30.9mm / 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XSM 367mm | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.51 mm | 1.42 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 641 mm | 667 mm | 692 mm | 723 mm | 753 mm |
| Rake | 43 mm | 42 mm | 32 mm | 42 mm | 42 mm |
| Trail | 101 mm | 102 mm | 113 mm | 102 mm | 102 mm |
| Stack | 593 mm | 611 mm | 611 mm | 630 mm | 644 mm |
| Reach | 386 mm | 405 mm | 430 mm | 454 mm | 479 mm |
| Top Tube Length | 556 mm | 580 mm | 605 mm | 634 mm | 663 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1075 mm | 1101 mm | 1115 mm | 1157 mm | 1187 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 162 cm | 168 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 170 cm | 178 cm | 188 cm | 198 cm |
About this model
El Viajero SRAM GX AXS belongs to the Titus El Viajero model. 6 bikes variations carry this model name so far. You can easily view all of the Titus El Viajero bikes models from 2022, here.
Model range prices
The most economical model, the Titus El Viajero SRAM GX Titanium 2022 has a starting price of 2675$. Titus El Viajero SRAM X01 AXS 2022 on the other hand is the most expensive at 4499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Titus El Viajero SRAM GX AXS price was 3648$. Comparing this to the average Crosscountry bike price, we see that the price is 91.5% more expensive.
El Viajero SRAM GX AXS components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 110mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the El Viajero SRAM GX AXS model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 157 cm – 198 cm (5.15 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
