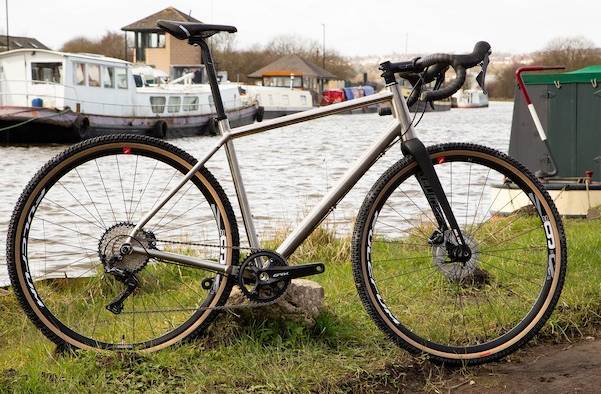

Titus Goldrush Shimano GRX 1x Titanium 2020
2020 Road
Estimate price |
2,979$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Selcof Carbon Gravel+ Fork - 45mm Clearance / Matt Black
Drivetrain
Rear Derailleur
Shimano GRX RX812 Rear Mech (42T Max)
Cassette
Shimano SLX M7000 Cassette / 11-42 Tooth
Crank
Shimano GRX RX810 1x Chainset / 172.5mm / 42 Tooth
Bottom Bracket
Shimano Ultegra SM-BBR60 Bottom Bracket
Chain
Shimano Ultegra HG-701 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Racing 900 Disc 700c Centrelock Wheelset / Front 12mm Thru / Rear 12 x 142mm / Shimano 11 Speed
Tires
Panaracer Comet Hardpack Wire Bead Tyre / 700c / 38mm / Black
Brakes
Brakes
UK Brake Lever Setup Rear Brake Left
Cockpit
Stem
Selcof Zeta V2 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta 6061 Alloy Road Bar / 42cm / Matt Black / 31.8mm Clamp
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta V2 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.55 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm |
| Front Center | 595 mm | 622 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 67 mm | 67 mm |
| Stack | 569 mm | 588 mm | 625 mm |
| Reach | 362 mm | 377 mm | 402 mm |
| Top Tube Length | 522 mm | 547 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1017 mm | 1039 mm | 1077 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 |
About this model
Goldrush Shimano GRX 1x Titanium belongs to the Titus Goldrush model. There are 17 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Titus Goldrush SRAM Rival 1 Titanium 2020 is the cheapest bike model and costs 2188$. Titus Goldrush SRAM Force 1 Titanium 2020 is the most expensive one and costs 2796$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Titus Goldrush Shimano GRX 1x Titanium price was 2675$. Doing a quick comparison, we notice that Goldrush Shimano GRX 1x Titanium price is 8.65% more expensive than the average cost of a Gravel bike.
Overview of components
Fork material
Goldrush Shimano GRX 1x Titanium has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Goldrush Shimano GRX 1x Titanium bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Titus Goldrush Shimano GRX 1x Titanium is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
