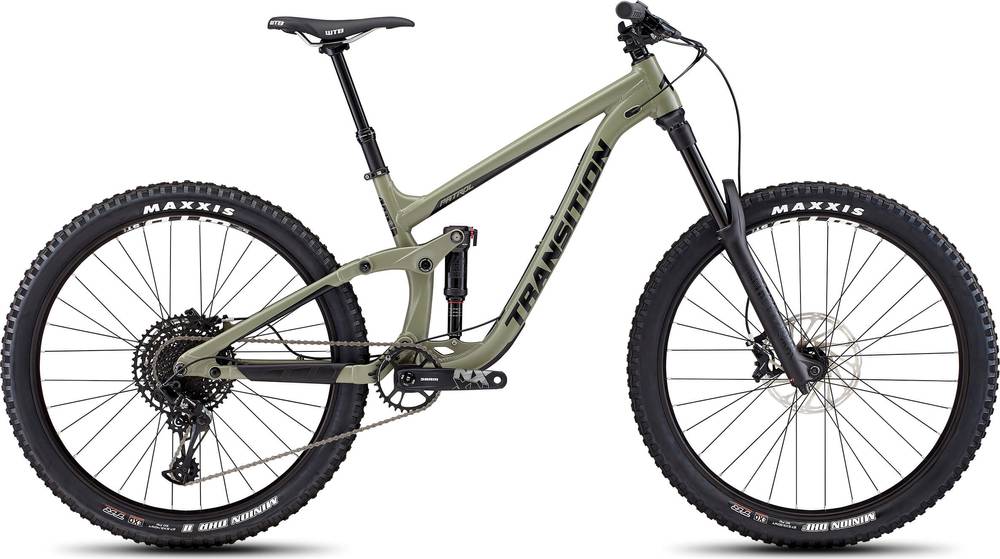

Transition PATROL ALLOY COMPLETE NX 2019
2019 Mountain
Estimate price |
3,199$
Weight | 15.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy 160mm Rear/170mm Front
Suspension Fork
Rockshox Yari RC Charger Damper 170mm
Rear Shock
RockShox Deluxe RT
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM NX Eagle DUB (170mm x 32t)
Chain
SRAM NX Eagle
Wheels
Rims
WTB STi29/Novatech D791SB/D462SB
Tires
Front: Maxxis Minion DHF Dual WT (27.5x2.5), Rear: Maxxis Minion DHRII Dual WT (27.5x2.4)
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline (200/180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, XS (760 x 10mm), SM (780 x 20mm), MD/LG/XL (780 x 35mm)
Grips
Velo VLG-1812D2
Headset
FSA No.57E
Seat
Saddle
WTB Silverado Comp
Seatpost
KS Lev Integra, XS (100mm), SM (125mm), MD (150mm), LG/XL (175mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 724 mm | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Seat Tube Angle | 78.4 ° | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1148 mm | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
PATROL ALLOY COMPLETE NX is part of the Transition Patrol model. Transition released 56 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Transition PATROL ALLOY COMPLETE NX 2019 is the most affordable bike of this model and has a price of 3199$. On the other hand, Transition PATROL CARBON COMPLETE XO1 2019, is the most expensive and costs 5999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 3199$. Comparing this to the average Enduro bike price, we see that the price is 12.5% smaller.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 15.33 kg (33.8 lbs), Transition bike is a bit heavier than average. In other words, this model is 7.43% heavier than the average Enduro bike.
Overview of components
Fork
The PATROL ALLOY COMPLETE NX comes factory-installed with the RockShox Yari RC fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Transition PATROL ALLOY COMPLETE NX bike has the RockShox Deluxe RT model installed, and has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The PATROL ALLOY COMPLETE NX 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PATROL ALLOY COMPLETE NX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 143 cm – 200 cm (4.69 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
