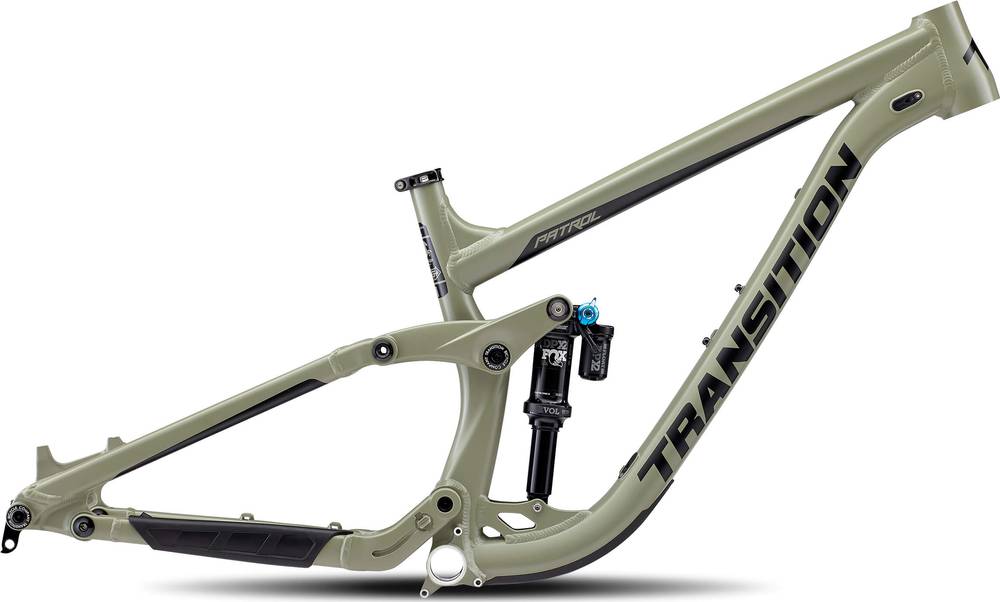

Transition PATROL ALLOY FRAMESET 2019
2019 Mountain
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Rear 160mm -
Suspension Full
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PATROL ALLOY FRAMESET
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 724 mm | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Seat Tube Angle | 78.4 ° | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1148 mm | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
PATROL ALLOY FRAMESET is part of the Transition Patrol model. There are 56 frames that carry this model name. Take a sneak peek at all Transition Patrol frames models from 2019, by clicking here.
Model range prices
Transition PATROL ALLOY FRAMESET 2019 is the most affordable frame of this model and has a price of 1999$. On the other hand, Transition PATROL CARBON FRAMESET 2019, is the most expensive and costs 2999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro frames average price
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 1999$. Comparing this to the average Enduro frame price, we see that the price is 5.49% more expensive.
Overview of components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
PATROL ALLOY FRAMESET comes in 5 sizes, that range from 143 cm – 200 cm (4.69 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
