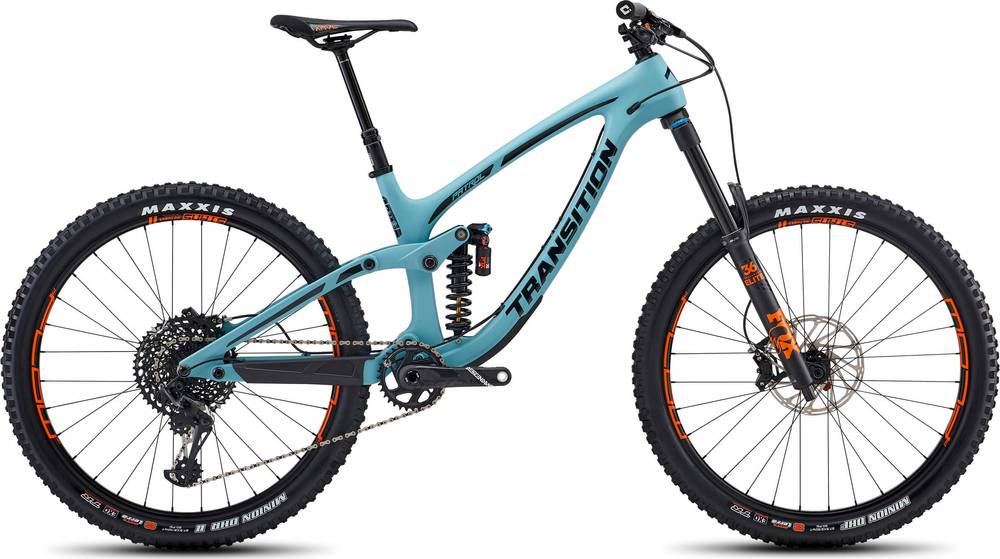

Transition Patrol Alloy Frameset 2020
2020 Mountain
Estimate price |
1,999$
Weight | 4.78 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 27.5" -
Suspension Full
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy Frameset
Rear Shock
RockShox Super Deluxe Coil Ultimate
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 724 mm | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Top Tube Length | 524 mm | 549 mm | 577 mm | 605 mm | 634 mm |
| Seat Tube Angle | 78.4 ° | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1148 mm | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
Patrol Alloy Frameset completes the Transition Patrol model. Transition released 56 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Transition Patrol Alloy Frameset 2020 is the most economical model, with a starting price of 1999$. Transition PATROL COIL CARBON FRAMESET 2020 on the other hand costs 3199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro frames
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
When Transition released this model in 2020, its price was 1999$. Comparing the average cost of an Enduro frame to this one, you will see that Patrol Alloy Frameset price is 5.49% more expensive.
Enduro frames average weight
On a deeper look, we notice that the average weight of an Enduro frame is 3.43 kg (7.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Patrol Alloy Frameset has a weight of 4.78 kg (10.54 lbs). In short, the average Enduro frame weight is 39.36% lower than this one.
Patrol Alloy Frameset components
Sizes
Patrol Alloy Frameset comes in 5 sizes, that range from 143 cm – 200 cm (4.69 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
