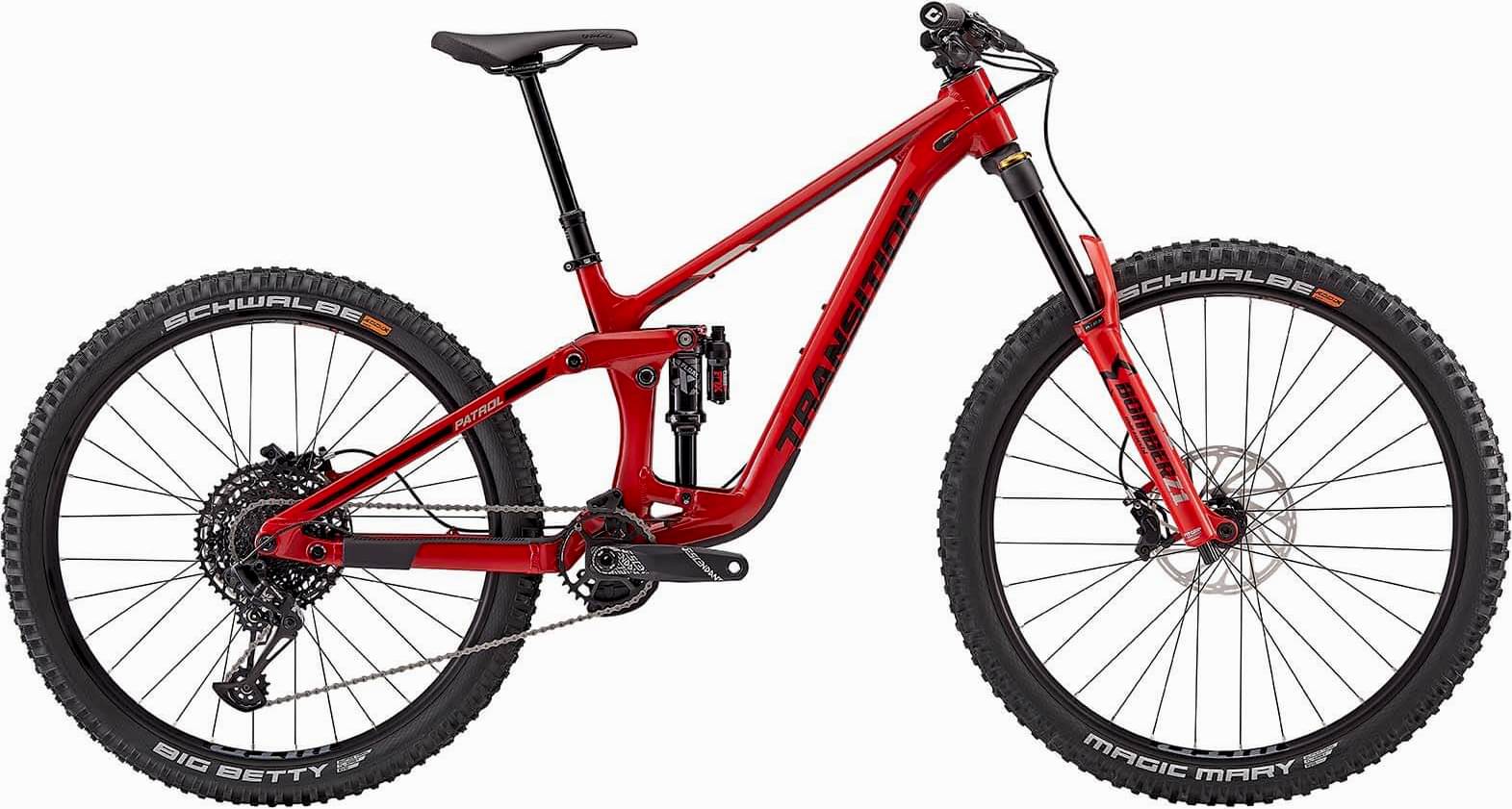

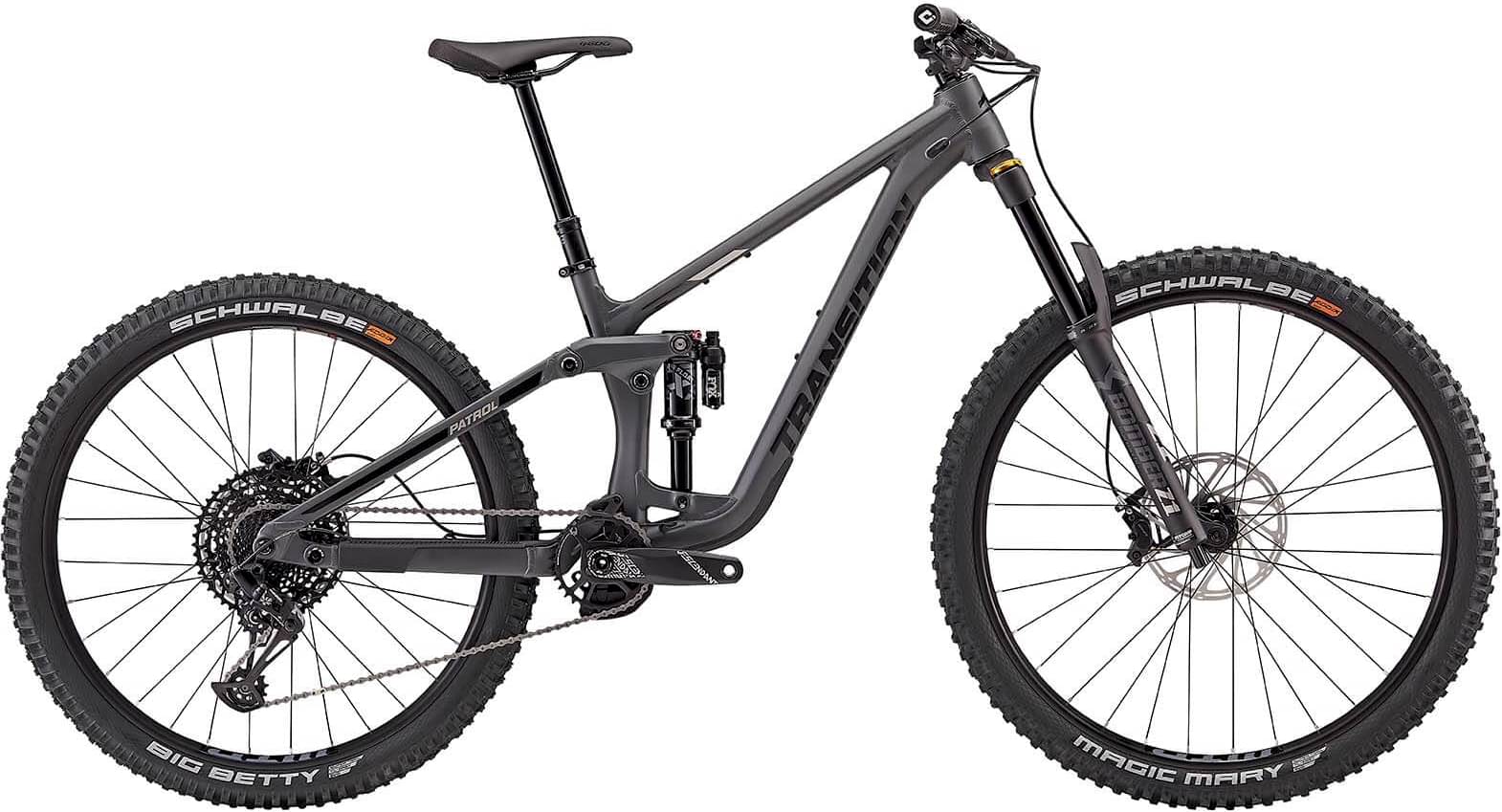

Transition Patrol Alloy NX 2023
2023 Mountain
Estimate price |
4,199$
Weight | 16.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Alloy 160mm
Suspension Fork
Marzocchi Bomber Z1 Air, (160mm)
Rear Shock
Fox Float X Performance, (205x60)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM Descendent 6K DUB, (32t/165mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM NX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Novatec D791SB-B15/D902SB-B12
Rear Hub
Novatec D791SB-B15/D902SB-B12
Rims
WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (2.4)
Brakes
Brakes
SRAM Code R
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM(780x20) MD/LG/XL(780x35)
Grips
ODI Elite Flow
Headset
FSA NO.55R/57
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.37 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm |
| Front Center | 762 mm | 763 mm | 797 mm | 798 mm | 826 mm | 827 mm | 861 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 148 mm | 152 mm | 148 mm | 152 mm | 148 mm | 153 mm | 148 mm | 153 mm |
| Stack | 617 mm | 622 mm | 617 mm | 622 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 414 mm | 409 mm | 449 mm | 444 mm | 474 mm | 469 mm | 504 mm | 499 mm |
| Top Tube Length | 534 mm | 537 mm | 569 mm | 572 mm | 597 mm | 600 mm | 630 mm | 633 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 428 mm | 430 mm | 428 mm | 430 mm | 434 mm | 436 mm | 434 mm | 436 mm |
| Wheelbase | 1190 mm | 1192 mm | 1225 mm | 1227 mm | 1260 mm | 1262 mm | 1295 mm | 1297 mm |
| Bottom Bracket Drop | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm |
| Standover Height | 669 mm | 679 mm | 684 mm | 694 mm | 699 mm | 709 mm | 714 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm |
About this model
Patrol Alloy NX is part of the Transition Patrol model. Transition released 56 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Transition Patrol Alloy NX 2023 is the most economical model, with a starting price of 4199$. Transition Patrol XO Carbon 2023 on the other hand costs 8499$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4199$. Comparing the average cost of an Enduro bike to this one, you will see that Patrol Alloy NX price is 16.67% higher.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Transition Patrol Alloy NX it’s weighing 16.42 kg (36.2 lbs). At this weight, is much heavier than average. In short, the average Enduro bike weight is 15.07% lower than this one.
Patrol Alloy NX components
Fork
This bike has the Marzocchi Bomber Z1 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Transition Patrol Alloy NX bike has the Fox Float X Performance model installed, and has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Patrol Alloy NX are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Patrol Alloy NX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Transition model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
