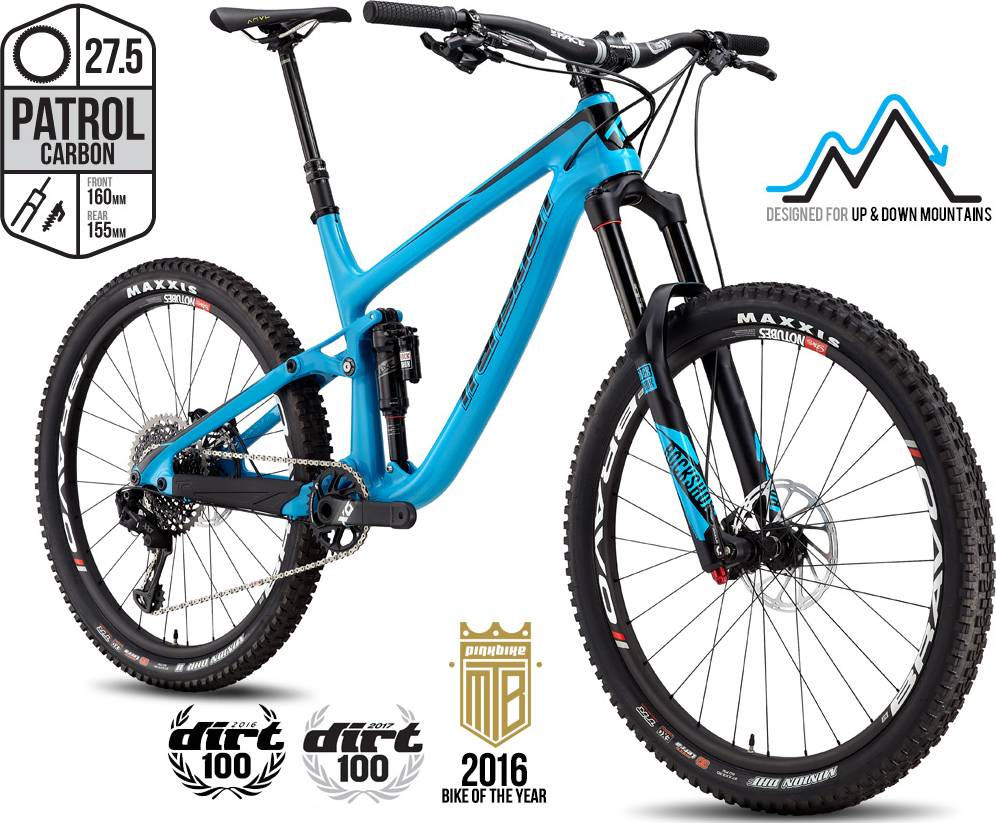

Transition PATROL CARBON Complete Kit 1 2017
2017 Mountain
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork RockShox Lyrik
-
Groupset XX1 Eagle, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Lyrik RCT3 Solo Air 160mm (Color Match Fork Decals Included)
Rear Shock
RockShox Super Deluxe RC3
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM XG1295 Eagle (10-50)
Crank
SRAM XO1 Eagle Carbon (DM34t, 170mm or 175mm)*
Chain
SRAM XO1 Eagle
Wheels
Front Hub
Stans Neo Ultimate
Rear Hub
Stans Neo Ultimate
Rims
Stan's Bravo Carbon 27.5 28h
Tires
Maxxis Minion DHF 27.5x2.3 EXO 3C Front, Maxxis Minion DHR II 27.5x2.3 EXO 3C Rear
Brakes
Brakes
SRAM Guide Ultimate
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Atlas 35 50mm
Handlebar
RaceFace SixC 35 (800mm x 35mm)
Grips
ANVL Rasp
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Stealth Ti
Seatpost
Rockshox Reverb Stealth (170mm, 125mm)*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 721 mm | 751 mm | 780 mm | 810 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 584 mm | 593 mm | 602 mm | 611 mm |
| Reach | 399 mm | 425 mm | 450 mm | 476 mm |
| Top Tube Length | 548 mm | 576 mm | 606 mm | 634 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1144 mm | 1174 mm | 1203 mm | 1233 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 678 mm | 686 mm | 698 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
PATROL CARBON Complete Kit 1 is a Transition Patrol model. There are 56 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Transition PATROL Complete 2017 has a starting price of 3099$. Transition PATROL CARBON Complete Kit 1 2017 on the other hand is the most expensive at 8999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 8999$. If we compare this with the average Enduro bike cost we notice that the price is 150.04% higher.
PATROL CARBON Complete Kit 1 components
Fork
This bike has the RockShox Lyrik fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on PATROL CARBON Complete Kit 1 are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PATROL CARBON Complete Kit 1 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Transition PATROL CARBON Complete Kit 1 bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Transition PATROL CARBON Complete Kit 1 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
