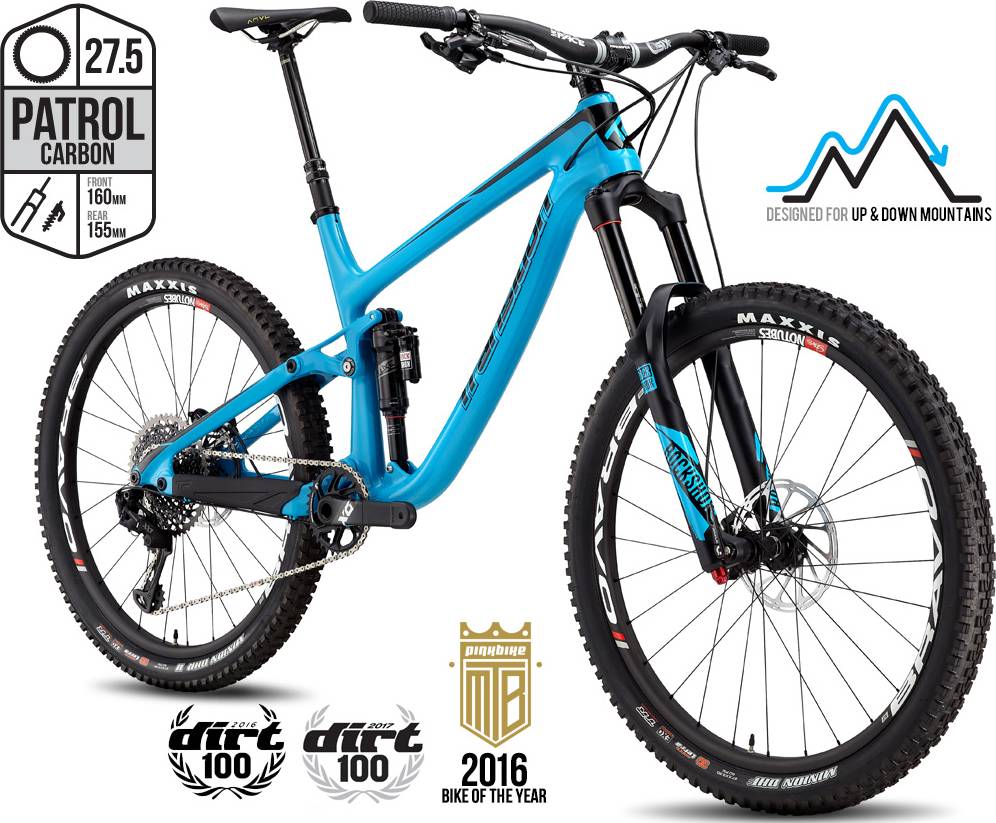

Transition PATROL CARBON Frameset 2017
2017 Mountain
Estimate price |
3,199$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Suspension Full
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Rear Shock
RockShox Super Deluxe RC3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 721 mm | 751 mm | 780 mm | 810 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 584 mm | 593 mm | 602 mm | 611 mm |
| Reach | 399 mm | 425 mm | 450 mm | 476 mm |
| Top Tube Length | 548 mm | 576 mm | 606 mm | 634 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1144 mm | 1174 mm | 1203 mm | 1233 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 678 mm | 686 mm | 698 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
PATROL CARBON Frameset completes the Transition Patrol model. Transition launched 56 frames of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Transition PATROL Frameset 2017 is the most affordable frame of this model and has a price of 1999$. On the other hand, Transition PATROL CARBON Frameset 2017, is the most expensive and costs 3199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro frames average price
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 3199$. If we compare this with the average Enduro frame cost we notice that the price is 68.81% higher.
PATROL CARBON Frameset components
Sizes
PATROL CARBON Frameset comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
