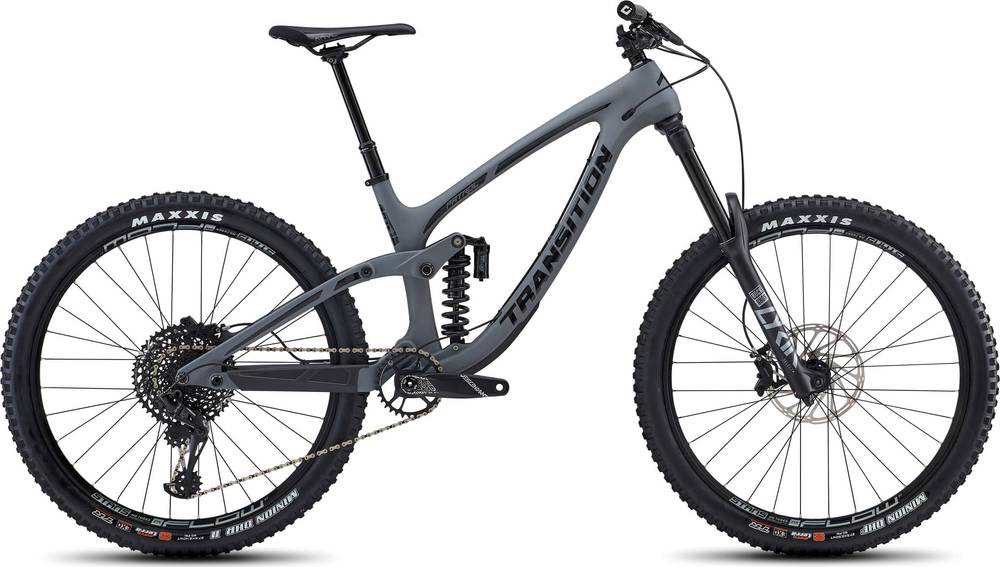

Transition PATROL COIL CARBON COMPLETE GX 2020
2020 Mountain
Estimate price |
4,999$
Weight | 14.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Lyrik Select
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Carbon 160mm Rear/170mm Front
Suspension Fork
RockShox Lyrik Select+ RC 170mm
Rear Shock
RockShox Super Deluxe Coil Select+ RT, SM - 350lb / MD - 400lb / LG - 450lb / XL - 500lb
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Descendent 6K DUB (170mm x 32t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Flow S1 Comp
Tires
Front: Maxxis Minion DHF 3C WT (27.5x2.5), Rear: Maxxis Minion DHRII 3C WT (27.5x2.4)
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline (200/180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM 780 x 20mm), MD/LG/XL (780 x 35mm)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
Bike Yoke Revive, SM (125mm), MD (160mm), LG/XL (185mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 419 mm | 444 mm | 469 mm | 494 mm |
| Top Tube Length | 549 mm | 577 mm | 605 mm | 634 mm |
| Seat Tube Angle | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
PATROL COIL CARBON COMPLETE GX belongs to the Transition Patrol model. 56 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Transition Patrol Alloy NX 2020 has a starting price of 3399$. Transition PATROL COIL CARBON COMPLETE XO1 2020 on the other hand is the most expensive at 6199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 4999$. Comparing the average cost of an Enduro bike to this one, you will see that PATROL COIL CARBON COMPLETE GX price is 38.9% higher.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14.72 kg (32.45 lbs), the PATROL COIL CARBON COMPLETE GX model is slightly heavier than average. In conclusion, the average Enduro bike weighs 3.15% less than PATROL COIL CARBON COMPLETE GX.
Overview of components
Fork
Transition PATROL COIL CARBON COMPLETE GX 2020 bike is equipped with the RockShox Lyrik Select fork, and has 170mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Coil Select+ RT, with a travel distance of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The PATROL COIL CARBON COMPLETE GX 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition PATROL COIL CARBON COMPLETE GX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Transition PATROL COIL CARBON COMPLETE GX includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
