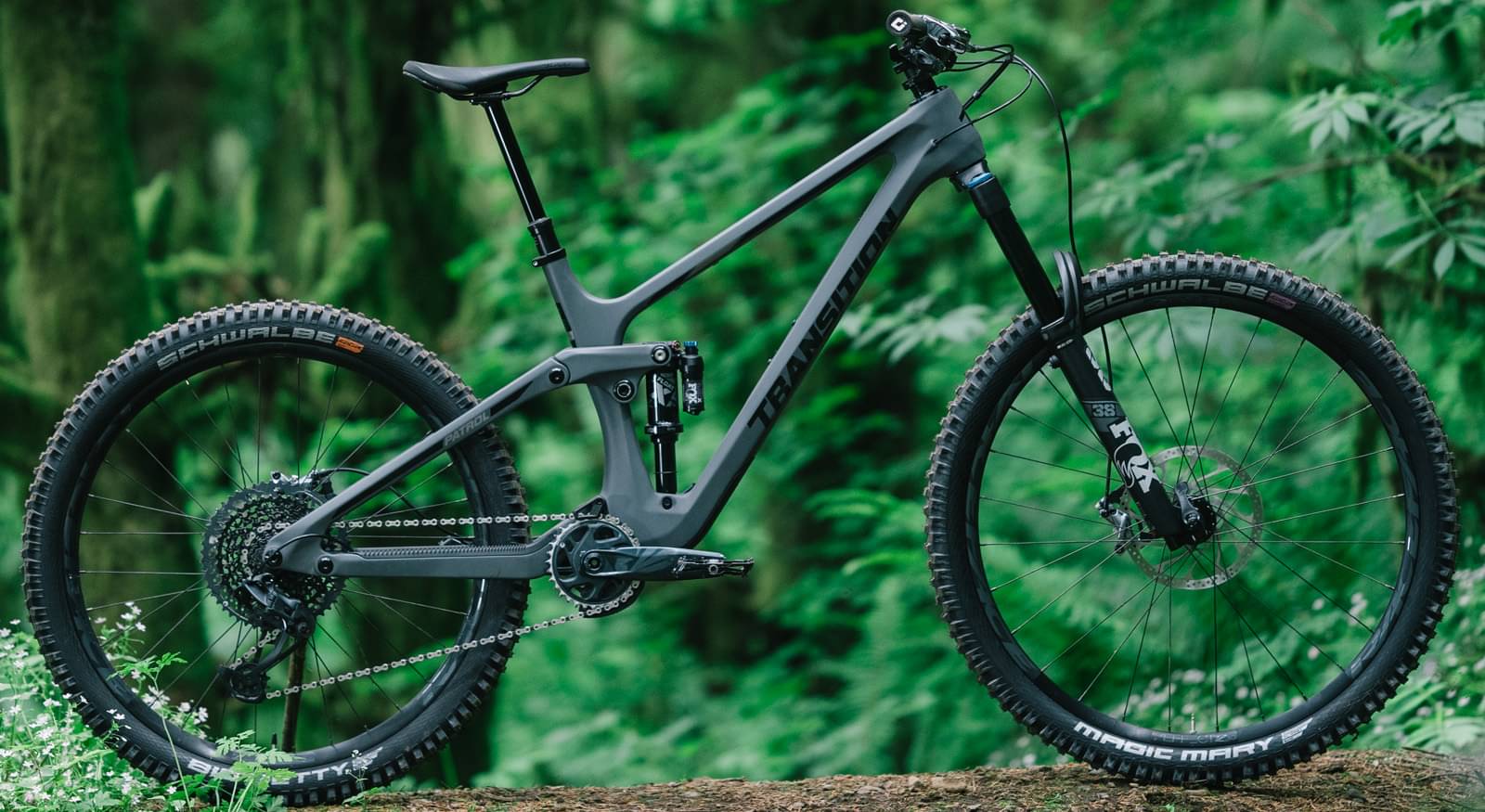

Transition Patrol GX Carbon 2022
2022 Mountain
Estimate price |
6,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Patrol Carbon 160mm
Suspension Fork
Fox Float 38 Performance Elite, 160mm Travel/44mm Offset
Rear Shock
Fox Float X, Performance Elite (205x60)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Eagle DUB (32t/165mm)
Chain
SRAM GX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
RaceFace Trace 28H
Rear Hub
RaceFace Trace 28H
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (29x2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (27.5x2.4)
Brakes
Brakes
TRP DH-R Evo
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM (800x20), MD/LG/XL (800x30)
Grips
ODI Elite Flow
Headset
FSA NO.55R/57
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post
Fit data

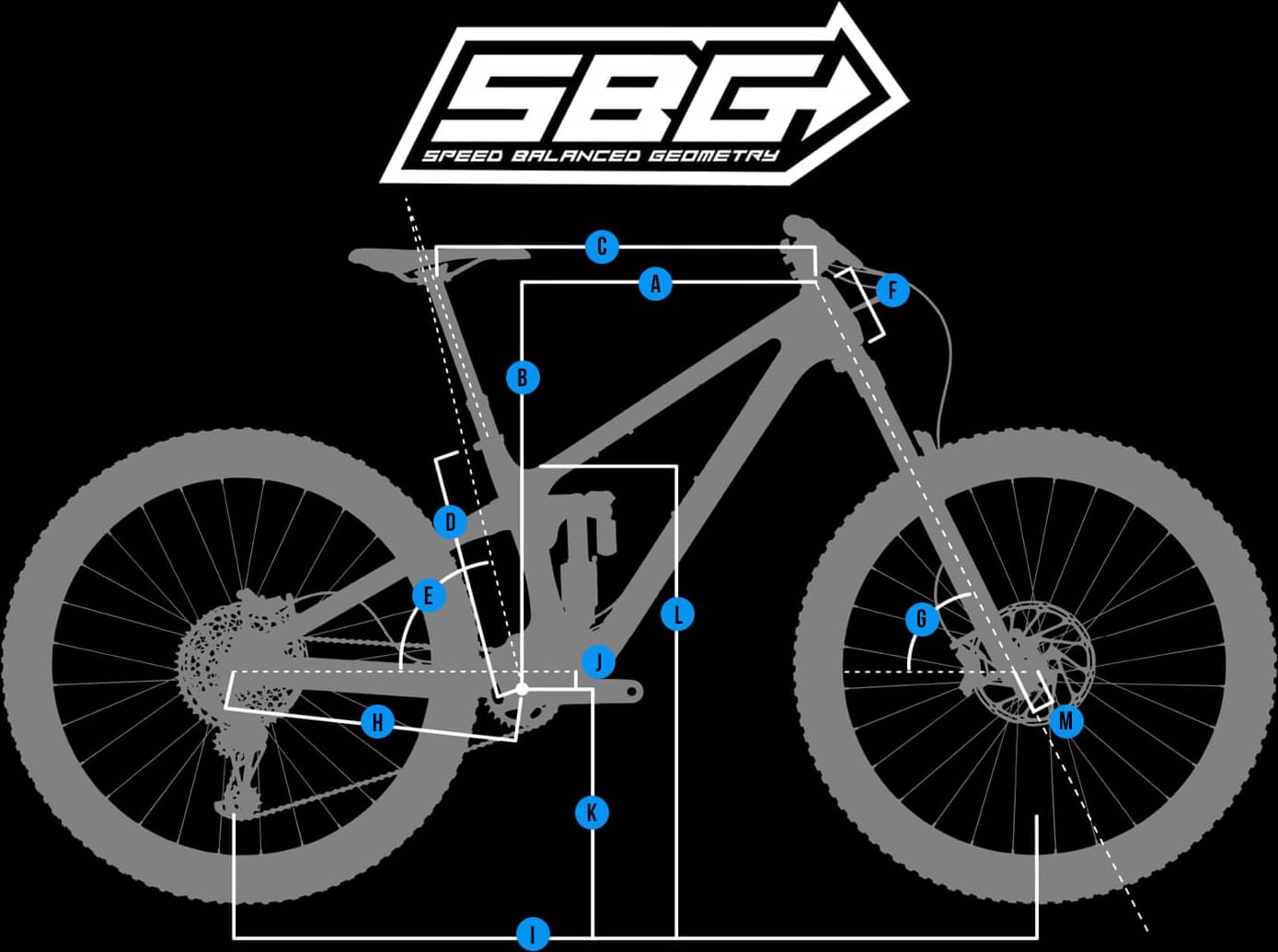

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.37 mm | 1.4 mm | 1.32 mm | 1.35 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm | 340 mm | 333 mm |
| Front Center | 762 mm | 763 mm | 797 mm | 798 mm | 826 mm | 827 mm | 861 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 148 mm | 152 mm | 148 mm | 152 mm | 148 mm | 153 mm | 148 mm | 153 mm |
| Stack | 617 mm | 622 mm | 617 mm | 622 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 414 mm | 409 mm | 449 mm | 444 mm | 474 mm | 469 mm | 504 mm | 499 mm |
| Top Tube Length | 534 mm | 537 mm | 569 mm | 572 mm | 597 mm | 600 mm | 630 mm | 633 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° | 63.5 ° | 63 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 428 mm | 430 mm | 428 mm | 430 mm | 434 mm | 436 mm | 434 mm | 436 mm |
| Wheelbase | 1190 mm | 1192 mm | 1225 mm | 1227 mm | 1260 mm | 1262 mm | 1295 mm | 1297 mm |
| Bottom Bracket Drop | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm | 15 mm | 22 mm |
| Standover Height | 669 mm | 679 mm | 684 mm | 694 mm | 699 mm | 709 mm | 714 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm |
Model Overview
Patrol GX Carbon is a Transition Patrol model. Transition launched 56 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Transition Patrol Deore Alloy 2022 has a starting price of 3799$. Transition Patrol GX Carbon 2022 on the other hand is the most expensive at 6699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6699$. If we compare this with the average Enduro bike cost we notice that the price is 86.14% more expensive.
Patrol GX Carbon components
Fork
Transition Patrol GX Carbon 2022 bike is equipped with the Fox Performance Elite Float 38 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float X rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Patrol GX Carbon 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Patrol GX Carbon has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Patrol GX Carbon comes in 8 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Transition Patrol GX Carbon includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
