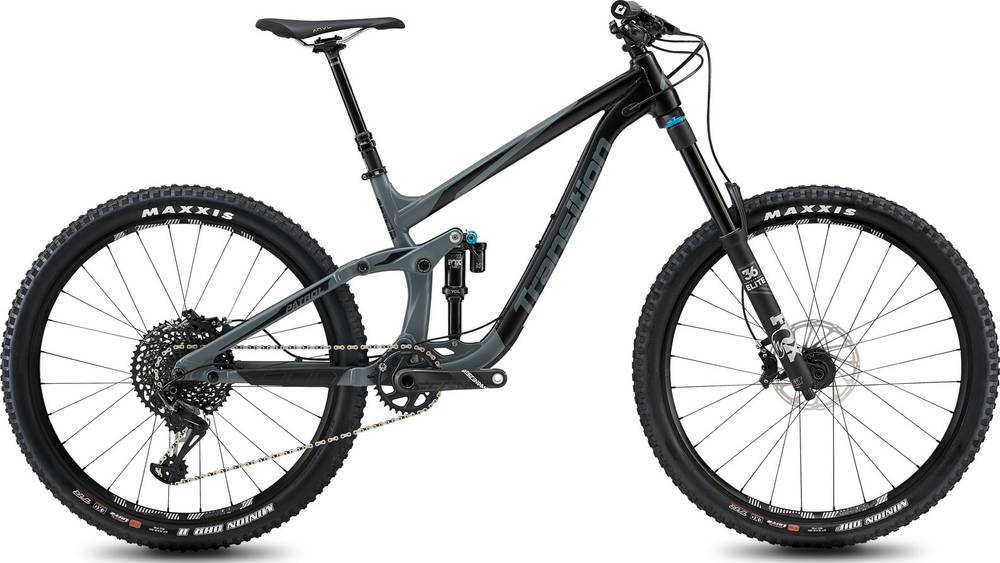

Transition PATROL XO1 2018
2018 Mountain
Estimate price |
4,999$
Weight | 14.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 170mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 Float RC2 Performance Elite 170mm
Rear Shock
Fox DPX2 Performance Elite
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Front Derailleur
No Support
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Descendent Carbon (32t, 170mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle
Wheels
Front Hub
E*Thirteen TRS+
Rear Hub
E*Thirteen TRS+
Rims
E*Thirteen TRS+ 30mm
Tires
Maxxis Minion DHF / DHR II 2.3 EXO 3C
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Turbine R 35 (40mm)
Handlebar
RaceFace Turbine R 35 (800mm x 35mm)
Grips
ODI Elite Flow
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Stealth Cromo
Seatpost
RockShox Reverb Stealth 1x Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 724 mm | 749 mm | 779 mm | 808 mm | 838 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 590 mm | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Top Tube Length | 524 mm | 549 mm | 577 mm | 605 mm | 634 mm |
| Seat Tube Angle | 78.4 ° | 77.8 ° | 77.1 ° | 76.6 ° | 76.1 ° |
| Seat Tube Length | 360 mm | 360 mm | 400 mm | 440 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1148 mm | 1173 mm | 1203 mm | 1232 mm | 1262 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 674 mm | 679 mm | 689 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
PATROL XO1 is part of the Transition Patrol model. Transition released 56 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Transition PATROL NX 2018 is the most affordable bike of this model and has a price of 2999$. On the other hand, Transition PATROL XO1 2018, is the most expensive and costs 4999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Transition released this model in 2018, its price was 4999$. If we compare this with the average Enduro bike cost we notice that the price is 38.9% more expensive.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.42 kg (31.79 lbs), Transition bike is slightly heavier than average. In short, the average Enduro bike weight is 1.05% lower than this one.
PATROL XO1 components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on PATROL XO1 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition PATROL XO1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 143 cm – 200 cm (4.69 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the PATROL XO1. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
