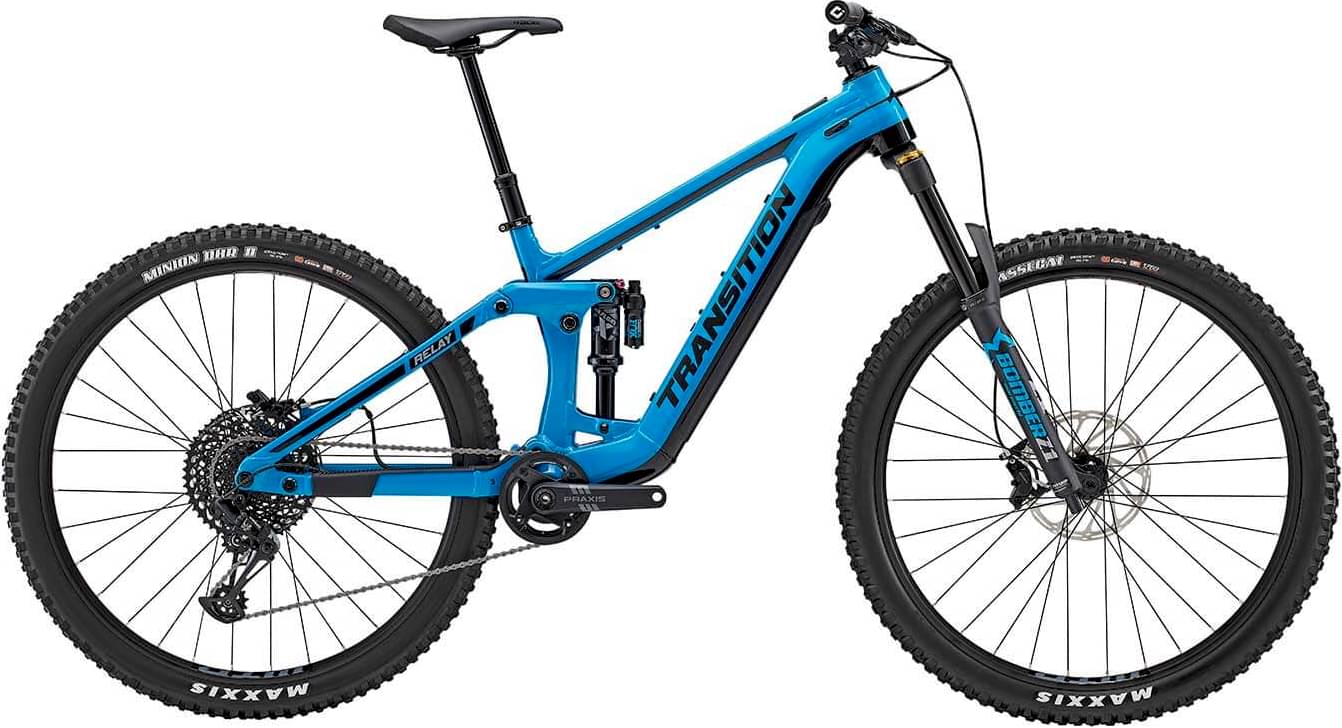

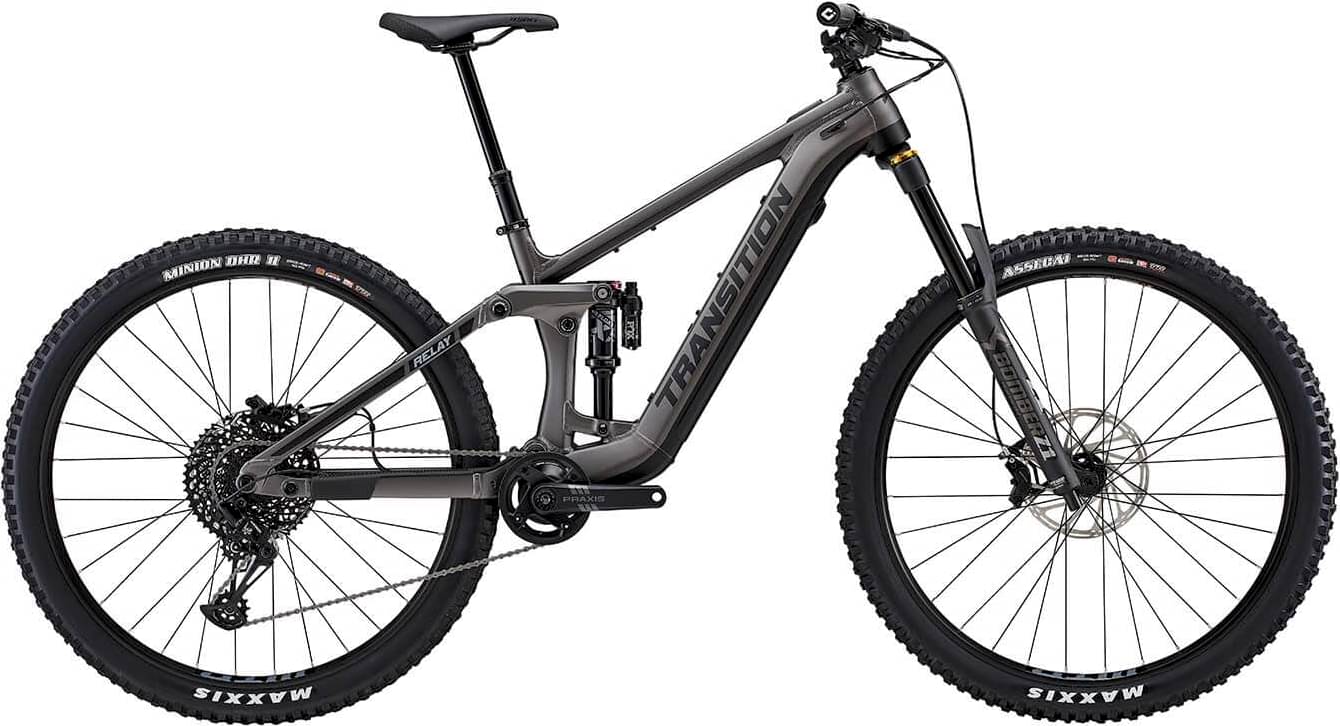

Transition Relay Alloy NX 2023
2023 E-bike
Estimate price |
6,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Marzocchi Bomber Z1
-
Groupset NX Eagle, Praxis -
Suspension Full -
Motor Fazua mid-drive -
Battery Fazua Energy 430 Take Out -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Relay Alloy 160mm
Suspension Fork
Marzocchi Z1 Air, (160mm)
Rear Shock
Fox Float X Performance, (205x60mm)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle Single Click
Cassette
SRAM XG 1275 (10-50t)
Crank
Praxis Alloy ETOR, (165mm, X-Small 160mm)
Bottom Bracket
Fazua Ride 60 System
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatec D791SB-B15/D902SB-B12
Rear Hub
Novatec D791SB-B15/D902SB-B12
Rims
WTB i30
Spokes
Pillar Spokes
Tires
Front: Maxxis Assegai 3C EXO+ 2.5, Rear: Maxxis Minion DHRII 3C EXO+ 2.4
Brakes
Brakes
SRAM Code R
Cockpit
Stem
RaceFace Aefect R (40mm)
Handlebar
RaceFace Chester 35, XS/SM(780x20) MD/LG/XL/XXL(780x35)
Grips
ODI Elite Flow Lock-On
Headset
FSA No.55R
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post, XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Motor & Battery
Motor
Fazua Ride 60
Battery
Fazua Energy 430 Take Out
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.37 mm | 1.32 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 731 mm | 767 mm | 803 mm | 833 mm | 862 mm | 891 mm |
| Rake | 34 mm | 42 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 588 mm | 613 mm | 621 mm | 630 mm | 639 mm | 648 mm |
| Reach | 403 mm | 423 mm | 453 mm | 478 mm | 503 mm | 528 mm |
| Top Tube Length | 516 mm | 546 mm | 579 mm | 607 mm | 635 mm | 664 mm |
| Seat Tube Angle | 79.7 ° | 79.1 ° | 78.4 ° | 77.8 ° | 77.3 ° | 77 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 429 mm | 435 mm | 435 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1160 mm | 1201 mm | 1237 mm | 1273 mm | 1302 mm | 1331 mm |
| Bottom Bracket Drop | 15 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Relay Alloy NX belongs to the Transition E Relay model. 6 e-bikes variations carry this model name so far. Take a sneak peek at all Transition E Relay e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Transition Relay Alloy NX 2023 has a starting price of 6799$. Transition Relay Carbon XX AXS 2023 on the other hand is the most expensive at 12499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 6799$. Doing a quick comparison, we notice that Relay Alloy NX price is 42.09% more expensive than the average cost of an Enduro e-bike.
Relay Alloy NX components
Fork
The fork installed on this bike is the Marzocchi Bomber Z1 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Transition Relay Alloy NX e-bike has the Fox Float X Performance model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Relay Alloy NX e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Relay Alloy NX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Transition Relay Alloy NX e-bike has 6 sizes, in the range of 143 cm – 207 cm (4.69 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Transition Relay Alloy NX includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
