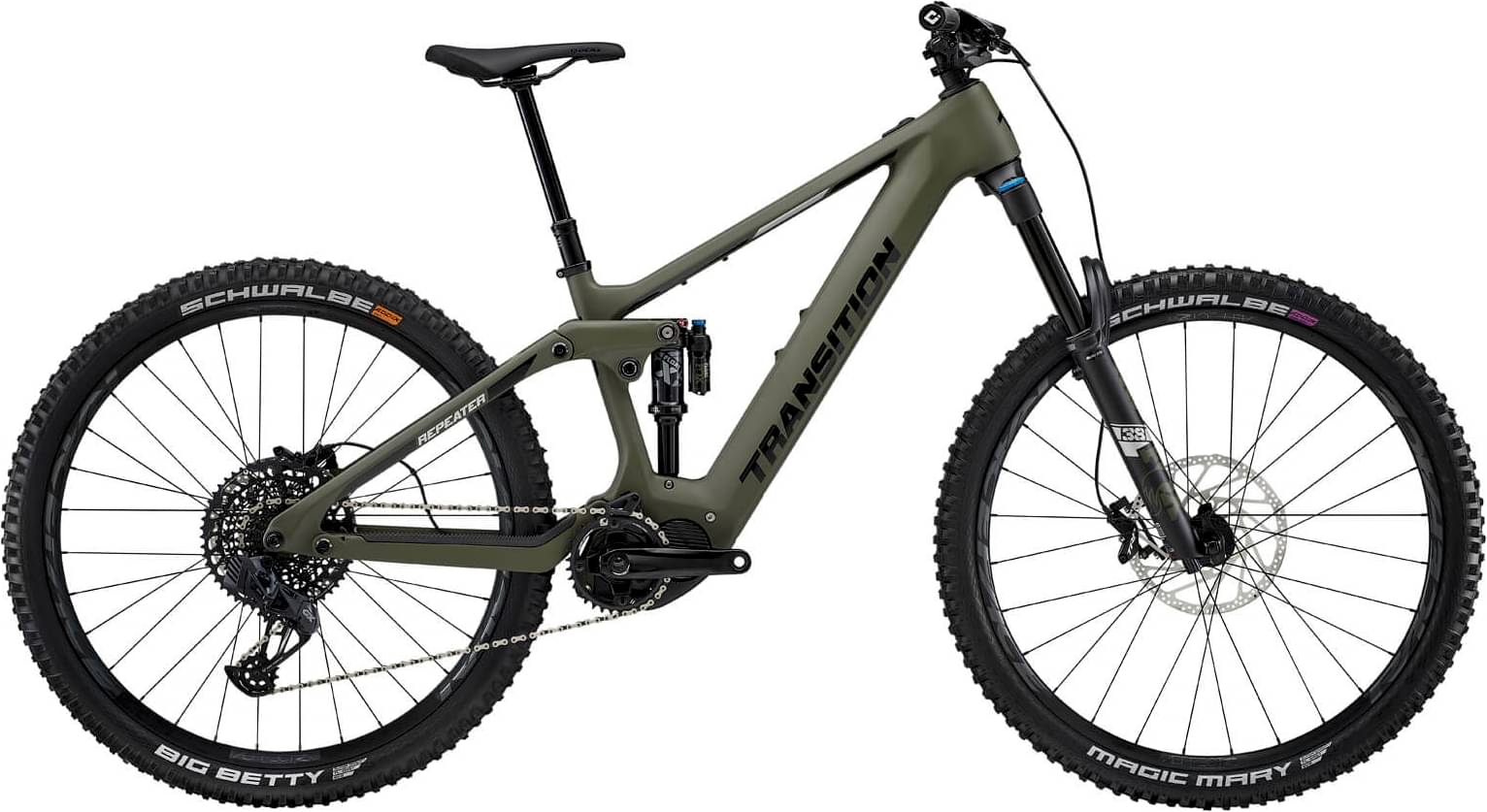

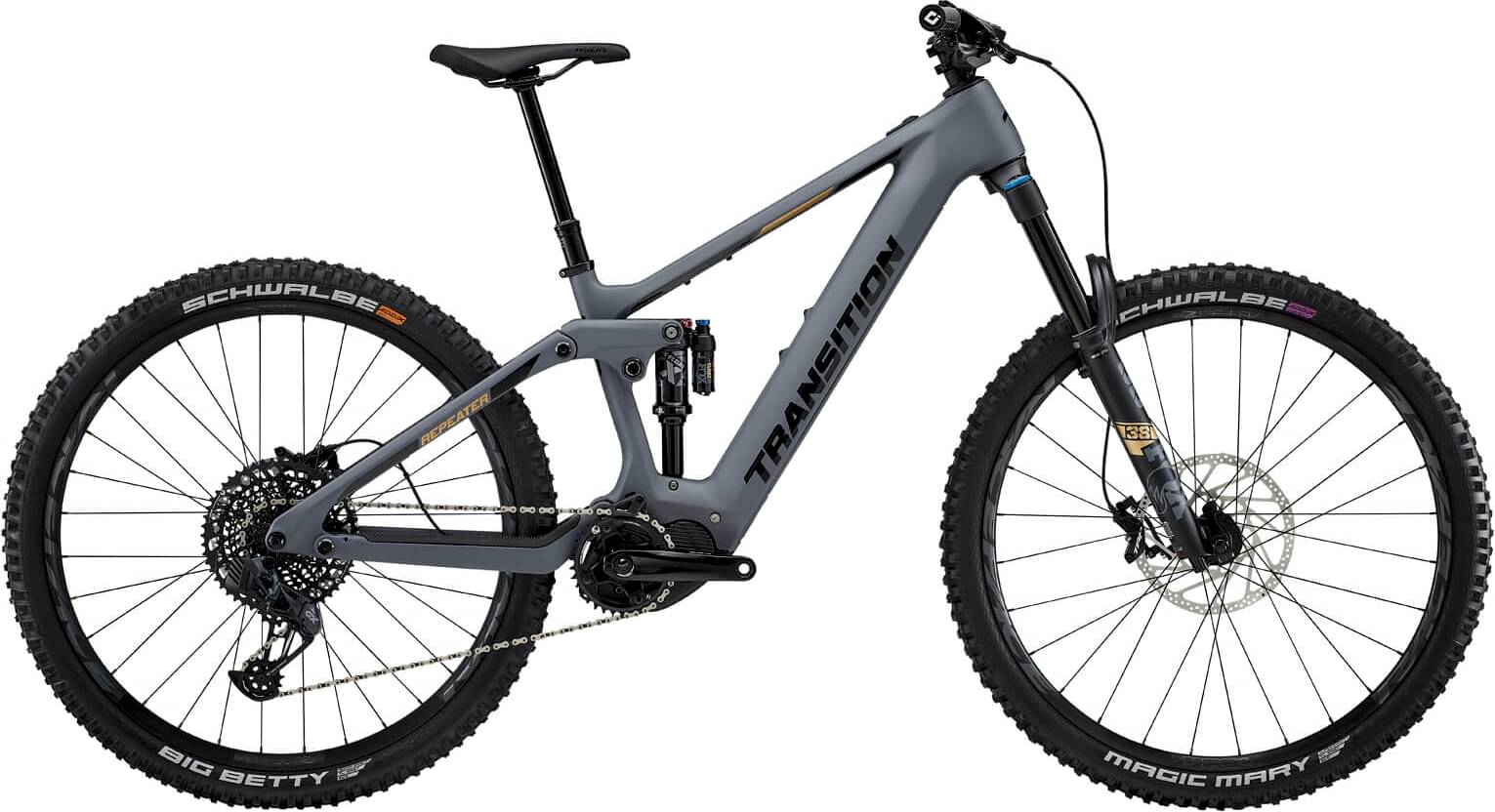

Transition Repeater GX AXS 2023
2023 E-bike
Estimate price |
8,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle AXS, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 (630Wh) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Repeater Carbon 160mm
Suspension Fork
Fox Float 38 Performance Elite, (160mm, 1.5 Taper)
Rear Shock
Fox Float X Performance Elite, (205x65mm)
Drivetrain
Rear Derailleur
SRAM GX AXS
Shift Levers
SRAM GX AXS (Rocker Paddle)
Cassette
SRAM XG 1275 (10-52t)
Crank
Shimano EM900 (160mm)
Chain
SRAM GX Eagle
Chain Guide
OneUp STEPS
Wheels
Front Hub
RaceFace Trace 28h
Rear Hub
RaceFace Trace 28h
Rims
RaceFace Aeffect R E-Bike
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (2.4), Rear: Schwalbe Big Betty, Super Gravity, Soft (2.4)
Brakes
Brakes
TRP DH-R EVO
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy, SM(800x20) MD/LG(800x30) XL(800x40)
Grips
ODI Elite Flow Lock-On
Headset
Acros ICR Alloy
Seat
Saddle
SDG Bel Air V3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL(210mm)
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano BT-E8036 (630Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 768 mm | 798 mm | 827 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 623 mm | 623 mm | 632 mm | 641 mm |
| Reach | 417 mm | 447 mm | 472 mm | 502 mm |
| Top Tube Length | 551 mm | 581 mm | 609 mm | 642 mm |
| Seat Tube Angle | 78.4 ° | 77.9 ° | 77.4 ° | 77.1 ° |
| Seat Tube Length | 375 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1213 mm | 1243 mm | 1272 mm | 1307 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 697 mm | 707 mm | 712 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Repeater GX AXS is a Transition E Repeater model. There are 8 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Transition Repeater NX 2023 has a starting price of 8199$. Transition Repeater AXS 2023 on the other hand is the most expensive at 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 8999$. If we compare this with the average Enduro e-bike cost we notice that the price is 88.07% higher.
Repeater GX AXS components
Fork
The fork installed on this bike is the Fox Performance Elite Float 38 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Transition Repeater GX AXS e-bike has the Fox Float X Performance Elite model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Repeater GX AXS model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Repeater GX AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
