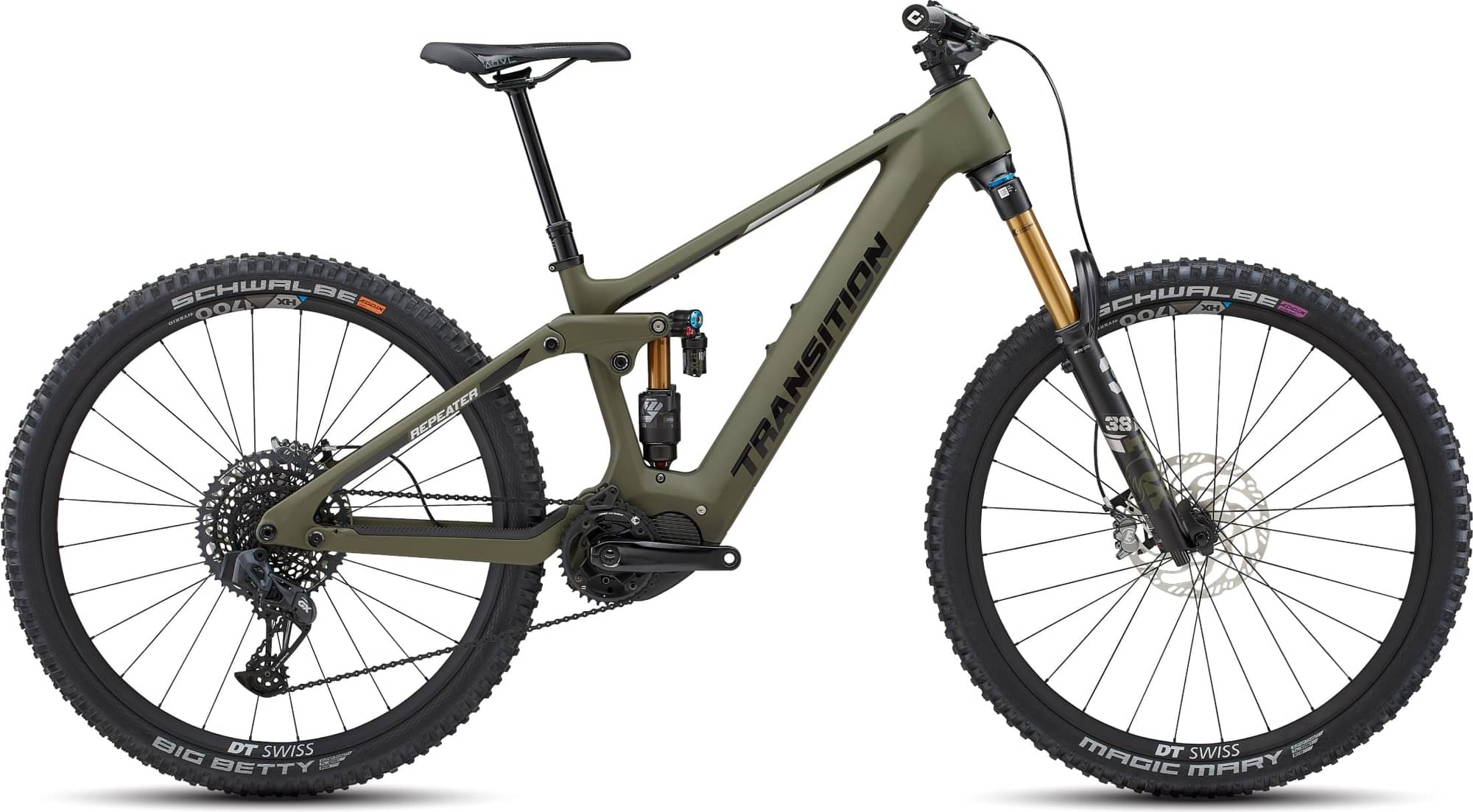

Transition Repeater NX 2022
2022 E-bike
Estimate price |
8,199$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset NX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 (630Wh) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Repeater Carbon 160mm
Suspension Fork
RockShox ZEB R, 160mm, 44mm Offset, 1.8 taper
Rear Shock
Fox Float X Performance, (205x65mm)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle Single Click
Cassette
SRAM PG 1230 (10-50t)
Crank
Shimano EM600, (34t/160mm)
Chain
SRAM NX Eagle
Chain Guide
OneUp STEPS
Wheels
Front Hub
Novatec D791SB-B15/D902SB-B12
Rear Hub
Novatec D791SB-B15/D902SB-B12
Rims
Stans Flow D
Spokes
Pillar 2.0mm Straight Gauge
Tires
Front: Schwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4), Rear: Schwalbe Big Betty, Super Gravity, Soft (29x2.4)
Brakes
Brakes
Magura MT5 w/ HC1 Levers
Disk Rotors
Magura MDR-C (203mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
Raceface Chester Alloy, SM/MD (780x20) LG/XL (780x35)
Grips
ODI Elite Flow Lock-On
Headset
Acros ICR
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post, SM (150mm), MD (180mm), LG/XL (210mm)
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano BT-E8036 (630Wh)
Remote
Shimano SC-EM800
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 768 mm | 798 mm | 827 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 623 mm | 623 mm | 632 mm | 641 mm |
| Reach | 417 mm | 447 mm | 472 mm | 502 mm |
| Top Tube Length | 551 mm | 581 mm | 609 mm | 642 mm |
| Seat Tube Angle | 78.4 ° | 77.9 ° | 77.4 ° | 77.1 ° |
| Seat Tube Length | 375 mm | 400 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1213 mm | 1243 mm | 1272 mm | 1307 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 697 mm | 707 mm | 712 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Repeater NX belongs to the Transition E Repeater model. There are 8 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Transition Repeater NX 2022 is the most affordable e-bike of this model and has a price of 8199$. On the other hand, Transition Repeater AXS 2022, is the most expensive and costs 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 8199$. Comparing the average cost of an Enduro e-bike to this one, you will see that Repeater NX price is 71.35% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Repeater NX has a weight of 23.1 kg (50.93 lbs). In other words, this model is 1.39% lighter than the average Enduro e-bike.
Repeater NX components
Fork
Transition Repeater NX 2022 e-bike is equipped with the RockShox ZEB fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Transition Repeater NX e-bike has the Fox Float X Performance model installed, and has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Repeater NX e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Repeater NX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
