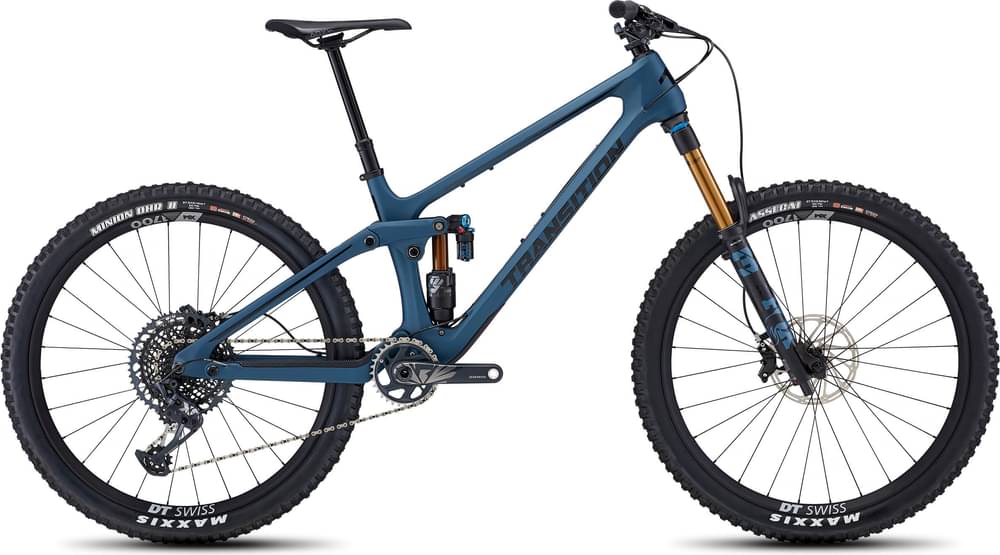

Transition Scout Carbon Frameset 2021
2021 Mountain
Estimate price |
3,399$
Weight | 3.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 140mm -
Suspension Full
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scout Carbon Frameset
Rear Shock
Fox Float X2 Factory 2 Position
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm | 1.24 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 724 mm | 756 mm | 788 mm | 819 mm | 851 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 578 mm | 591 mm | 605 mm | 618 mm | 632 mm |
| Reach | 411 mm | 436 mm | 461 mm | 486 mm | 511 mm |
| Top Tube Length | 535 mm | 565 mm | 594 mm | 624 mm | 653 mm |
| Seat Tube Angle | 78.2 ° | 77.7 ° | 77.2 ° | 76.8 ° | 76.4 ° |
| Seat Tube Length | 350 mm | 360 mm | 390 mm | 430 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1154 mm | 1186 mm | 1218 mm | 1249 mm | 1281 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 666 mm | 674 mm | 687 mm | 699 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Scout Carbon Frameset completes the Transition Scout model. There are 40 frames that carry this model name. Take a sneak peek at all Transition Scout frames models from 2021, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail frames average price
If you want to purchase a solid Trail frame, it is important to know that the average cost is 1736$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3399$. Comparing the average cost of a Trail frame to this one, you will see that Scout Carbon Frameset price is 95.79% higher.
Average weight for Trail frames
The average weight for Trail frames is 2.93 kg (6.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Scout Carbon Frameset weighs 3.2 kg (7.05 lbs) and is a bit heavier than the average. In short, the average Trail frame weight is 9.22% lower than this one.
Overview of components
Rear Shock
From the factory, it comes with the Fox Float X2 Factory 2 Position rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 143 cm – 200 cm (4.69 ft – 6.56 ft). In short, you can easily find one that suits you.
