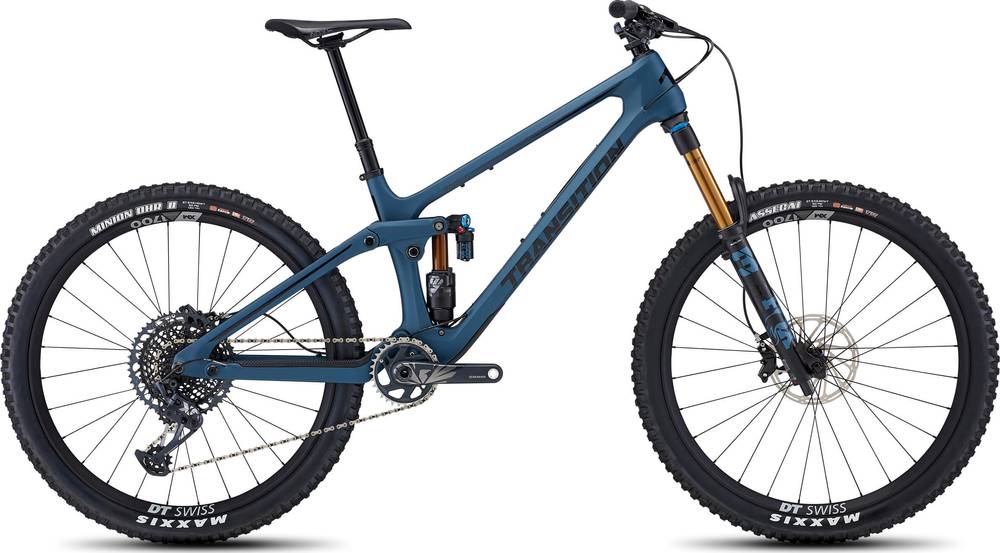

Transition Scout Carbon GX 2020
2020 Mountain
Estimate price |
5,499$
Weight | 14.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scout Carbon 140mm
Suspension Fork
RockShox Lyrik Ultimate, 150mm Travel/37mm Offset
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM Stylo 7K DUB (XS 32t/165mm, SM-XL 32t/170mm)
Chain
SRAM GX Eagle
Wheels
Front Hub
Stans Neo Durasync
Rear Hub
Stans Neo Durasync
Rims
Stans Flow S1
Spokes
Sapim Race Double Butted
Tires
Front: Maxxis Assegai 3C EXO+ (27.5x2.5), Rear: Maxxis Minion DHRII 3C EXO+ (27.5x2.4)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, XS/SM (800x20), MD/LG (800x30), XL (800x40)
Grips
Sensus Lite
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post, XS (120mm), SM (150mm), MD (180mm), LG/XL (210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm | 1.24 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 724 mm | 756 mm | 788 mm | 819 mm | 851 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 578 mm | 591 mm | 605 mm | 618 mm | 632 mm |
| Reach | 411 mm | 436 mm | 461 mm | 486 mm | 511 mm |
| Top Tube Length | 535 mm | 565 mm | 594 mm | 624 mm | 653 mm |
| Seat Tube Angle | 78.2 ° | 77.7 ° | 77.2 ° | 76.8 ° | 76.4 ° |
| Seat Tube Length | 350 mm | 360 mm | 390 mm | 430 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1154 mm | 1186 mm | 1218 mm | 1249 mm | 1281 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 666 mm | 674 mm | 687 mm | 699 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Scout Carbon GX is part of the Transition Scout model. There are 40 bikes that carry this model name. You can easily view all of the Transition Scout bikes models from 2020, here.
Model range prices
Transition Scout Carbon NX 2020 is the most economical model, with a starting price of 4499$. Transition Scout Carbon XO1 2020 on the other hand costs 6699$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 5499$. Comparing the average cost of a Trail bike to this one, you will see that Scout Carbon GX price is 99.09% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14.06 kg (31 lbs), Transition bike is a bit heavier than average. In short, the average Trail bike weight is 8.32% lower than this one.
Overview of components
Fork
Transition Scout Carbon GX 2020 bike is equipped with the RockShox Lyrik Ultimate fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe Ultimate model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Scout Carbon GX model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Scout Carbon GX has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Transition Scout Carbon GX bike has 5 sizes, in the range of 143 cm – 200 cm (4.69 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Transition Scout Carbon GX includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
