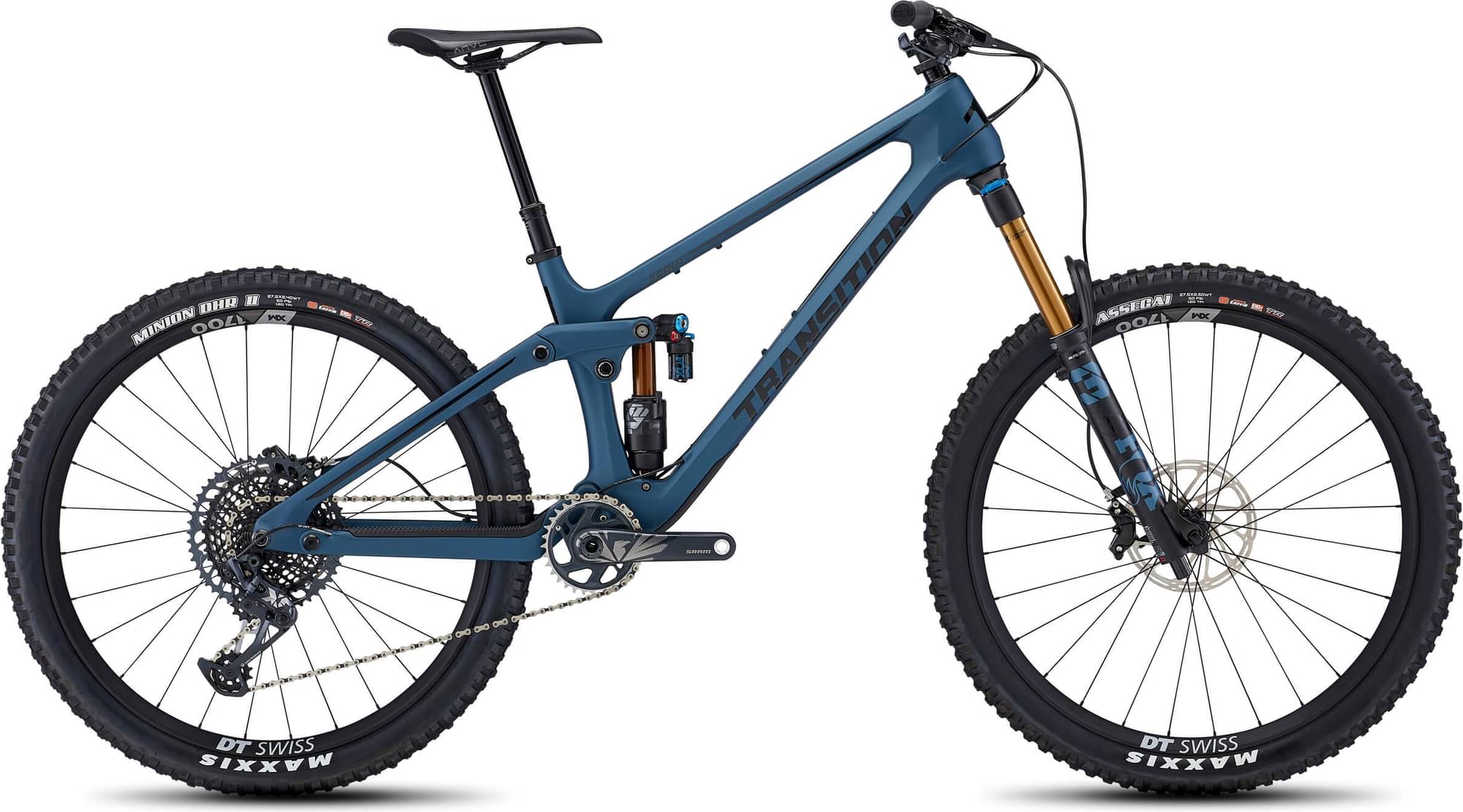

Transition Scout Carbon XO1 2022
2022 Mountain
Estimate price |
7,199$
Weight | 13.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 160cm
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scout Carbon 140mm
Suspension Fork
Fox Float 36 Grip 2 Factory, 150mm Travel/37mm Offset
Rear Shock
Fox Float X2 Factory 2 Position
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM XG 1295 (10-52t)
Crank
SRAM X1 Carbon DUB (XS 30t-165mm/SM,MD,LG,XL 30t-170mm)
Chain
SRAM GX Eagle
Wheels
Front Hub
DT Swiss 350 Straight Pull 36SL
Rear Hub
DT Swiss 350 Straight Pull 36SL
Rims
DT Swiss XM 1700 Spline 30
Spokes
DT Swiss Competition
Tires
Front: Maxxis Assegai 3C EXO+ (27.5x2.5), Rear: Maxxis Minion DHRII 3C EXO+ (27.5x2.4)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
OneUp Carbon Bar, XS/SM (800x20), MDLG/XL (800x35)
Grips
Sensus Lite
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Ti
Seatpost
OneUp Dropper Post, XS (120mm), SM (150mm), MD (180mm), LG/XL (210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm | 1.24 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 724 mm | 756 mm | 788 mm | 819 mm | 851 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 578 mm | 591 mm | 605 mm | 618 mm | 632 mm |
| Reach | 411 mm | 436 mm | 461 mm | 486 mm | 511 mm |
| Top Tube Length | 535 mm | 565 mm | 594 mm | 624 mm | 653 mm |
| Seat Tube Angle | 78.2 ° | 77.7 ° | 77.2 ° | 76.8 ° | 76.4 ° |
| Seat Tube Length | 350 mm | 360 mm | 390 mm | 430 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1154 mm | 1186 mm | 1218 mm | 1249 mm | 1281 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 666 mm | 666 mm | 674 mm | 687 mm | 699 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 160 cm | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Scout Carbon XO1 belongs to the Transition Scout model. There are 40 bikes that carry this model name. You can easily view all of the Transition Scout bikes models from 2022, here.
Model range prices
The most economical model, the Transition Scout Alloy NX 2022 has a starting price of 3899$. Transition Scout Carbon XO1 2022 on the other hand is the most expensive at 7199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Transition released this model in 2022, its price was 7199$. Doing a quick comparison, we notice that Scout Carbon XO1 price is 160.64% more expensive than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Transition Scout Carbon XO1 it’s weighing 13.79 kg (30.4 lbs). At this weight, is a bit heavier than average. To sum up, it’s 6.24% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float X2 Factory 2 Position, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Scout Carbon XO1 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Scout Carbon XO1 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Scout Carbon XO1 comes in 5 sizes, that range from 143 cm – 200 cm (4.69 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Scout Carbon XO1. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
