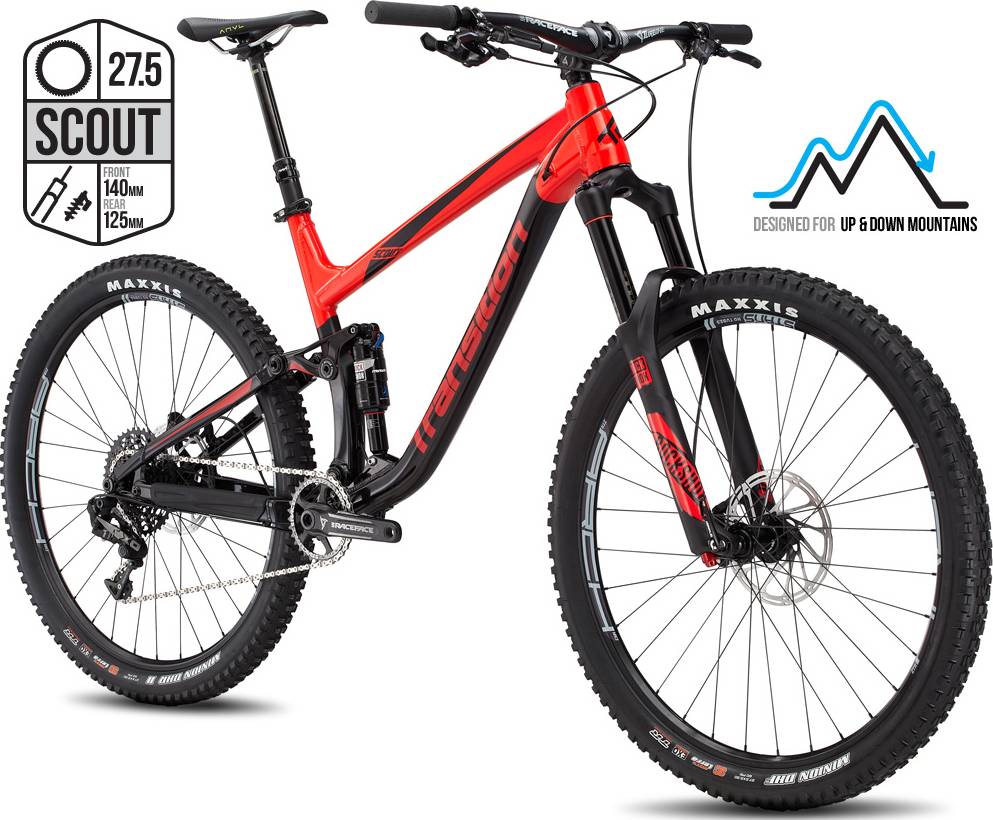

Transition SCOUT Complete Kit 3 2017
2017 Mountain
Estimate price |
3,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike RC
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike RC Solo Air 140mm (Color Match Fork Decals Included)
Rear Shock
RockShox Monarch RT3 Debonair
Drivetrain
Rear Derailleur
SRAM GX
Shift Levers
SRAM GX
Cassette
SRAM XG1150 (10-42)
Crank
RaceFace Aeffect Cinch (DM32t, 170mm or 175mm)**
Chain
SRAM PC1130
Wheels
Front Hub
SRAM MTH 716/746
Rear Hub
SRAM MTH 716/746
Rims
RaceFace AR 27mm 27.5 32h
Tires
Maxxis Minion DHF 27.5x2.3 EXO Dual Front, Maxxis Minion DHR II 27.5x2.3 EXO Dual Rear
Brakes
Brakes
SRAM Guide R
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect 35 50mm
Handlebar
RaceFace Ride 35 (760mm x 20mm)
Grips
Velo Single Clamp
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Stealth CroMo
Seatpost
KS Lev Integra w/ Southpaw Remote (150mm, 125mm or 100mm)**
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.39 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 693 mm | 723 mm | 752 mm | 781 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 105 mm | 105 mm | 105 mm | 106 mm |
| Stack | 581 mm | 590 mm | 599 mm | 609 mm |
| Reach | 399 mm | 425 mm | 450 mm | 476 mm |
| Top Tube Length | 549 mm | 578 mm | 607 mm | 636 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 74.9 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 419 mm | 457 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1110 mm | 1140 mm | 1169 mm | 1198 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 664 mm | 673 mm | 684 mm | 699 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
SCOUT Complete Kit 3 belongs to the Transition Scout model. 40 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Transition SCOUT Complete 2017 is the most affordable bike of this model and has a price of 2999$. On the other hand, Transition SCOUT CARBON Complete Kit 1 2017, is the most expensive and costs 8799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 3899$. Doing a quick comparison, we notice that SCOUT Complete Kit 3 price is 41.17% higher than the average cost of a Trail bike.
SCOUT Complete Kit 3 components
Fork
The SCOUT Complete Kit 3 comes factory-installed with the RockShox Pike RC fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on SCOUT Complete Kit 3 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCOUT Complete Kit 3 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Transition model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
