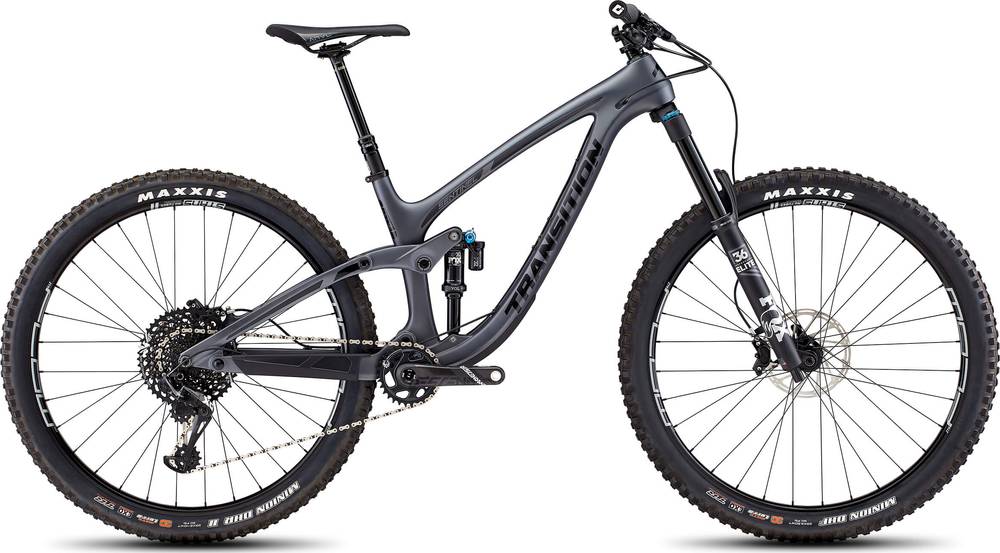

Transition Sentinel Carbon Complete GX 2020
2020 Mountain
Estimate price |
4,999$
Weight | 14.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Carbon 140mm
Suspension Fork
Fox 36 Grip Performance 160mm
Rear Shock
Fox DPX2 Performance
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Descendent 6K DUB (30t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Flow S1 Comp
Tires
Front: Maxxis Minion DHF 3C WT (29x2.5), Rear: Maxxis Minion DHRII 3C WT (29x2.4)
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline (200/180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.32 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 760 mm | 785 mm | 814 mm | 844 mm | 863 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Stack | 611 mm | 611 mm | 620 mm | 629 mm | 638 mm |
| Reach | 419 mm | 444 mm | 469 mm | 494 mm | 509 mm |
| Top Tube Length | 562 mm | 587 mm | 616 mm | 644 mm | 660 mm |
| Seat Tube Angle | 77.5 ° | 76.8 ° | 76.3 ° | 75.8 ° | 75.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 490 mm | 510 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1187 mm | 1212 mm | 1241 mm | 1271 mm | 1290 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 679 mm | 689 mm | 694 mm | 709 mm | 714 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Sentinel Carbon Complete GX completes the Transition Sentinel model. 43 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Transition Sentinel Alloy Complete NX 2020 is the cheapest bike model and costs 3199$. Transition Sentinel Carbon Complete XO1 2020 is the most expensive one and costs 5999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Transition Sentinel Carbon Complete GX price was 4999$. Comparing the average cost of a Trail bike to this one, you will see that Sentinel Carbon Complete GX price is 80.99% higher.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Transition Sentinel Carbon Complete GX it’s weighing 14.33 kg (31.59 lbs). At this weight, is considerably heavier than average. In other words, this model is 10.4% heavier than the average Trail bike.
Overview of components
Fork
This bike has the Fox Performance Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Performance model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Sentinel Carbon Complete GX model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sentinel Carbon Complete GX has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Sentinel Carbon Complete GX comes in 5 sizes, that range from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Transition Sentinel Carbon Complete GX comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
