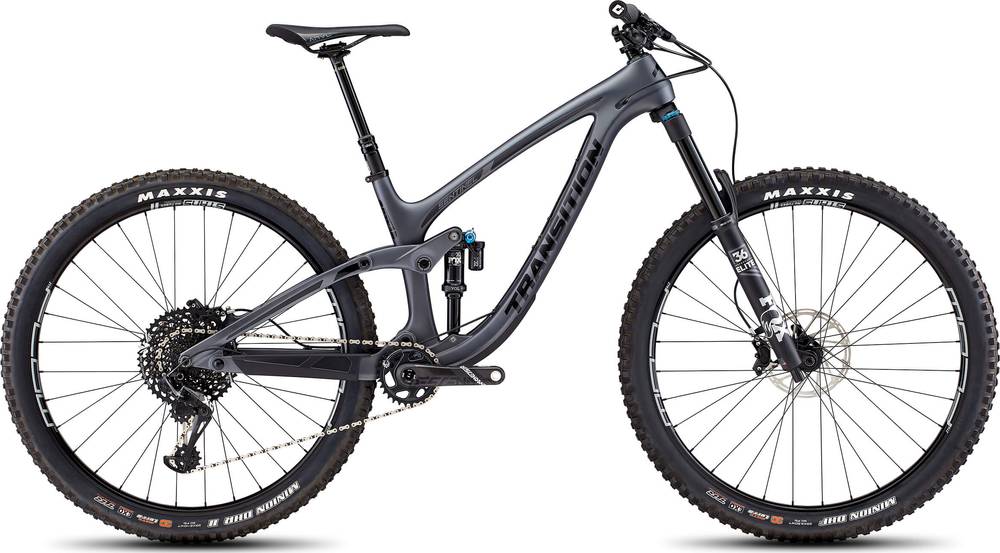

Transition Sentinel Carbon Complete NX 2020
2020 Mountain
Estimate price |
3,999$
Weight | 14.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Carbon 140mm
Suspension Fork
Rockshox Yari RC Charger Damper 160mm
Rear Shock
RockShox Deluxe RT
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM NX Eagle DUB (30t)
Chain
SRAM NX Eagle
Wheels
Rims
WTB STi29/Novatech D791SB/D462SB
Tires
Front: Maxxis Minion DHF Dual WT (29x2.5), Rear: Maxxis Minion DHRII Dual WT (29x2.4)
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline (200/180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35
Grips
Velo VLG-1812D2
Headset
FSA No.57E
Seat
Saddle
WTB Silverado Comp
Seatpost
RKS Lev Integra
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.32 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 760 mm | 785 mm | 814 mm | 844 mm | 863 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Stack | 611 mm | 611 mm | 620 mm | 629 mm | 638 mm |
| Reach | 419 mm | 444 mm | 469 mm | 494 mm | 509 mm |
| Top Tube Length | 562 mm | 587 mm | 616 mm | 644 mm | 660 mm |
| Seat Tube Angle | 77.5 ° | 76.8 ° | 76.3 ° | 75.8 ° | 75.5 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 490 mm | 510 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1187 mm | 1212 mm | 1241 mm | 1271 mm | 1290 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 679 mm | 689 mm | 694 mm | 709 mm | 714 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
Model Overview
Sentinel Carbon Complete NX belongs to the Transition Sentinel model. Transition released 43 bikes variations of this model so far. Take a sneak peek at all Transition Sentinel bikes models from 2020, by clicking here.
Model range prices
Transition Sentinel Alloy Complete NX 2020 is the most economical model, with a starting price of 3199$. Transition Sentinel Carbon Complete XO1 2020 on the other hand costs 5999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Transition Sentinel Carbon Complete NX price was 3999$. Doing a quick comparison, we notice that Sentinel Carbon Complete NX price is 44.79% higher than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.42 kg (31.79 lbs), the Sentinel Carbon Complete NX model is considerably heavier than average. To sum up, it’s 11.09% heavier than the average weight of Trail bikes.
Overview of components
Fork
Transition Sentinel Carbon Complete NX 2020 bike is equipped with the RockShox Yari RC fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Sentinel Carbon Complete NX has a rear shock with a travel of 140mm. The model RockShox Deluxe RT is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Transition Sentinel Carbon Complete NX 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sentinel Carbon Complete NX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
