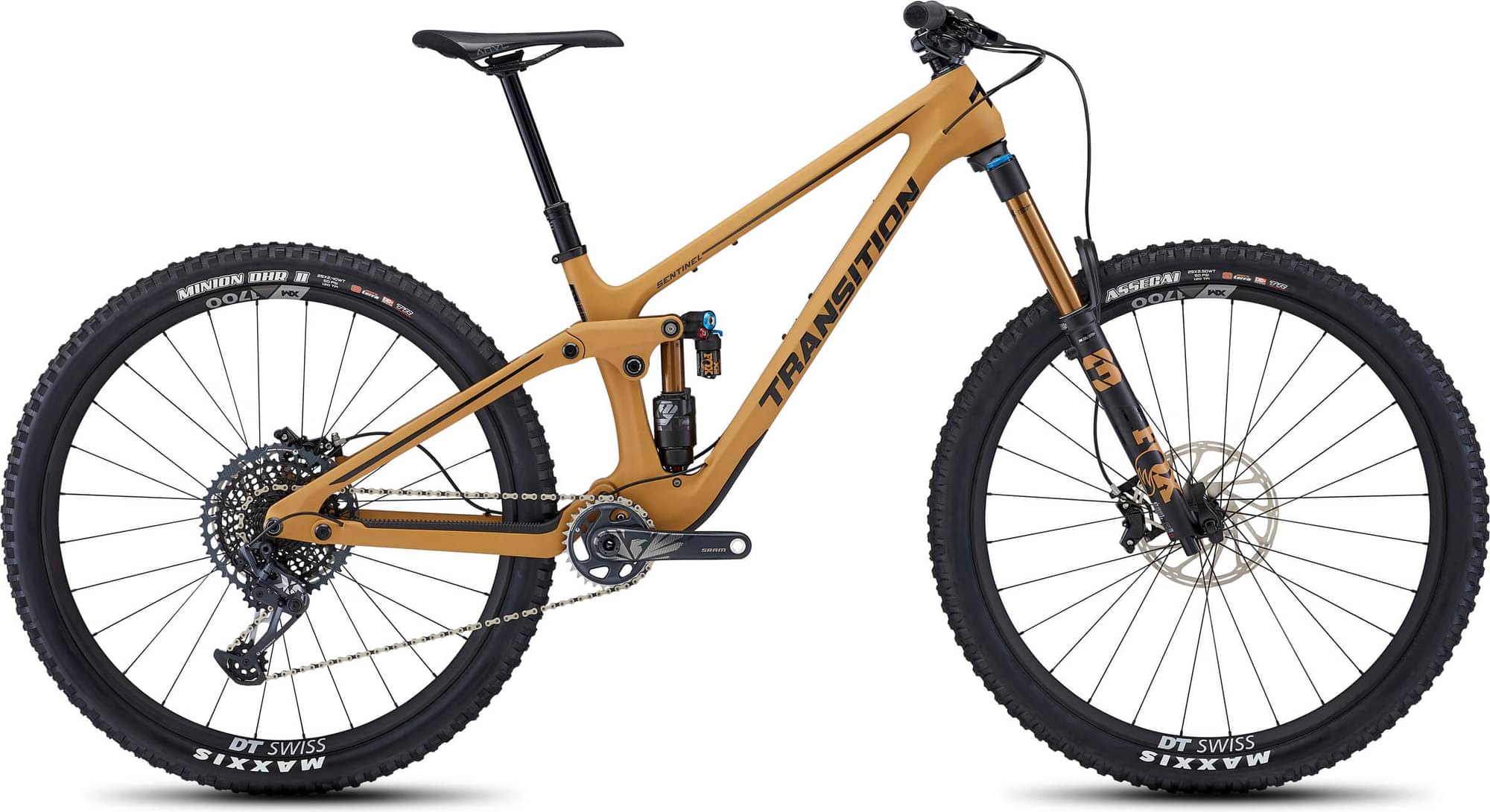

Transition Sentinel Carbon Complete NX 2022
2022 Mountain
Estimate price |
4,799$
Weight | 14.44 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Carbon 150mm
Suspension Fork
RockShox Lyrik Select, 160mm Travel/42mm Offset
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM Stylo 6k DUB (30t/170mm)
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatech D791SB/D462SB
Rear Hub
Novatech D791SB/D462SB
Rims
Stans Flow D
Spokes
Pillar Double Butted
Tires
Front: Maxxis Assegai 3C EXO+ (29x2.5), Rear: Maxxis Minion DHRII 3C EXO+ (29x2.4)
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline (200mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM/MD (780x20), LG/XL/XXL (780x35)
Grips
Sensus Lite
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post, SM (150mm), MD (180mm), LG/XL/XXL (210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.32 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 347 mm | 347 mm |
| Front Center | 761 mm | 794 mm | 824 mm | 853 mm | 877 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm | 138 mm |
| Stack | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 421 mm | 451 mm | 477 mm | 502 mm | 522 mm |
| Top Tube Length | 553 mm | 586 mm | 614 mm | 642 mm | 666 mm |
| Seat Tube Angle | 78.2 ° | 77.5 ° | 76.9 ° | 76.4 ° | 76 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1200 mm | 1234 mm | 1264 mm | 1293 mm | 1317 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 672 mm | 689 mm | 701 mm | 713 mm | 723 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
Model Overview
Sentinel Carbon Complete NX is part of the Transition Sentinel model. There are 43 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Transition Sentinel Alloy NX 2022 has a starting price of 3899$. Transition Sentinel Carbon XO1 2022 on the other hand is the most expensive at 7199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Transition Sentinel Carbon Complete NX price was 4799$. If we compare this with the average Enduro bike cost we notice that the price is 33.34% higher.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Transition Sentinel Carbon Complete NX it’s weighing 14.44 kg (31.83 lbs). At this weight, is slightly heavier than average. In conclusion, the average Enduro bike weighs 1.19% less than Sentinel Carbon Complete NX.
Overview of components
Fork
The Sentinel Carbon Complete NX comes factory-installed with the RockShox Lyrik Select fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Select+, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Sentinel Carbon Complete NX bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sentinel Carbon Complete NX has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Sentinel Carbon Complete NX comes in 5 sizes, that range from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Transition Sentinel Carbon Complete NX comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
