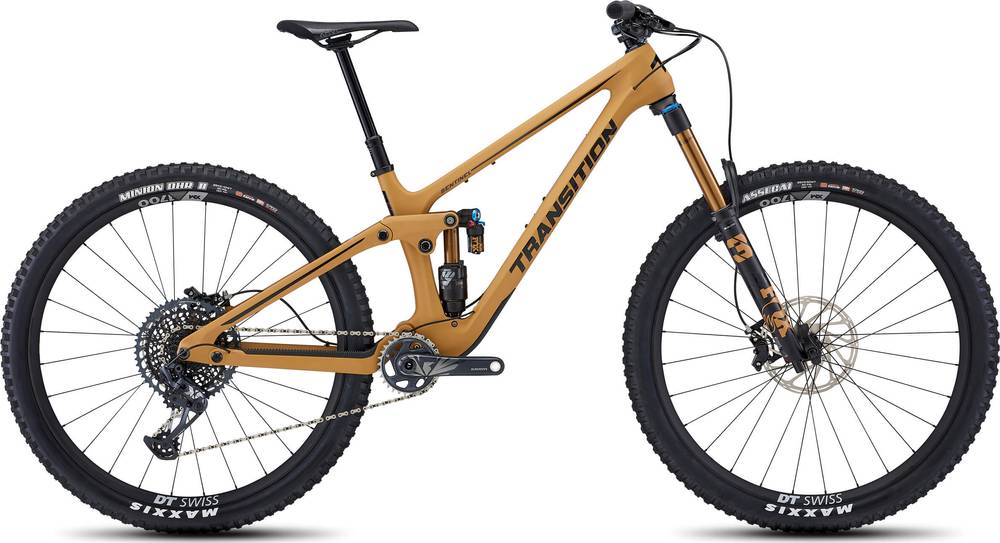

Transition Sentinel Carbon GX 2021
2021 Mountain
Estimate price |
5,899$
Weight | 14.21 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sentinel Carbon 150mm
Suspension Fork
RockShox Lyrik Ultimate, 160mm Travel/42mm Offset
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM Stylo 7K DUB (30t/170mm)
Chain
SRAM GX Eagle
Wheels
Front Hub
Stans Neo Durasync
Rear Hub
Stans Neo Durasync
Rims
Stans Flow S1
Spokes
Sapim Race Double Butted
Tires
Front: Maxxis Assegai 3C EXO+ (29x2.5), Rear: Maxxis Minion DHRII 3C EXO+ (29x2.4)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (200mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM/MD (800x20), LG/XL (800x30), XXL (800x 40)
Grips
Sensus Lite
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post, SM (150mm), MD (180mm), LG/XL/XXL (210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.32 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 347 mm | 347 mm |
| Front Center | 761 mm | 794 mm | 824 mm | 853 mm | 877 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 136 mm | 137 mm | 137 mm | 137 mm | 138 mm |
| Stack | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 421 mm | 451 mm | 477 mm | 502 mm | 522 mm |
| Top Tube Length | 553 mm | 586 mm | 614 mm | 642 mm | 666 mm |
| Seat Tube Angle | 78.2 ° | 77.5 ° | 76.9 ° | 76.4 ° | 76 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1200 mm | 1234 mm | 1264 mm | 1293 mm | 1317 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 672 mm | 689 mm | 701 mm | 713 mm | 723 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Sentinel Carbon GX completes the Transition Sentinel model. Transition launched 43 bikes of this model so far. Take a sneak peek at all Transition Sentinel bikes models from 2021, by clicking here.
Model range prices
Transition Sentinel Carbon Complete NX 2021 is the most affordable bike of this model and has a price of 4799$. On the other hand, Transition Sentinel Carbon XO1 2021, is the most expensive and costs 7199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 5899$. Comparing this to the average Enduro bike price, we see that the price is 63.91% more expensive.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Transition Sentinel Carbon GX it’s weighing 14.21 kg (31.33 lbs). At this weight, is slightly lighter than average. In conclusion, the average Enduro bike weighs 0.42% more than Sentinel Carbon GX.
Overview of components
Fork
The fork installed on this bike is the RockShox Lyrik Ultimate model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Transition Sentinel Carbon GX bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Sentinel Carbon GX are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Sentinel Carbon GX is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Sentinel Carbon GX comes in 5 sizes, that range from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Transition model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
