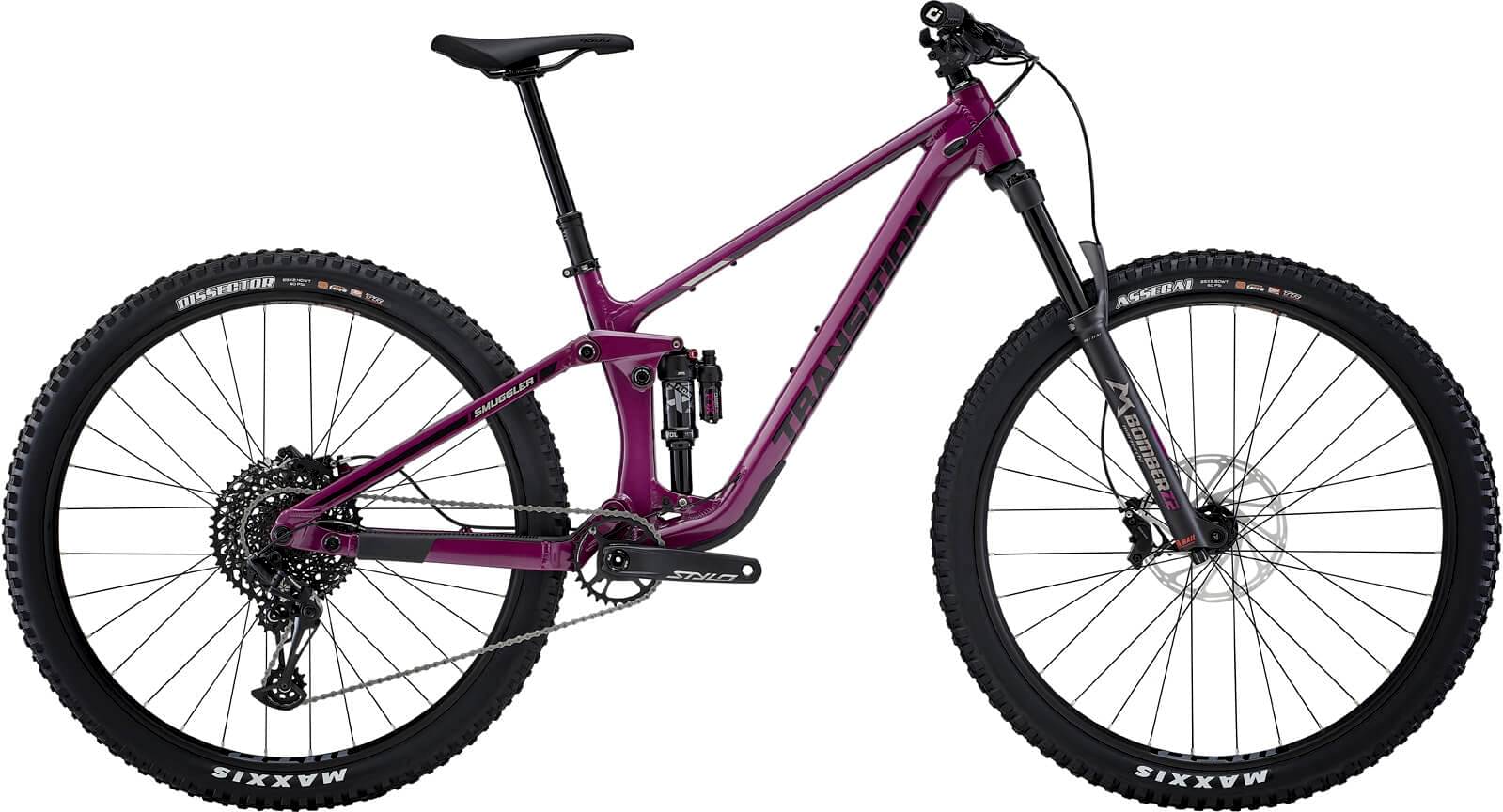

Transition Smuggler Alloy NX 2023
2023 Mountain
Estimate price |
3,999$
Weight | 15.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z2
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
XXL
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Alloy 130mm
Suspension Fork
Marzocchi Z2, (140mm)
Rear Shock
Fox Float X Performance, (210x50mm)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Stylo 6K DUB, (170mm x 30t)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i30
Spokes
Pillar Double Butted
Tires
Front: Maxxis Assegai EXO+ (2.5), Rear: Maxxis Dissector 3C EXO+ (2.4)
Brakes
Brakes
SRAM Code R
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM(800x20) MD/LG/XL/XXL(800x35)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
SDG Bel Air V3
Seatpost
OneUp Dropper Post, SM(150mm) MD(180mm) LG/XL/XXL(210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.29 mm | 1.25 mm | 1.21 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 746 mm | 780 mm | 809 mm | 839 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 599 mm | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 422 mm | 452 mm | 477 mm | 502 mm | 527 mm |
| Top Tube Length | 547 mm | 580 mm | 609 mm | 637 mm | 662 mm |
| Seat Tube Angle | 79.3 ° | 78.6 ° | 78.1 ° | 77.6 ° | 77.3 ° |
| Seat Tube Length | 375 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1173 mm | 1207 mm | 1242 mm | 1272 mm | 1301 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
About this model
Smuggler Alloy NX belongs to the Transition Smuggler model. 28 bikes variations carry this model name so far. You can easily view all of the Transition Smuggler bikes models from 2023, here.
Model range prices
Transition Smuggler Alloy NX 2023 is the most economical model, with a starting price of 3999$. Transition Smuggler Carbon XO AXS 2023 on the other hand costs 8499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Transition released this model in 2023, its price was 3999$. If we compare this with the average Trail bike cost we notice that the price is 44.79% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Transition Smuggler Alloy NX it’s weighing 15.65 kg (34.5 lbs). At this weight, is much heavier than average. In short, the average Trail bike weight is 20.57% lower than this one.
Smuggler Alloy NX components
Fork
The Smuggler Alloy NX comes factory-installed with the Marzocchi Bomber Z2 fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Smuggler Alloy NX has a rear shock with a travel of 130mm. The model Fox Float X Performance is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Smuggler Alloy NX are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Smuggler Alloy NX has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Transition Smuggler Alloy NX bike has 5 sizes, in the range of 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Transition Smuggler Alloy NX comes with a dropper post. Therefore, climbing or descending will be a breeze.
