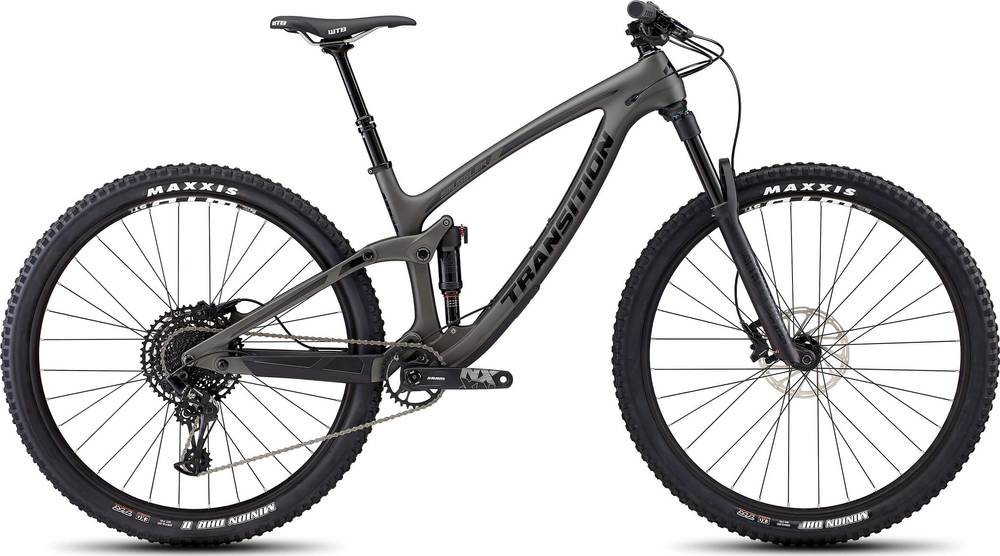

Transition SMUGGLER CARBON COMPLETE NX 2020
2020 Mountain
Estimate price |
3,999$
Weight | 14.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 120mm Rear/140mm Front
Suspension Fork
Rockshox Revelation RC 140mm
Rear Shock
RockShox Deluxe RT
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG 1230 (11-50t)
Crank
SRAM NX Eagle DUB (170mm x 30t)
Chain
SRAM NX Eagle
Wheels
Rims
WTB STi25/Novatech D791SB/D462SB
Tires
Front: Maxxis Minion DHF Dual WT (29x2.3), Rear: Maxxis Minion DHRII Dual (29x2.3)
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM/MD (780 x 20mm), LG/XL (780 x 35mm)
Grips
Velo VLG-1812D2
Headset
FSA No.57E
Seat
Saddle
WTB Silverado Comp
Seatpost
RaceFace Aeffect Dropper, SM/MD (125mm), LG/XL (150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.367 mm | 1.314 mm | 1.266 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 731 mm | 756 mm | 785 mm | 814 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Seat Tube Angle | 77 ° | 76.3 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1159 mm | 1184 mm | 1213 mm | 1242 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 688 mm | 695 mm | 705 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
SMUGGLER CARBON COMPLETE NX completes the Transition Smuggler model. There are 28 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Transition Smuggler Carbon NX 2020 is the most affordable bike of this model and has a price of 3999$. On the other hand, Transition SMUGGLER CARBON COMPLETE XO1 2020, is the most expensive and costs 5999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3999$. Comparing the average cost of a Trail bike to this one, you will see that SMUGGLER CARBON COMPLETE NX price is 44.79% higher.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
SMUGGLER CARBON COMPLETE NX weighs 14.02 kg (30.91 lbs) and is a bit heavier than the average. To sum up, it’s 8.01% heavier than the average weight of Trail bikes.
SMUGGLER CARBON COMPLETE NX components
Fork
The SMUGGLER CARBON COMPLETE NX comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The SMUGGLER CARBON COMPLETE NX has a rear shock with a travel of 120mm. The model RockShox Deluxe RT is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the SMUGGLER CARBON COMPLETE NX model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition SMUGGLER CARBON COMPLETE NX is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Transition SMUGGLER CARBON COMPLETE NX comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
