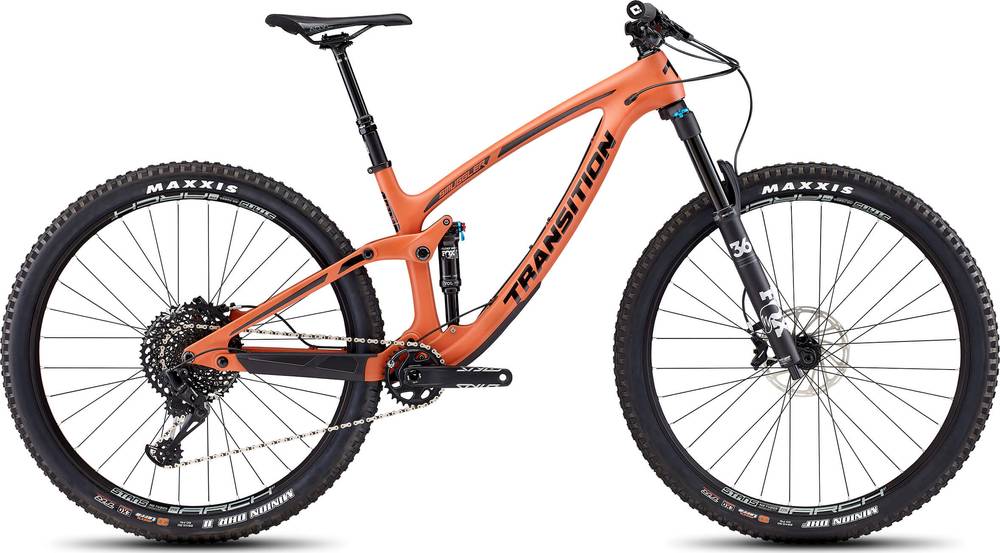

Transition Smuggler Carbon XO1 2020
2020 Mountain
Estimate price |
5,999$
Weight | 12.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 120mm
Suspension Fork
Fox Float 36 Grip 2 Performance Elite (140mm)
Rear Shock
Fox DPS Performance Elite
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM X1 Carbon DUB (170mm x 30t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Arch MK3 Pro
Tires
Front: Maxxis Minion DHF 3C WT (29x2.3), Rear: Maxxis Minion DHRII 3C WT (29x2.3)
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35
Grips
ODI Elite Flow
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Ti
Seatpost
RockShox Reverb Stealth 1x Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.367 mm | 1.314 mm | 1.266 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 731 mm | 756 mm | 785 mm | 814 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 571 mm | 596 mm | 625 mm | 653 mm |
| Seat Tube Angle | 77 ° | 76.3 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1159 mm | 1184 mm | 1213 mm | 1242 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 688 mm | 695 mm | 705 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
Smuggler Carbon XO1 is a Transition Smuggler model. Transition launched 28 bikes of this model so far. You can easily view all of the Transition Smuggler bikes models from 2020, here.
Model range prices
Transition Smuggler Carbon NX 2020 is the most economical model, with a starting price of 3999$. Transition SMUGGLER CARBON COMPLETE XO1 2020 on the other hand costs 5999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. Doing a quick comparison, we notice that Smuggler Carbon XO1 price is 117.2% higher than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Smuggler Carbon XO1 has a weight of 12.99 kg (28.64 lbs). To sum up, it’s 0.08% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Fox Performance Elite Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Smuggler Carbon XO1 has a rear shock with a travel of 120mm. The model Fox DPS Performance Elite is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Smuggler Carbon XO1 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Smuggler Carbon XO1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Transition Smuggler Carbon XO1 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
