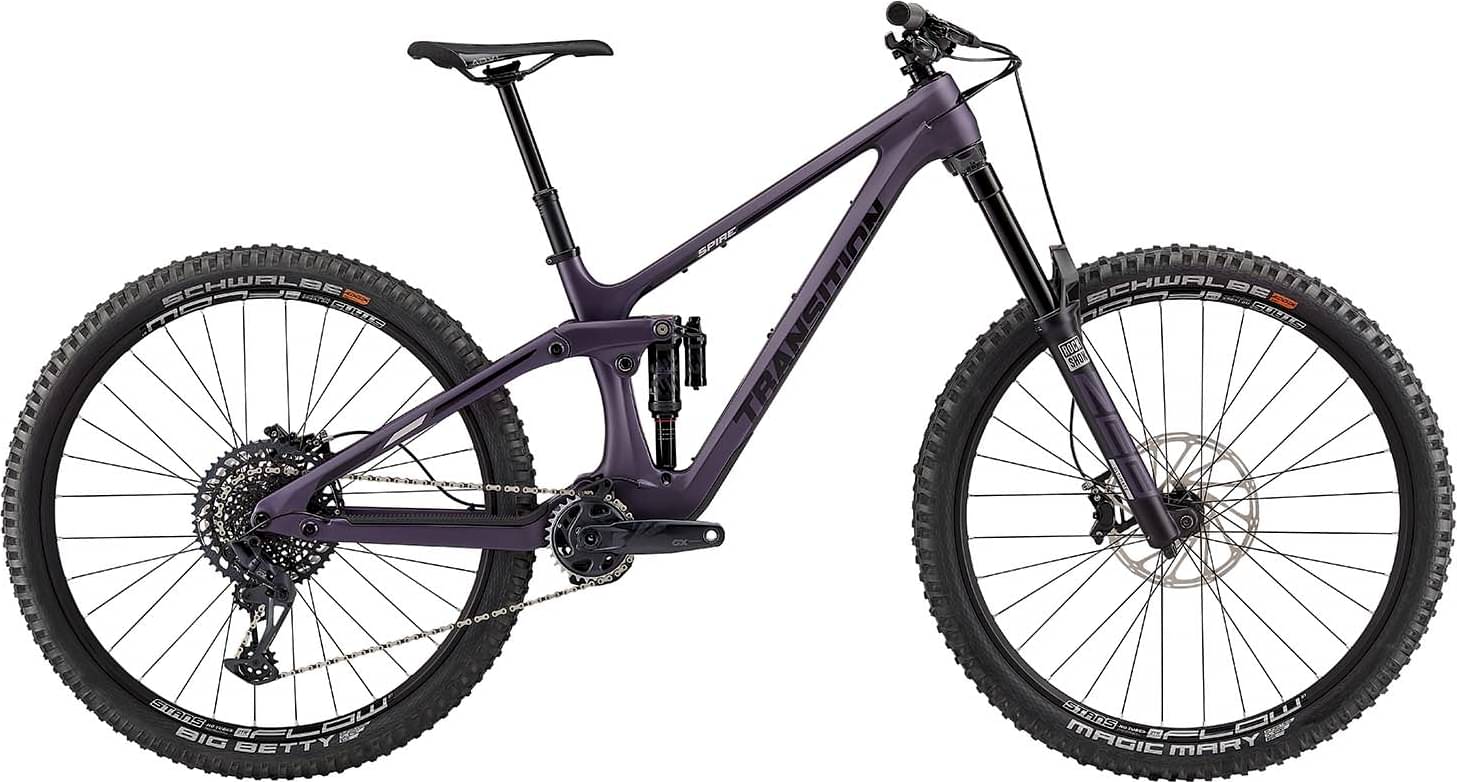

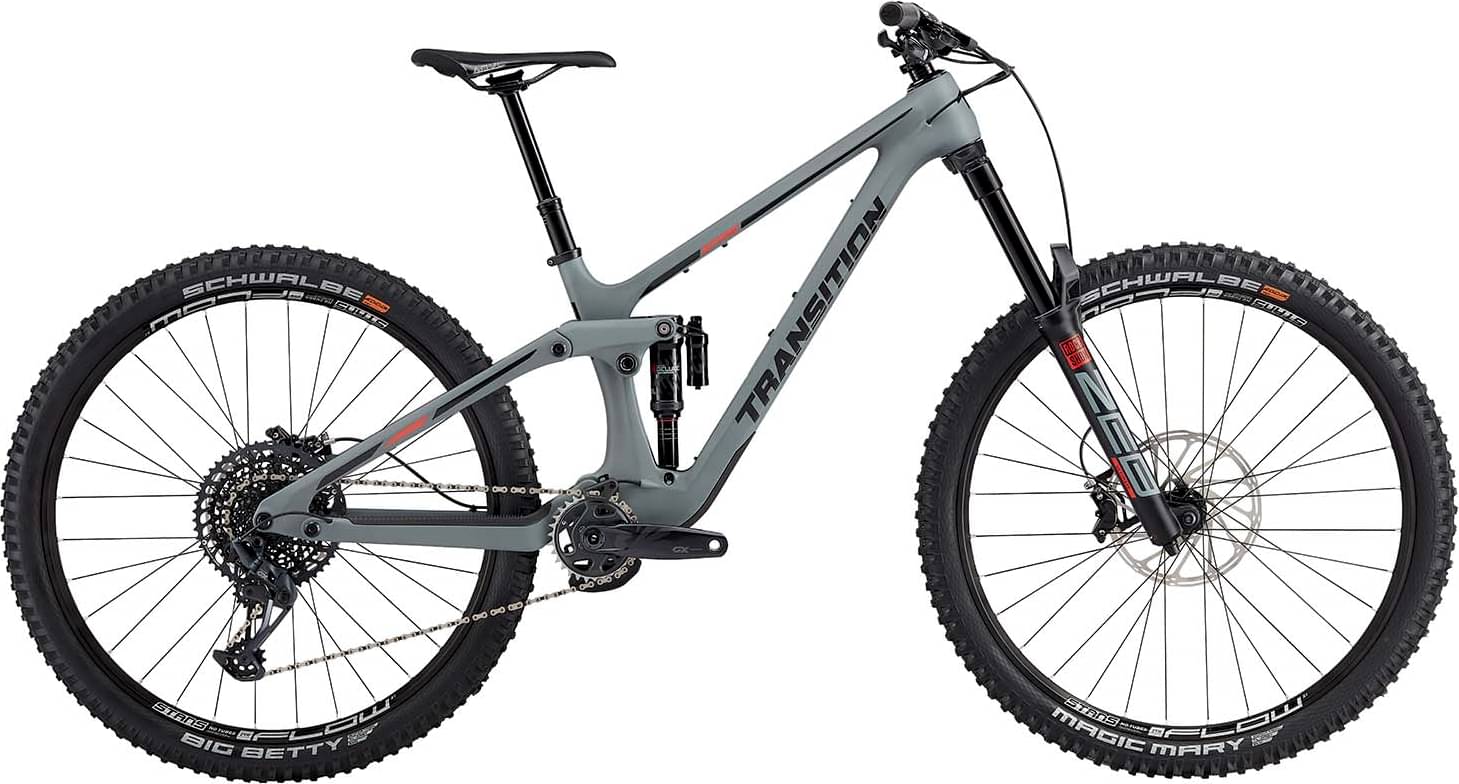

Transition Spire Carbon GX TRP 2023
2023 Mountain
Estimate price |
6,299$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
XXL High
190cm - 207cm
XXL Low
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spire Carbon 170mm
Suspension Fork
RockShox ZEB Ultimate A2 (170mm)
Rear Shock
RockShox Super Deluxe Ultimate C1 Air, (205x65mm)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Alloy DUB (30t/165mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
Stans Neo Durasync
Rear Hub
Stans Neo Durasync
Rims
Stans Flow S1
Spokes
Sapim Race Double Butted
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (2.4)
Brakes
Brakes
TRP DH-R-Evo
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM(800x20) MD/LG/XL(800x30) XXL(800x40)
Grips
ODI Elite Flow
Headset
FSA NO.55R/57
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.35 mm | 1.38 mm | 1.3 mm | 1.32 mm | 1.25 mm | 1.27 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm |
| Front Center | 782 mm | 783 mm | 812 mm | 813 mm | 842 mm | 843 mm | 871 mm | 872 mm | 901 mm | 902 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 141 mm | 146 mm | 141 mm | 146 mm | 141 mm | 145 mm | 141 mm | 146 mm | 141 mm | 146 mm |
| Stack | 613 mm | 618 mm | 613 mm | 618 mm | 622 mm | 627 mm | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 424 mm | 419 mm | 454 mm | 449 mm | 479 mm | 474 mm | 504 mm | 499 mm | 529 mm | 524 mm |
| Top Tube Length | 541 mm | 544 mm | 571 mm | 574 mm | 599 mm | 602 mm | 627 mm | 630 mm | 655 mm | 658 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° | 77.2 ° | 76.7 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm | 490 mm | 490 mm |
| Head Tube Angle | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 440 mm | 442 mm | 440 mm | 442 mm | 440 mm | 442 mm | 446 mm | 448 mm | 446 mm | 448 mm |
| Wheelbase | 1221 mm | 1223 mm | 1251 mm | 1253 mm | 1281 mm | 1283 mm | 1316 mm | 1318 mm | 1346 mm | 1348 mm |
| Bottom Bracket Drop | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm |
| Standover Height | 679 mm | 674 mm | 694 mm | 689 mm | 709 mm | 704 mm | 724 mm | 719 mm | 739 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm | 190 cm | 190 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm | 207 cm | 207 cm |
About this model
Spire Carbon GX TRP is a Transition Spire model. There are 28 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Transition Spire Alloy NX 2023 is the most economical model, with a starting price of 4199$. Transition Spire Carbon XO AXS 2023 on the other hand costs 8499$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 6299$. Comparing this to the average Enduro bike price, we see that the price is 75.02% higher.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Spire Carbon GX TRP has a weight of 15.1 kg (33.29 lbs). To sum up, it’s 5.82% heavier than the average weight of Enduro bikes.
Spire Carbon GX TRP components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Spire Carbon GX TRP has a rear shock with a travel of 170mm. The model RockShox Super Deluxe Ultimate C1 Air is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Transition Spire Carbon GX TRP 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Spire Carbon GX TRP is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Spire Carbon GX TRP comes in 10 sizes, that range from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Transition Spire Carbon GX TRP includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
