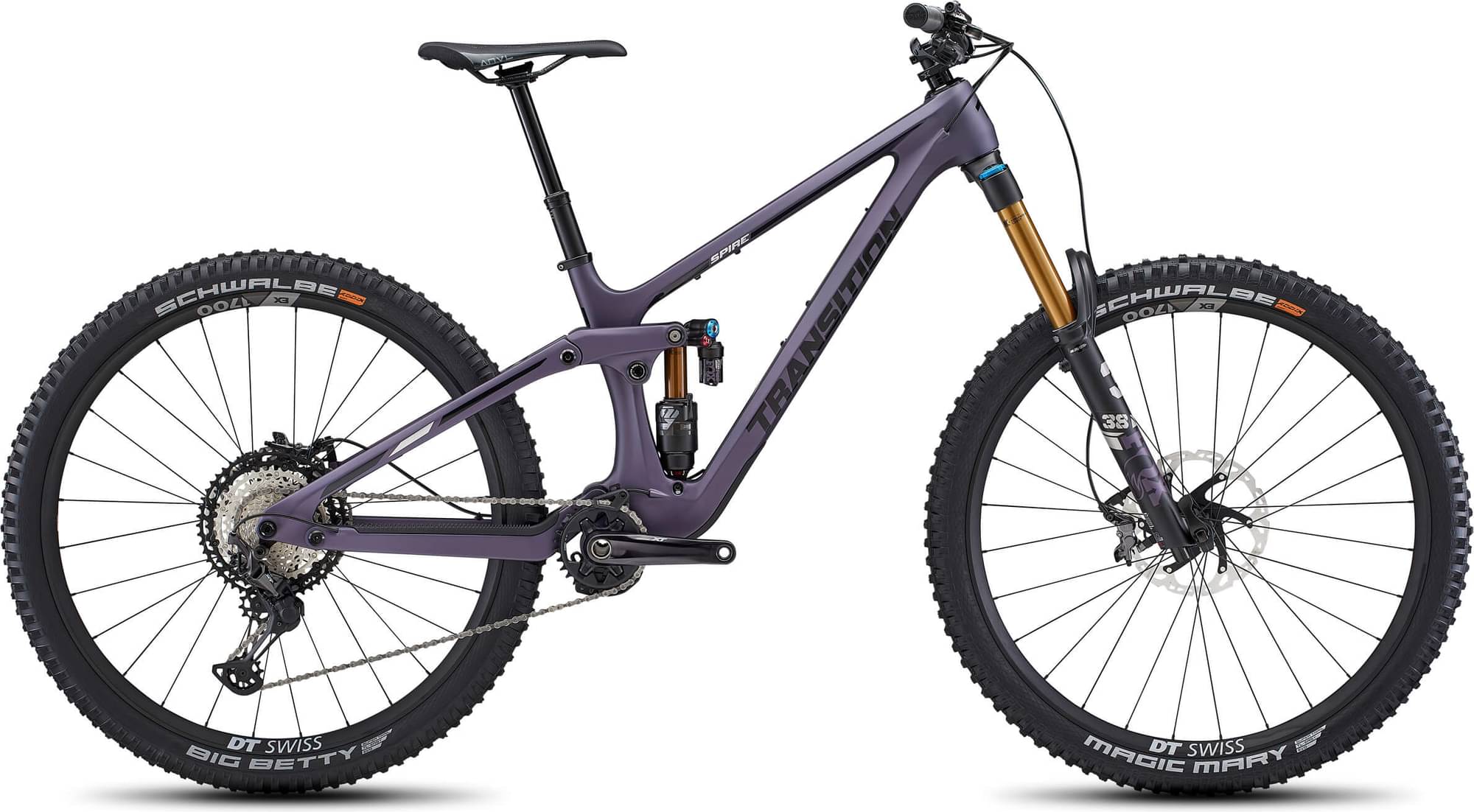

Transition Spire Carbon XT 2022
2022 Mountain
Estimate price |
6,699$
Weight | 15.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 170cm
SM Low
154cm - 170cm
MD High
164cm - 182cm
MD Low
164cm - 182cm
LG High
175cm - 190cm
LG Low
175cm - 190cm
XL High
184cm - 200cm
XL Low
184cm - 200cm
XXL High
190cm - 207cm
XXL Low
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spire Carbon 170mm
Suspension Fork
Fox Float 38 Grip 2 Factory, 170mm Travel/44mm Offset
Rear Shock
Fox Float X2 Factory, 2 Position (205x65)
Drivetrain
Rear Derailleur
Shimano XT M8100
Shift Levers
Shimano XT M8100
Cassette
Shimano XT M8100 (10-51t)
Crank
Shimano XT M8100 (30t/165mm)
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT M8100
Chain Guide
OneUp Bash Guide
Wheels
Front Hub
DT Swiss 350 Straight Pull 36SL
Rear Hub
DT Swiss 350 Straight Pull 36SL
Rims
DT Swiss EX 1700 Spline 30
Spokes
DT Swiss Competition
Tires
Front: Schwalbe Magic Mary, Super Trail, Soft (29x2.4), Rear: Schwalbe Big Betty, Super Trail, Soft (29x2.4)
Brakes
Brakes
Shimano XT M8120
Disk Rotors
Shimano RT86 (203mm)
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy 35, SM (800x20), MD/LG/XL (800x30), XXL (800x40)
Grips
Sensus Lite
Headset
FSA NO.55R/57
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.35 mm | 1.38 mm | 1.3 mm | 1.32 mm | 1.25 mm | 1.27 mm | 1.21 mm | 1.23 mm |
| Bottom Bracket Height | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm | 350 mm | 343 mm |
| Front Center | 782 mm | 783 mm | 812 mm | 813 mm | 842 mm | 843 mm | 871 mm | 872 mm | 901 mm | 902 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 141 mm | 146 mm | 141 mm | 146 mm | 141 mm | 145 mm | 141 mm | 146 mm | 141 mm | 146 mm |
| Stack | 613 mm | 618 mm | 613 mm | 618 mm | 622 mm | 627 mm | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 424 mm | 419 mm | 454 mm | 449 mm | 479 mm | 474 mm | 504 mm | 499 mm | 529 mm | 524 mm |
| Top Tube Length | 541 mm | 544 mm | 571 mm | 574 mm | 599 mm | 602 mm | 627 mm | 630 mm | 655 mm | 658 mm |
| Seat Tube Angle | 79.6 ° | 79.1 ° | 78.8 ° | 78.3 ° | 78.1 ° | 77.6 ° | 77.5 ° | 77 ° | 77.2 ° | 76.7 ° |
| Seat Tube Length | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm | 490 mm | 490 mm |
| Head Tube Angle | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° | 63 ° | 62.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 440 mm | 442 mm | 440 mm | 442 mm | 440 mm | 442 mm | 446 mm | 448 mm | 446 mm | 448 mm |
| Wheelbase | 1221 mm | 1223 mm | 1251 mm | 1253 mm | 1281 mm | 1283 mm | 1316 mm | 1318 mm | 1346 mm | 1348 mm |
| Bottom Bracket Drop | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm | 25 mm | 32 mm |
| Standover Height | 679 mm | 674 mm | 694 mm | 689 mm | 709 mm | 704 mm | 724 mm | 719 mm | 739 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 175 cm | 175 cm | 184 cm | 184 cm | 190 cm | 190 cm |
| Rider Max Height | 170 cm | 170 cm | 182 cm | 182 cm | 190 cm | 190 cm | 200 cm | 200 cm | 207 cm | 207 cm |
Model Overview
Spire Carbon XT is a Transition Spire model. Transition launched 28 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Transition Spire Alloy Deore 2022 is the most economical model, with a starting price of 3799$. Transition Spire Carbon XT 2022 on the other hand costs 6699$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6699$. If we compare this with the average Enduro bike cost we notice that the price is 86.14% higher.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 15.33 kg (33.8 lbs), Transition bike is a bit heavier than average. In short, the average Enduro bike weight is 7.43% lower than this one.
Overview of components
Fork
The Spire Carbon XT comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float X2 Factory, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Transition Spire Carbon XT 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spire Carbon XT comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Spire Carbon XT comes in 10 sizes, that range from 154 cm – 207 cm (5.05 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Transition Spire Carbon XT includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
