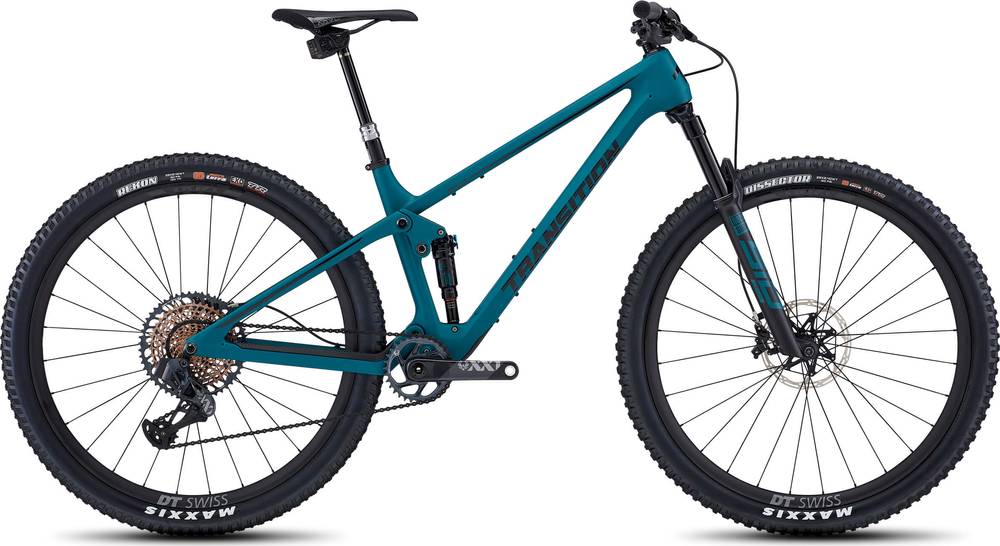

Transition Spur Carbon XO1 2021
2021 Mountain
Estimate price |
6,499$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spur Carbon 120mm
Suspension Fork
RockShox SID Ultimate, 120mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Ultimate
Drivetrain
Rear Derailleur
SRAM XO1 Eagle
Shift Levers
SRAM XO1 Eagle
Cassette
SRAM XG 1295 (10-52t)
Crank
SRAM X1 Carbon DUB, (32t/175mm), Small 170mm
Chain
SRAM XO1 Eagle
Wheels
Rims
DT Swiss XR 1700 Spline 25
Tires
Front: Maxxis Dissector 3C EXO (29x2.4), Rear: Maxxis Rekon 3C EXO (29x2.4)
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM Centerline (180/160mm)
Cockpit
Stem
RaceFace Turbine R (50mm)
Handlebar
OneUp Carbon Bar (800mm x 20mm)
Grips
Sensus Lite
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Cromo
Seatpost
OneUp Dropper Post, SM (120mm), MD (150mm), LG (180mm), XL (210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 724 mm | 758 mm | 787 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 597 mm | 607 mm | 616 mm | 629 mm |
| Reach | 422 mm | 452 mm | 477 mm | 507 mm |
| Top Tube Length | 566 mm | 599 mm | 627 mm | 661 mm |
| Seat Tube Angle | 76.7 ° | 76.2 ° | 75.9 ° | 75.6 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1153 mm | 1187 mm | 1216 mm | 1252 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 659 mm | 664 mm | 667 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Spur Carbon XO1 belongs to the Transition Spur model. 17 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Transition Spur Deore Group 2021 is the cheapest bike model and costs 4499$. Transition Spur Carbon XX1 AXS 2021 is the most expensive one and costs 9199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6499$. In conclusion, this bike price is 135.3% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 11.4 kg (25.13 lbs), Transition bike is considerably lighter than average. To sum up, it’s 13.86% lighter than the average weight of Trail bikes.
Spur Carbon XO1 components
Fork
The RockShox SID Ultimate is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Transition Spur Carbon XO1 bike has the RockShox SIDLuxe Ultimate model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Transition Spur Carbon XO1 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition Spur Carbon XO1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Spur Carbon XO1. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
