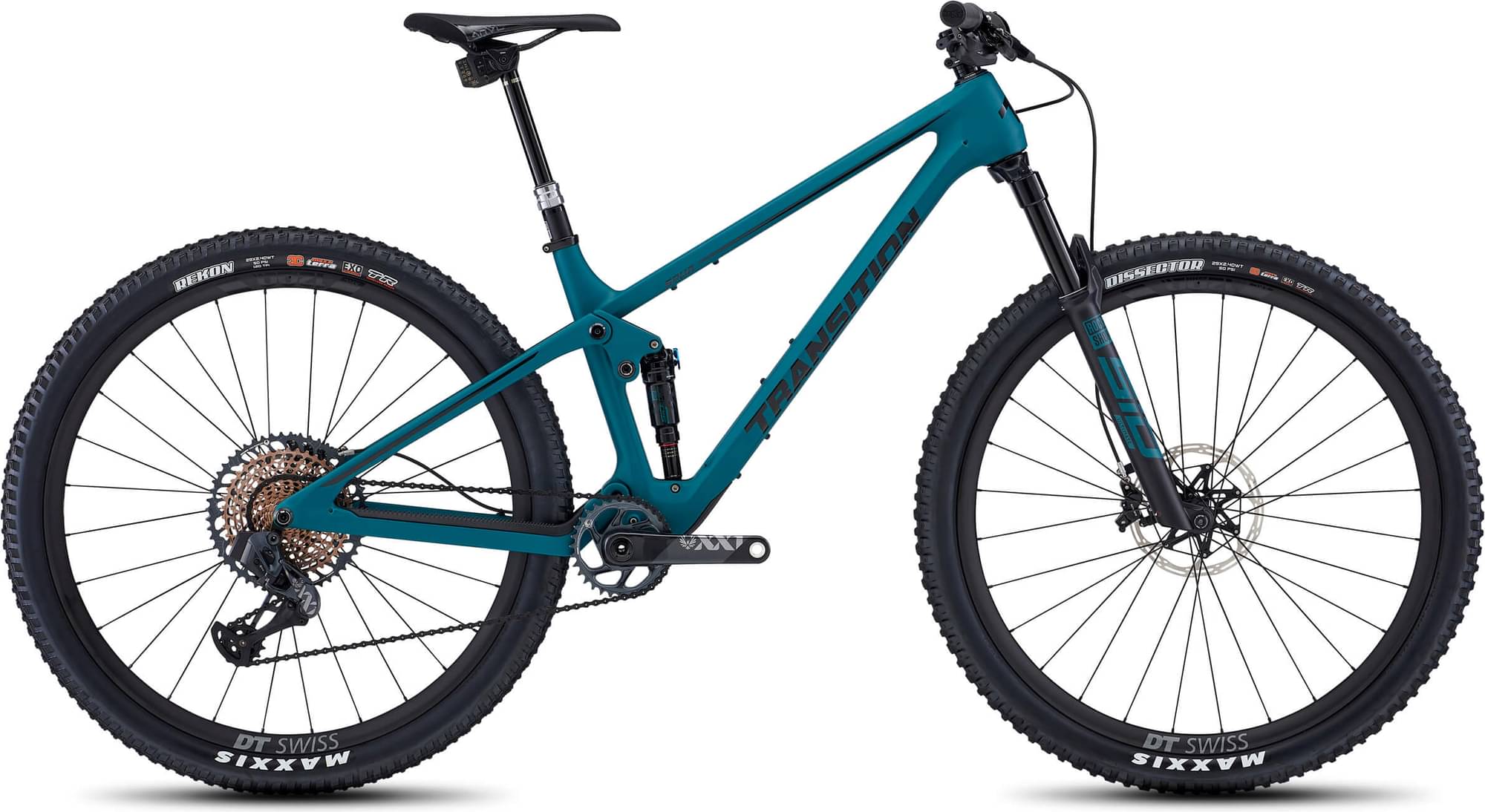

Transition Spur Carbon XX1 AXS 2022
2022 Mountain
Estimate price |
9,199$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spur Carbon 120mm
Suspension Fork
RockShox SID Ultimate, 120mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX1 AXS
Shift Levers
SRAM AXS Controller
Cassette
XG1299 (10-52t) Copper XX1
Crank
XX1 Carbon DUB, (32t/175mm) All Sizes
Chain
SRAM XX1 Black
Wheels
Rims
DT Swiss XRC 1200 Spline 25 Carbon
Tires
Front: Maxxis Dissector 3C EXO (29x2.4), Rear: Maxxis Rekon 3C EXO (29x2.4)
Brakes
Brakes
SRAM G2 Ultimate
Disk Rotors
SRAM Centerline X (180/160mm)
Cockpit
Stem
RaceFace Turbine R (50mm)
Handlebar
OneUp Carbon Bar (800mm x 20mm)
Grips
Sensus Lite
Headset
Cane Creek 40 Series
Seat
Saddle
ANVL Forge Cromo
Seatpost
RockShox Reverb AXS, 150mm or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 724 mm | 758 mm | 787 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 597 mm | 607 mm | 616 mm | 629 mm |
| Reach | 422 mm | 452 mm | 477 mm | 507 mm |
| Top Tube Length | 566 mm | 599 mm | 627 mm | 661 mm |
| Seat Tube Angle | 76.7 ° | 76.2 ° | 75.9 ° | 75.6 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1153 mm | 1187 mm | 1216 mm | 1252 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 659 mm | 664 mm | 667 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Spur Carbon XX1 AXS is a Transition Spur model. Transition launched 17 bikes of this model so far. Take a sneak peek at all Transition Spur bikes models from 2022, by clicking here.
Model range prices
Transition Spur Deore Group 2022 is the cheapest bike model and costs 4499$. Transition Spur Carbon XX1 AXS 2022 is the most expensive one and costs 9199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 9199$. If we compare this with the average Trail bike cost we notice that the price is 233.06% higher.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, Spur Carbon XX1 AXS has a weight of 11.2 kg (24.69 lbs). To sum up, it’s 15.89% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Spur Carbon XX1 AXS comes factory-installed with the RockShox SID Ultimate fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is RockShox SIDLuxe Ultimate, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Transition Spur Carbon XX1 AXS 2022, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Transition Spur Carbon XX1 AXS comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
