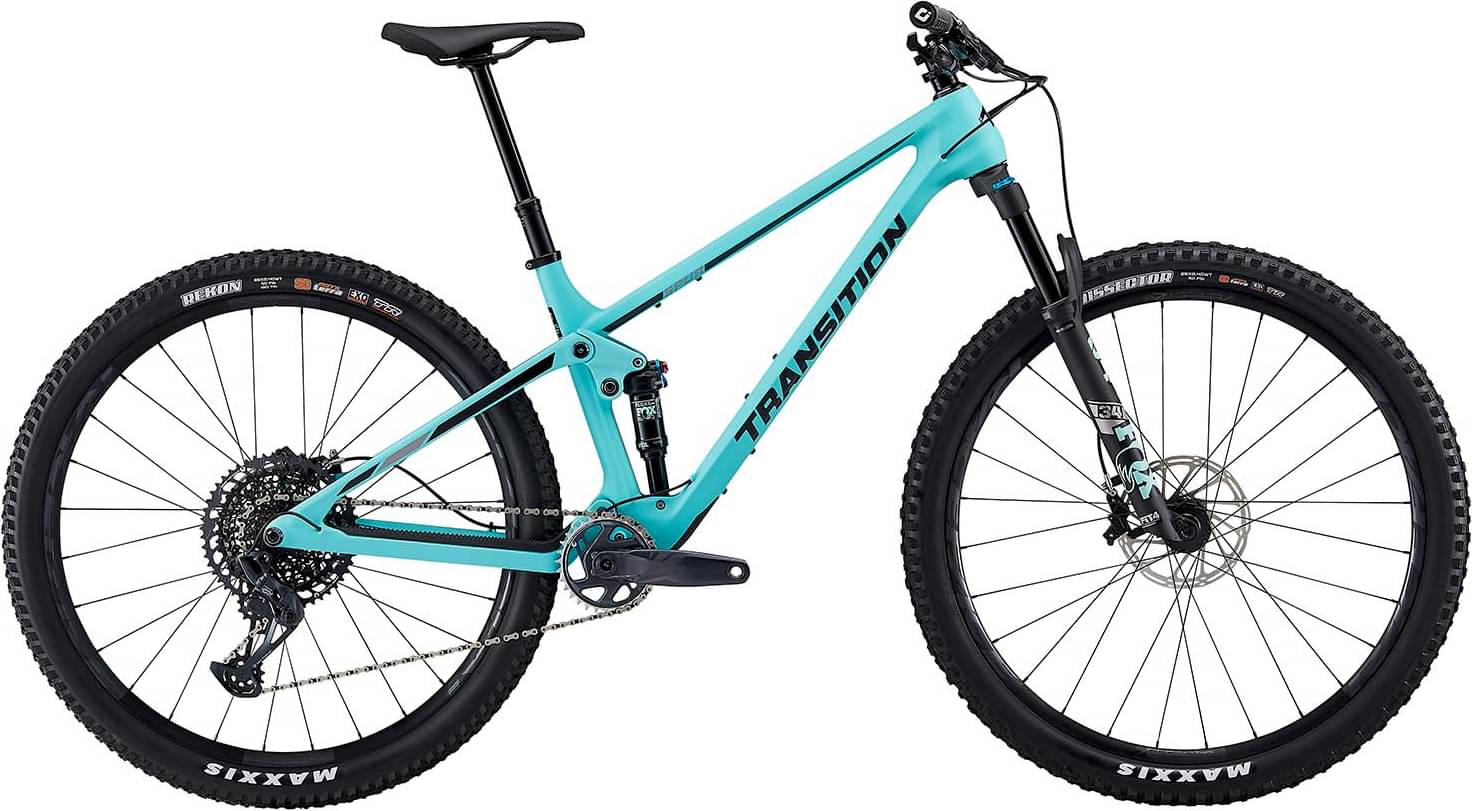

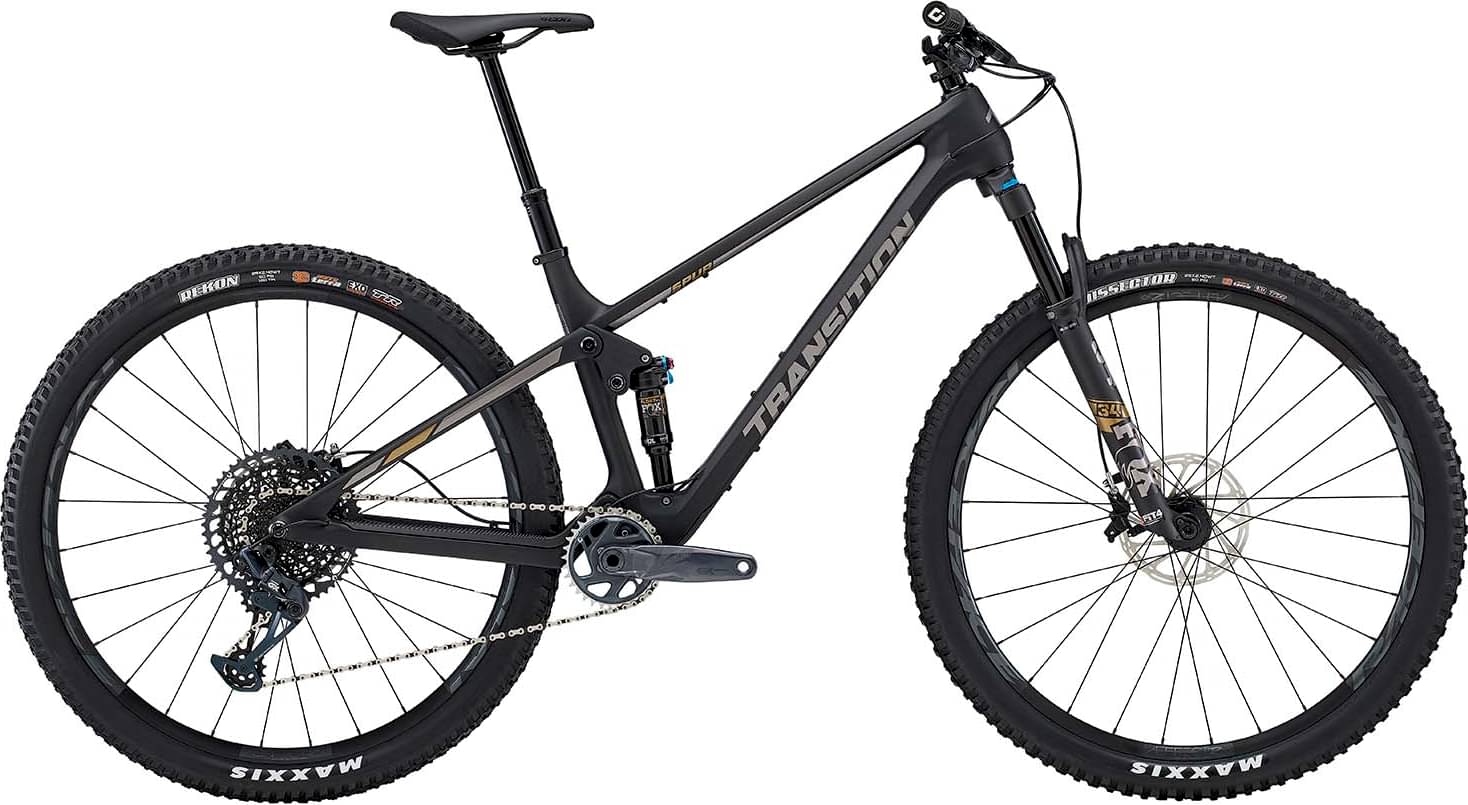

Transition Spur GX Fox 2023
2023 Mountain
Estimate price |
6,299$
Weight | 12.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spur Carbon 120mm
Suspension Fork
Fox Float 34 Performance Elite Fit 4, (120mm)
Rear Shock
Fox DPS Performance Elite, (190x45mm)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-52t)
Crank
SRAM GX Eagle DUB, (32t/170mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM GX Eagle
Wheels
Front Hub
RaceFace Trace 28h
Rear Hub
RaceFace Trace 28h
Rims
RaceFace Aeffect R
Spokes
RaceFace 2.0/1.7/2.0
Tires
Front: Maxxis Dissector 3C EXO (2.4), Rear: Maxxis Rekon 3C EXO (2.4)
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
ANVL Swage (40mm)
Handlebar
ANVL Mandrel Alloy, SM/MD(800mm x 20mm) LG/XL(800x30)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo, or, SDG Bel Air 3
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 724 mm | 758 mm | 787 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 597 mm | 607 mm | 616 mm | 629 mm |
| Reach | 422 mm | 452 mm | 477 mm | 507 mm |
| Top Tube Length | 566 mm | 599 mm | 627 mm | 661 mm |
| Seat Tube Angle | 76.7 ° | 76.2 ° | 75.9 ° | 75.6 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1153 mm | 1187 mm | 1216 mm | 1252 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 659 mm | 664 mm | 667 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
Spur GX Fox is a Transition Spur model. There are 17 bikes that carry this model name. You can easily view all of the Transition Spur bikes models from 2023, here.
Model range prices
Transition Spur Deore Group 2023 is the cheapest bike model and costs 4999$. Transition Spur AXS 2023 is the most expensive one and costs 8499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 6299$. Doing a quick comparison, we notice that Spur GX Fox price is 128.06% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Spur GX Fox has a weight of 12.82 kg (28.26 lbs). To sum up, it’s 1.25% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Spur GX Fox comes factory-installed with the Fox Performance Elite Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Transition Spur GX Fox bike has the Fox DPS Performance Elite model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Spur GX Fox bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Transition Spur GX Fox has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Transition Spur GX Fox bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Spur GX Fox. Therefore, climbing or descending will be a breeze.
