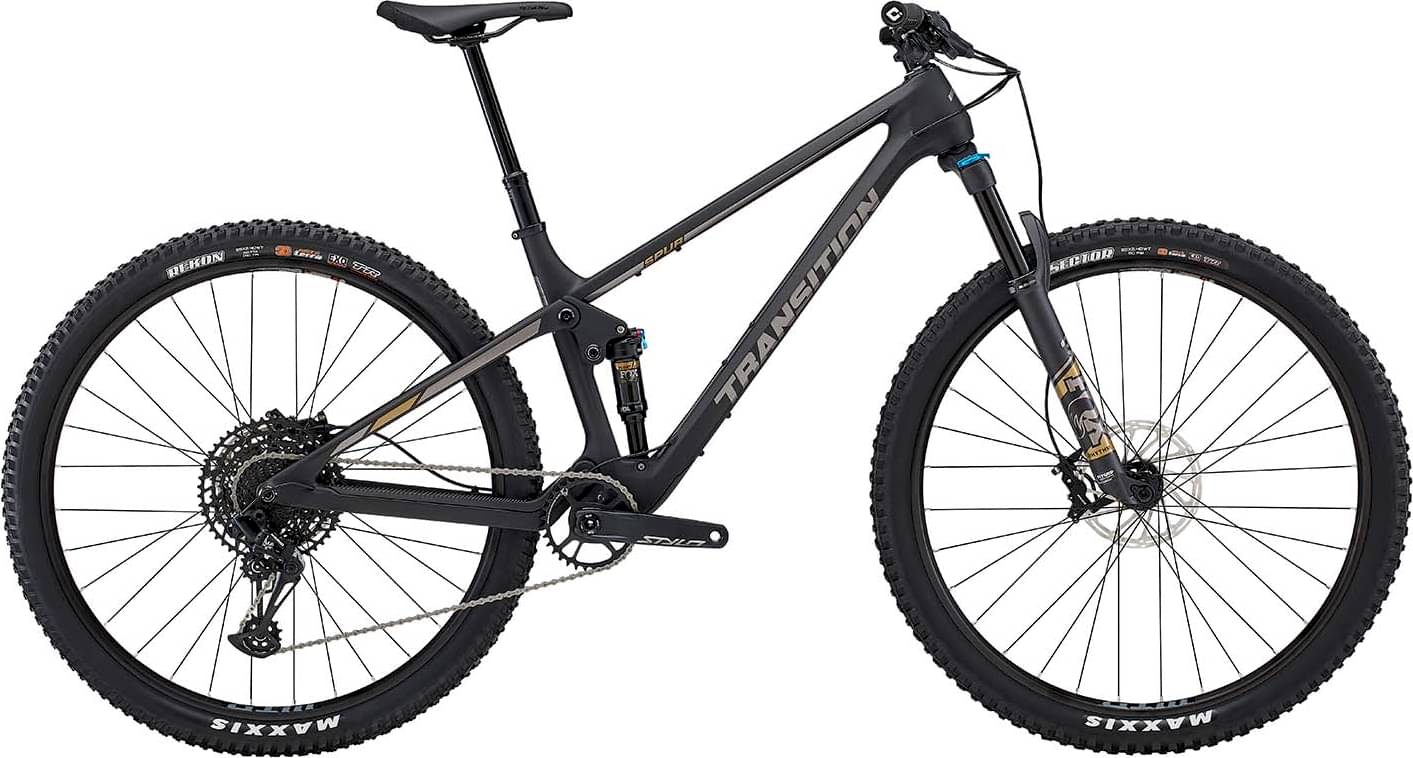

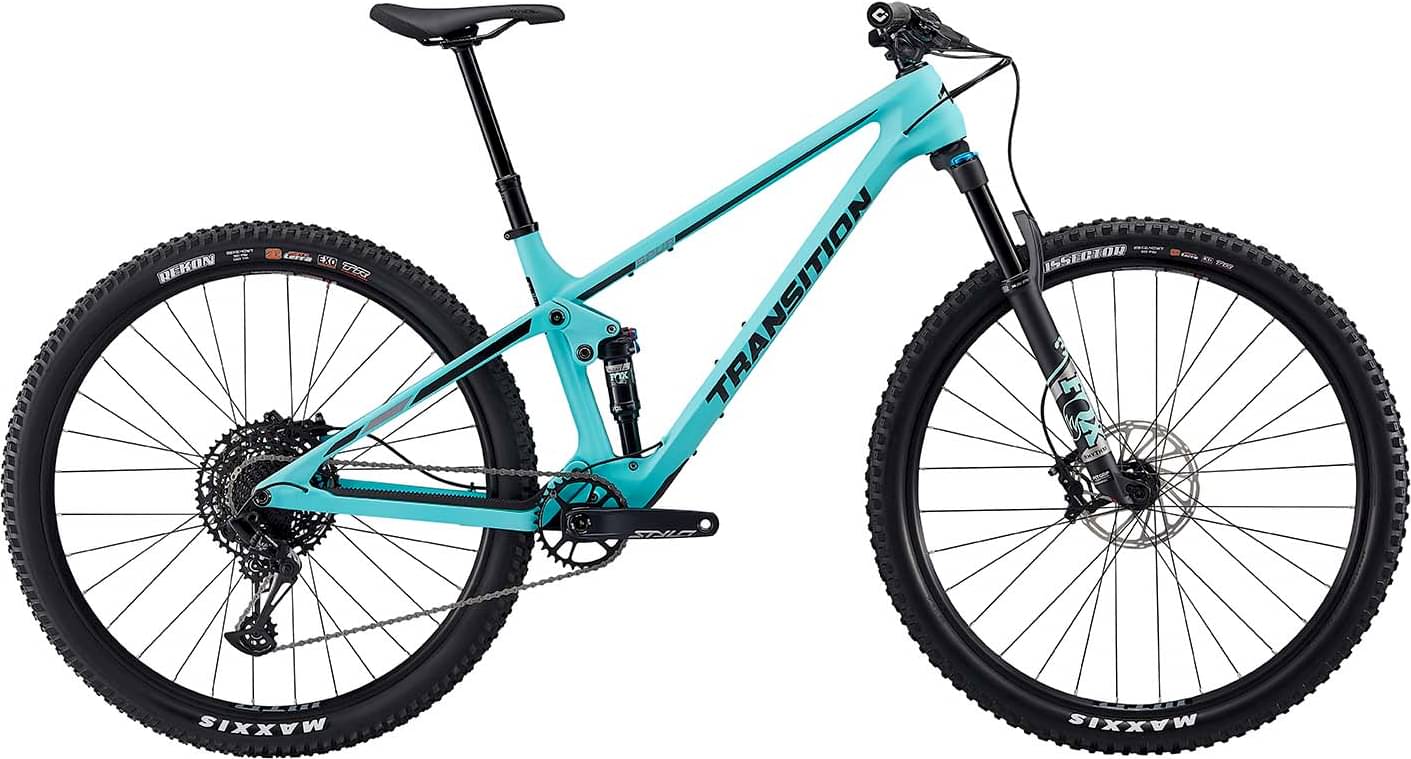

Transition Spur NX 2023
2023 Mountain
Estimate price |
4,999$
Weight | 13.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spur Carbon 120mm
Suspension Fork
Fox Float 34 Rhythm, (120mm)
Rear Shock
Fox DPS Performance, (190x45mm)
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM XG 1230 (10-50t)
Crank
SRAM Stylo 6k DUB, (32t/170mm)
Bottom Bracket
73mm BSA Threaded
Chain
SRAM NX Eagle
Wheels
Front Hub
Novatech D791SB/D902SB
Rear Hub
Novatech D791SB/D902SB
Rims
WTB ST i25
Spokes
Pillar Double Butted
Tires
Front: Maxxis Dissector 3C EXO (2.4), Rear: Maxxis Rekon 3C EXO (2.4)
Brakes
Brakes
SRAM G2 R
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Aeffect R, SM/MD(780mm x 20mm) LG/XL(780x35)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
SDG Bel Air 3
Seatpost
OneUp Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 724 mm | 758 mm | 787 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 597 mm | 607 mm | 616 mm | 629 mm |
| Reach | 422 mm | 452 mm | 477 mm | 507 mm |
| Top Tube Length | 566 mm | 599 mm | 627 mm | 661 mm |
| Seat Tube Angle | 76.7 ° | 76.2 ° | 75.9 ° | 75.6 ° |
| Seat Tube Length | 380 mm | 410 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1153 mm | 1187 mm | 1216 mm | 1252 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 659 mm | 664 mm | 667 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Spur NX completes the Transition Spur model. Transition released 17 bikes variations of this model so far. You can easily view all of the Transition Spur bikes models from 2023, here.
Model range prices
Transition Spur Deore Group 2023 is the most affordable bike of this model and has a price of 4999$. On the other hand, Transition Spur AXS 2023, is the most expensive and costs 8499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4999$. Doing a quick comparison, we notice that Spur NX price is 80.99% more expensive than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Spur NX has a weight of 13.51 kg (29.78 lbs). In conclusion, the average Trail bike weighs 4.08% less than Spur NX.
Spur NX components
Fork
Transition Spur NX 2023 bike is equipped with the Fox Rhythm Float 34 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox DPS Performance model, with a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Spur NX 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spur NX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Spur NX comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
