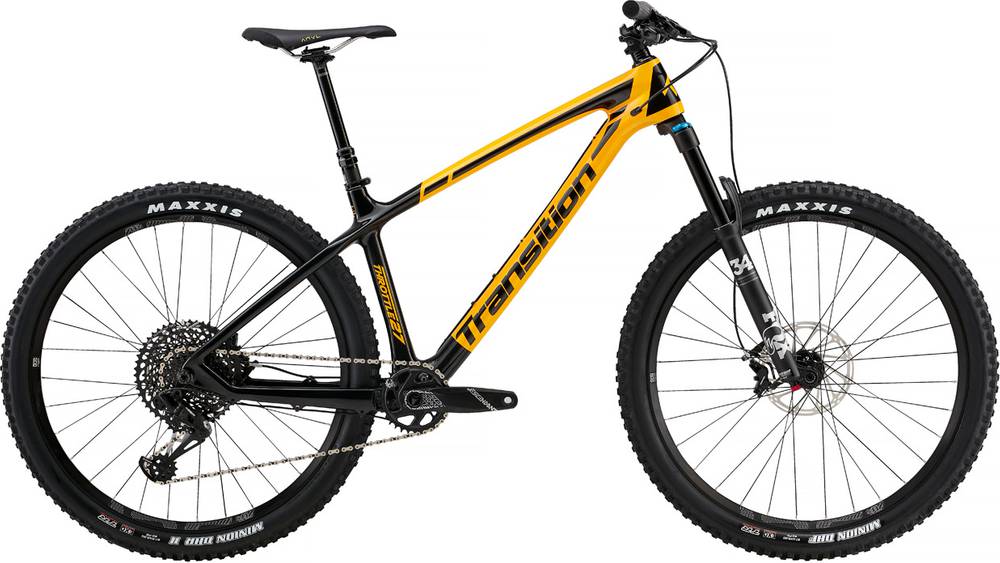

Transition Throttle Complete GX 2019
2019 Mountain
Estimate price |
3,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Throttle CARBON/140mm Front
Suspension Fork
Fox 34 Float Grip Performance 140mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG 1275 (10-50t)
Crank
SRAM Descendent 6K DUB (170mm x 32t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Sentry S1 Comp
Tires
Front: Maxxis Minion DHF Dual EXO(27.5x2.6), Rear: Maxxis Minion DHRII Dual EXO(27.5x2.6)
Brakes
Brakes
SRAM Guide R
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect R (50mm)
Handlebar
RaceFace Aeffect R (780mm x 20mm)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Stealth Cromo
Seatpost
RaceFace Aeffect Dropper (150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.45 mm | 1.38 mm | 1.31 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 688 mm | 722 mm | 756 mm | 790 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 605 mm | 614 mm | 623 mm | 632 mm |
| Reach | 392 mm | 422 mm | 452 mm | 482 mm |
| Top Tube Length | 565 mm | 598 mm | 630 mm | 663 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1107 mm | 1141 mm | 1175 mm | 1209 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 660 mm | 679 mm | 684 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
Throttle Complete GX is a Transition Throttle model. 6 bikes variations carry this model name so far. You can easily view all of the Transition Throttle bikes models from 2019, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Transition released this model in 2019, its price was 3699$. Comparing this to the average Trail bike price, we see that the price is 33.92% higher.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Throttle Complete GX model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Throttle Complete GX comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Transition Throttle Complete GX includes a dropper post. Therefore, climbing or descending will be a breeze.
