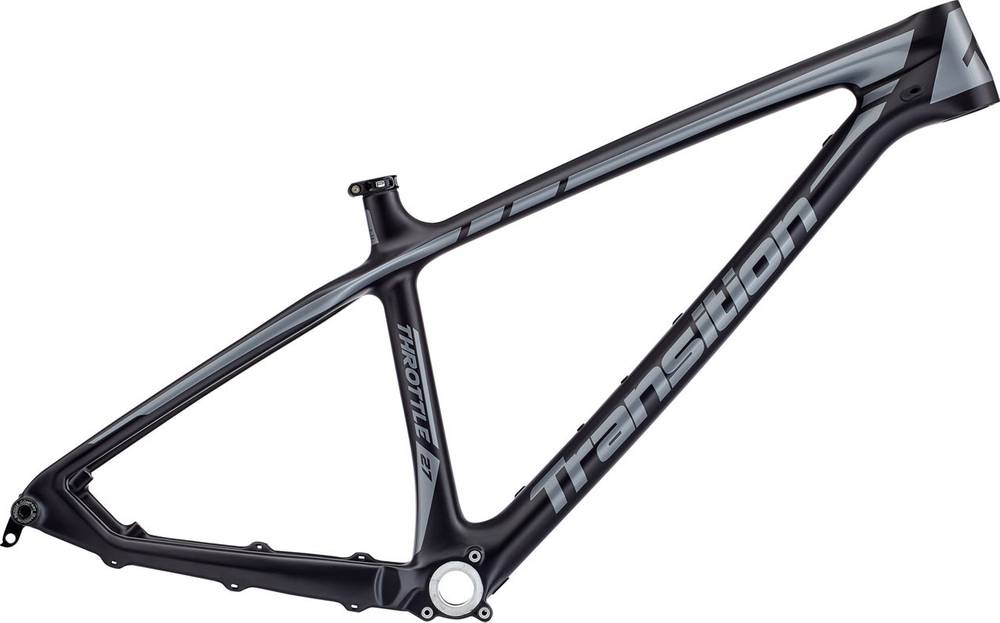

Transition THROTTLE Frameset 2018
2018 Mountain
Estimate price |
1,699$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Front Derailleur
No Support
Bottom Bracket
73mm BSA Threaded
Brakes
Brakes
160mm Post Mount
Cockpit
Headset
44mm Zero Stack (Top) / 56mm Zero Stack (Bottom)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.45 mm | 1.38 mm | 1.31 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 688 mm | 722 mm | 756 mm | 790 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 605 mm | 614 mm | 623 mm | 632 mm |
| Reach | 392 mm | 422 mm | 452 mm | 482 mm |
| Top Tube Length | 565 mm | 598 mm | 630 mm | 663 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1107 mm | 1141 mm | 1175 mm | 1209 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 660 mm | 679 mm | 684 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
THROTTLE Frameset is part of the Transition Throttle model. 6 frames variations carry this model name so far. You can easily view all of the Transition Throttle frames models from 2018, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Transition released this model in 2018, its price was 1699$. In conclusion, this frame price is 2.18% smaller than the price of the average Trail frame.
Overview of components
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition THROTTLE Frameset is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
THROTTLE Frameset comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
