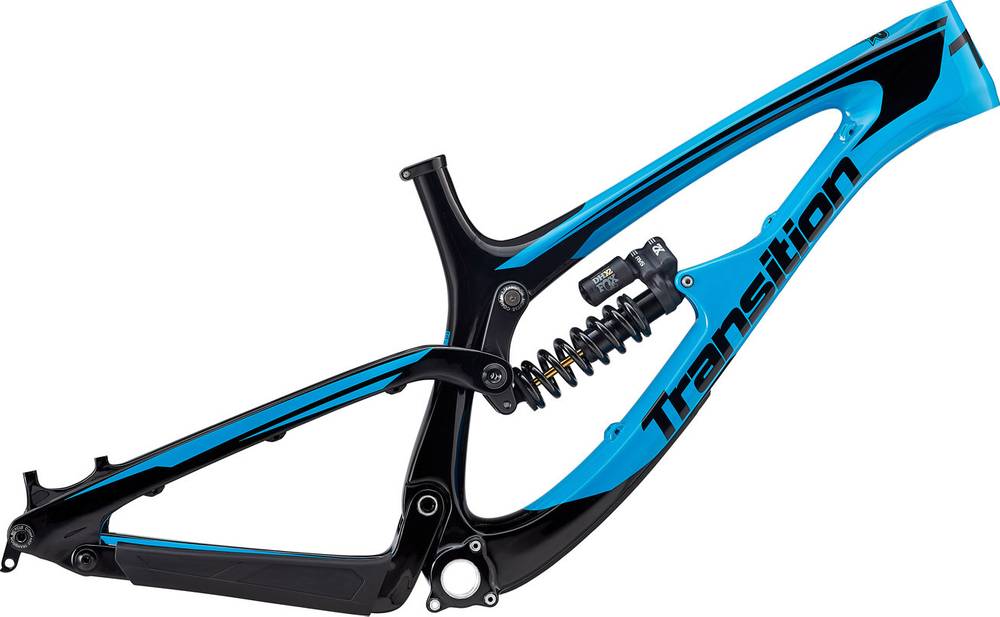

Transition TR11 Frameset 2018
2018 Mountain
Estimate price |
3,199$
Weight | 4.18 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Front Derailleur
No Support
Bottom Bracket
83mm BSA Threaded
Brakes
Brakes
160mm Post Mount
Cockpit
Headset
44mm Zero Stack (Top) / 56mm Zero Stack (Bottom)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 777 mm | 799 mm | 822 mm | 844 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 615 mm | 619 mm | 624 mm | 628 mm |
| Reach | 416 mm | 436 mm | 456 mm | 476 mm |
| Top Tube Length | 574 mm | 597 mm | 619 mm | 641 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 420 mm | 430 mm | 430 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1215 mm | 1237 mm | 1260 mm | 1282 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 691 mm | 691 mm | 691 mm | 691 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
TR11 Frameset is part of the Transition Tr11 model. There are 26 frames that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill frames
Our math shows that the average cost of a dependable Downhill frame is 1923$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Transition released this model in 2018, its price was 3199$. If we compare this with the average Downhill frame cost we notice that the price is 66.35% more expensive.
Downhill frames average weight
If we make a quick analysis of the average weight of a Downhill frame, we get 4.28 kg (9.44 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Transition TR11 Frameset it’s weighing 4.18 kg (9.22 lbs). At this weight, is slightly lighter than average. To sum up, it’s 2.39% lighter than the average weight of Downhill frames.
TR11 Frameset components
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition TR11 Frameset is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
TR11 Frameset comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
