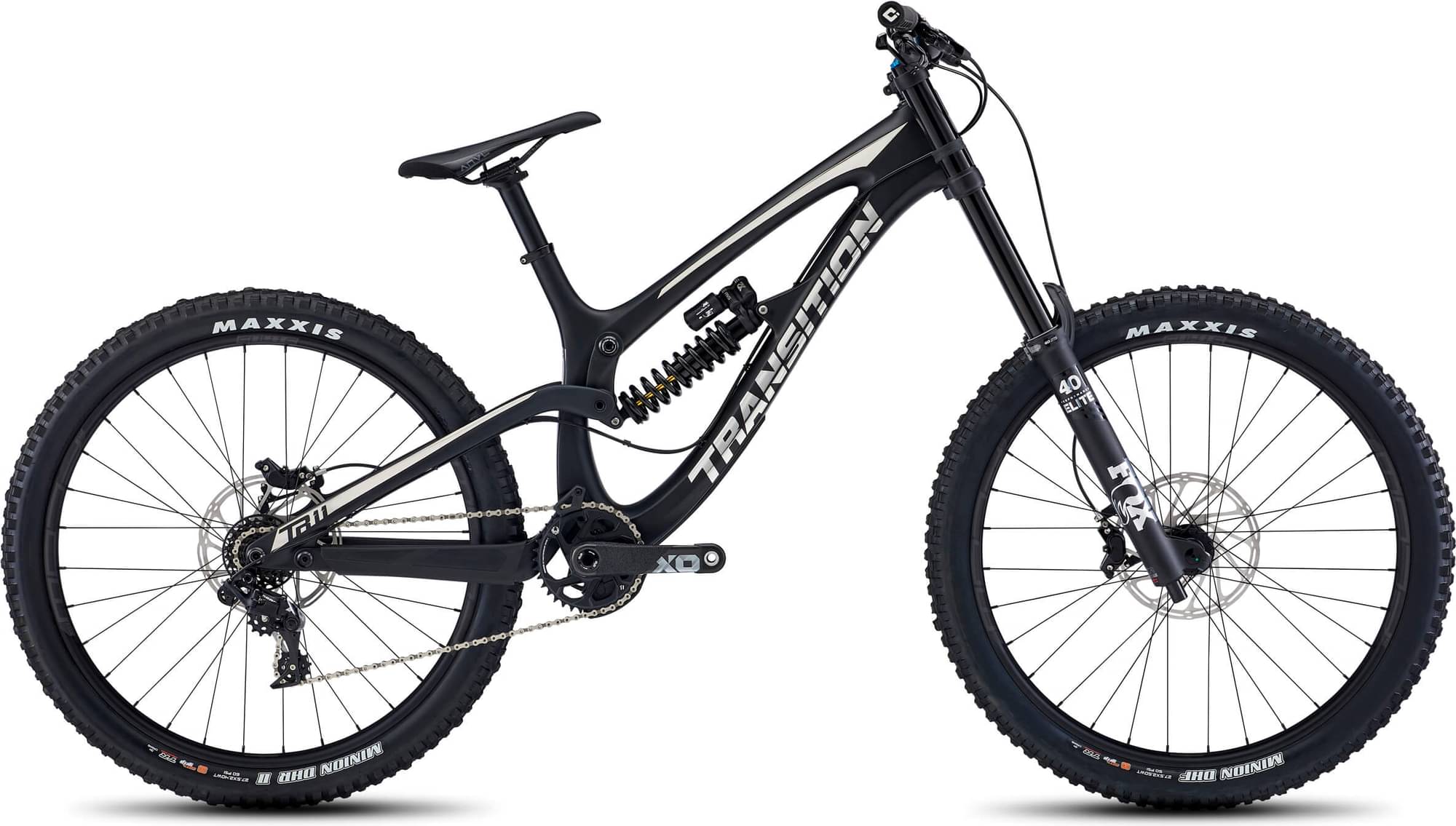

Transition TR11 GX 2022
2022 Mountain
Estimate price |
5,299$
Weight | 15.56 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Select
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR11 Carbon 200mm Rear/200mm Front
Suspension Fork
RockShox Boxxer Select, 200mm Travel/46mm Offset
Rear Shock
RockShox Super Deluxe Coil Ultimate DH, SM - 400lb / MD - 450lb / LG - 500lb / XL - 550lb
Drivetrain
Rear Derailleur
SRAM GX DH
Shift Levers
SRAM GX DH
Cassette
SRAM PG 720 (11-25t)
Crank
SRAM Descendent DH DUB (36t/165mm)
Chain
SRAM PC 1130
Chain Guide
One Up Bash Guide
Wheels
Rims
Stans Flow S1 w/Novatech D951SB/DH82SB Hubs
Tires
Front: Maxxis Minion DHF 3C DH (27.5 x 2.5), Rear: Maxxis Minion DHRII 3C DH (27.5 x 2.4)
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline (200mm)
Cockpit
Stem
RaceFace Chester DM 50mm
Handlebar
RaceFace Chester 35, SM (780mm x 20mm), MD/LG/XL (780mm x 35mm)
Grips
ODI Elite Flow
Headset
Transition Reach Adjust
Seat
Saddle
ANVL Forge Cromo
Seatpost
JD SP66
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.38 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 777 mm | 807 mm | 832 mm | 861 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 613 mm | 613 mm | 622 mm |
| Reach | 418 mm | 443 mm | 468 mm | 493 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1220 mm | 1250 mm | 1275 mm | 1304 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 688 mm | 688 mm | 688 mm | 688 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
About this model
TR11 GX is a Transition Tr11 model. 26 bikes variations carry this model name so far. Take a sneak peek at all Transition Tr11 bikes models from 2022, by clicking here.
Model range prices
Transition TR11 GX 2022 is the most affordable bike of this model and has a price of 5299$. On the other hand, Transition TR11 XO1 2022, is the most expensive and costs 7299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Transition released this model in 2022, its price was 5299$. Comparing this to the average Downhill bike price, we see that the price is 56.27% more expensive.
Average weight for Downhill bikes
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 15.56 kg (34.3 lbs), the TR11 GX model is slightly lighter than average. To sum up, it’s 2.12% lighter than the average weight of Downhill bikes.
Overview of components
Fork
The fork installed on this bike is the RockShox BoXXer Select model. The travel on this model is 200mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Coil Ultimate DH, with a travel distance of 200mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the TR11 GX model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The TR11 GX has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
