Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 195mm -
Fork Fox Performance Elite Float 40
-
Groupset X01, Race Face -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float 40 RC2 Performance Elite
Rear Shock
FOX Factory DHX2, 222mm x 70mm
Drivetrain
Rear Derailleur
SRAM X01 DH, 7-Speed, clutch
Front Derailleur
N/A
Shift Levers
SRAM X01 DH, 7-Speed
Cassette
e*thirteen 7-Speed Integrated, 9-21 tooth
Crank
Race Face SixC, 165mm length
Bottom Bracket
83mm English threaded
Chain
SRAM PCX1
Chain Guide
e*thirteen LG1+ Top Guide, bash guard
Pedals
N/A
Wheels
Front Hub
e*thirteen LG1+
Rear Hub
e*thirteen LG1+
Rims
e*thirteen LG1+
Tires
Maxxis Minion DHF | Maxxis Minion DHR II, 27.5" x 2.5" 3C Maxx Grip DH
Brakes
Brakes
SRAM Code RSC calipers, SRAM Centerline 203mm rotors
Brake Levers
SRAM Code RSC
Cockpit
Stem
Race Face Atlas 35 DM, 50mm length
Handlebar
Race Face Atlas 35, 800mm width
Grips
ODI Elite Flow Lock On
Headset
Cane Creek 40 Series, zero-stack
Seat
Saddle
ANVL Sculpt Cromo
Seatpost
Thomson Elite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 777 mm | 799 mm | 822 mm | 835 mm |
| Rake | 52 mm | 52 mm | 52 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 132 mm |
| Stack | 615 mm | 619 mm | 624 mm | 628 mm |
| Reach | 416 mm | 436 mm | 456 mm | 476 mm |
| Top Tube Length | 574 mm | 597 mm | 619 mm | 641 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 420 mm | 430 mm | 430 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1215 mm | 1237 mm | 1260 mm | 1273 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 691 mm | 691 mm | 691 mm | 691 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |

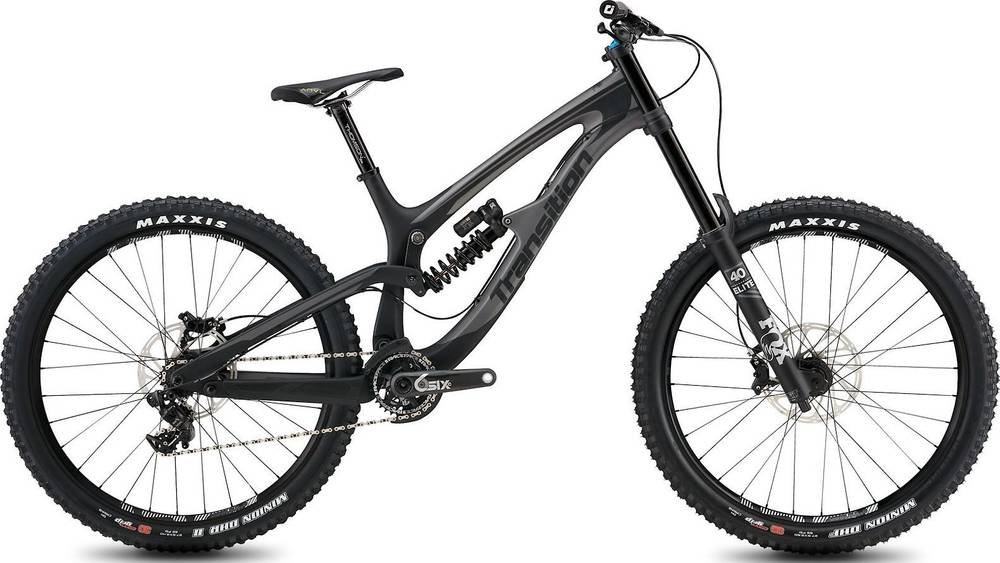

About this model
TR11 X01 DH is a Transition Tr11 model. 26 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Transition TR11 GX DH 2018 is the most affordable bike of this model and has a price of 5299$. On the other hand, Transition TR11 XO1 2018, is the most expensive and costs 7299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Transition released this model in 2018, its price was 7299$. Comparing the average cost of a Downhill bike to this one, you will see that TR11 X01 DH price is 115.25% higher.
TR11 X01 DH components
Fork
Transition TR11 X01 DH 2018 bike is equipped with the Fox Performance Elite Float 40 fork, and has 200mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The TR11 X01 DH has a rear shock with a travel of 195mm. The model FOX Factory DHX2 is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on TR11 X01 DH are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition TR11 X01 DH is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Transition TR11 X01 DH bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
