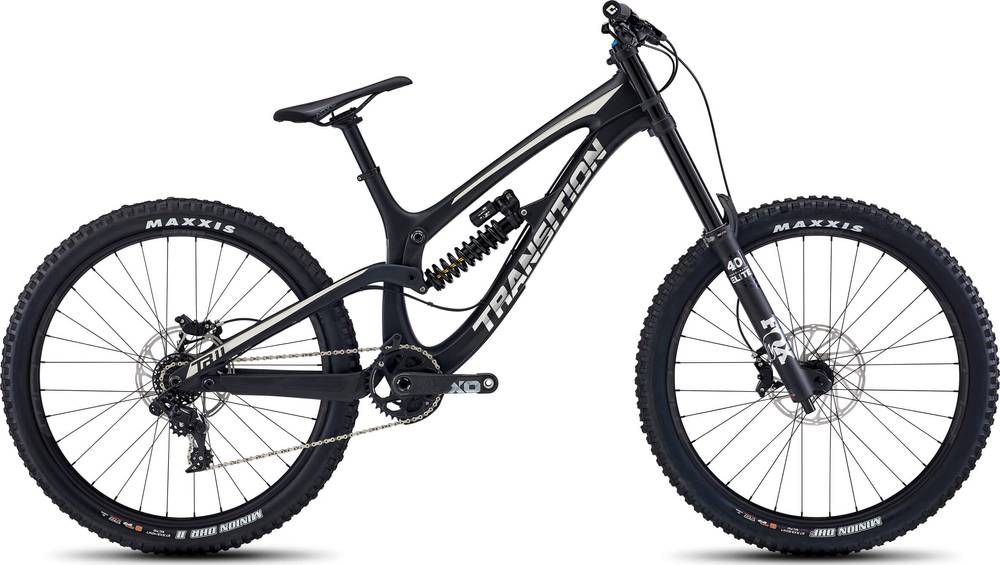

Transition TR11 XO1 2020
2020 Mountain
Estimate price |
7,299$
Weight | 15.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Performance Elite Float 40
-
Groupset X01, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TR11 Carbon 200mm Rear/200mm Front
Suspension Fork
Fox Float 40 Grip 2 Performance Elite, 203mm Travel/52mm Offset
Rear Shock
Fox DHX2 Factory, SM - 400lb / MD - 450lb / LG - 500lb / XL - 550lb
Drivetrain
Rear Derailleur
SRAM XO1 DH
Shift Levers
SRAM XO1 DH
Cassette
SRAM XG 795 (10-24t)
Crank
SRAM Descendent Carbon DH DUB (36t/165mm)
Chain
SRAM PC 1170
Chain Guide
One Up Bash Guide
Wheels
Rims
Stans Flow EX3 Team
Tires
Front: Maxxis Minion DHF 3C DH (27.5 x 2.5), Rear: Maxxis Minion DHRII 3C DH (27.5 x 2.4)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline (203/200mm)
Cockpit
Stem
RaceFace Atlas DM 50mm
Handlebar
ANVL Mandrel 35, SM (800mm x 20mm), MD/LG (800mm x 30mm), XL (800mm x 40mm)
Grips
ODI Elite Flow
Headset
Transition Reach Adjust
Seat
Saddle
ANVL Forge Ti
Seatpost
JD SP66
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.38 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 777 mm | 807 mm | 832 mm | 861 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 613 mm | 613 mm | 622 mm |
| Reach | 418 mm | 443 mm | 468 mm | 493 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1220 mm | 1250 mm | 1275 mm | 1304 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 688 mm | 688 mm | 688 mm | 688 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
TR11 XO1 belongs to the Transition Tr11 model. There are 26 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Transition TR11 GX 2020 is the most economical model, with a starting price of 5299$. Transition TR11 CARBON COMPLETE XO1 2020 on the other hand costs 7299$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7299$. In conclusion, this bike price is 115.25% higher than the price of the average Downhill bike.
Downhill bikes average weight
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Transition TR11 XO1 it’s weighing 15.38 kg (33.91 lbs). At this weight, is slightly lighter than average. To sum up, it’s 3.32% lighter than the average weight of Downhill bikes.
TR11 XO1 components
Fork
The fork installed on this bike is the Fox Performance Elite Float 40 model. The travel on this model is 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The TR11 XO1 has a rear shock with a travel of 200mm. The model Fox DHX2 Factory is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the TR11 XO1 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition TR11 XO1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
