Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Sizing
Recommended size guide.
47cm
151cm - 159cm
50cm
156cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum
Suspension Fork
Trek carbon road, SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora, 34.9mm clamp
Shift Levers
Shimano Sora STI, 9 speed
Cassette
SRAM PG-950 11-28, 9 speed
Crank
FSA Vero 50/34 (compact)
Pedals
Nylon body w/alloy cage
Wheels
Rims
Alloy hubs w/Bontrager Approved alloy rims
Tires
Bontrager T1, 700x23c
Brakes
Brakes
Alloy dual-pivot brakes w/Shimano 2300 STI levers
Cockpit
Stem
Bontrager SSR, 31.8mm, 10 degree
Handlebar
Bontrager Race VR-C, 31.8mm
Headset
1-1/8" semi-cartridge bearings
Seat
Saddle
Bontrager Affinity 1, steel rails
Seatpost
Bontrager Race, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 156 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

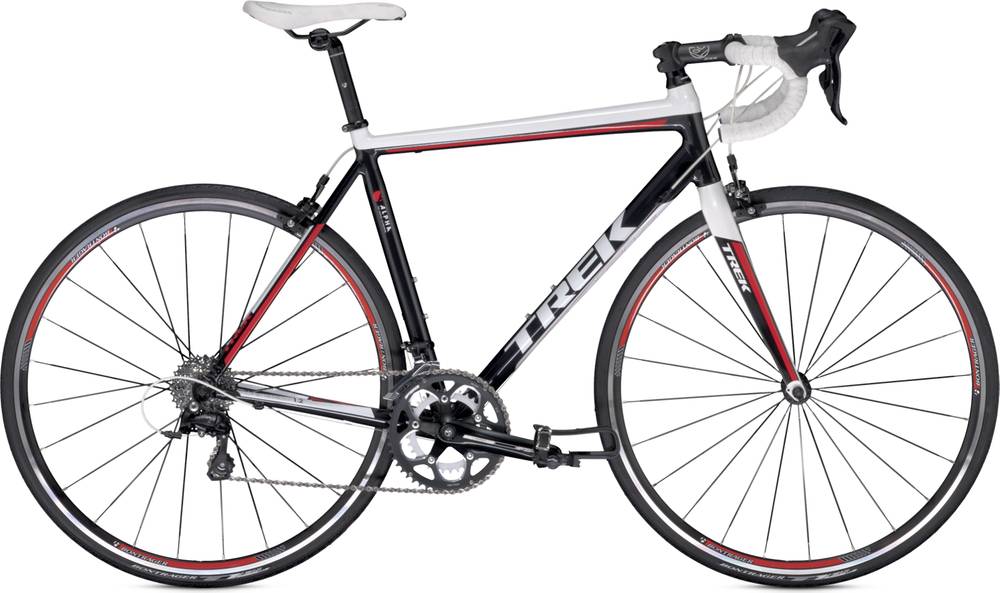

1.2 H2 (Compact) completes the Trek 12 model. There are 16 bikes that carry this model name. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
1.2 H2 (Compact) components
Fork material
1.2 H2 (Compact) has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the 1.2 H2 (Compact) model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The 1.2 H2 (Compact) has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
1.2 H2 (Compact) comes in 8 sizes, that range from 151 cm – 195 cm (4.95 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
