Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trek butted chromoly disc touring, rack & fender mounts
Suspension Fork
Chromoly Touring Disc w/lowrider mounts
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Dura-Ace bar end control, 9 speed
Cassette
Shimano HG50, 11-32, 9 speed
Crank
Shimano Trekking M590 48/36/26 w/chainguard
Pedals
Wellgo nylon body w/alloy cage, toe-clip/strap
Wheels
Rims
Shimano M475 hubs, Bontrager Tubeless Ready rims
Tires
Bontrager AW1 Hard-Case, 700x32c
Brakes
Brakes
Hayes CX Expert mechanical disc brakes, Tektro RL340 alloy levers
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts
Handlebar
Bontrager Race, VR-C, 31.8mm
Headset
VP Slimstak, sealed semi-cartridge bearings
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

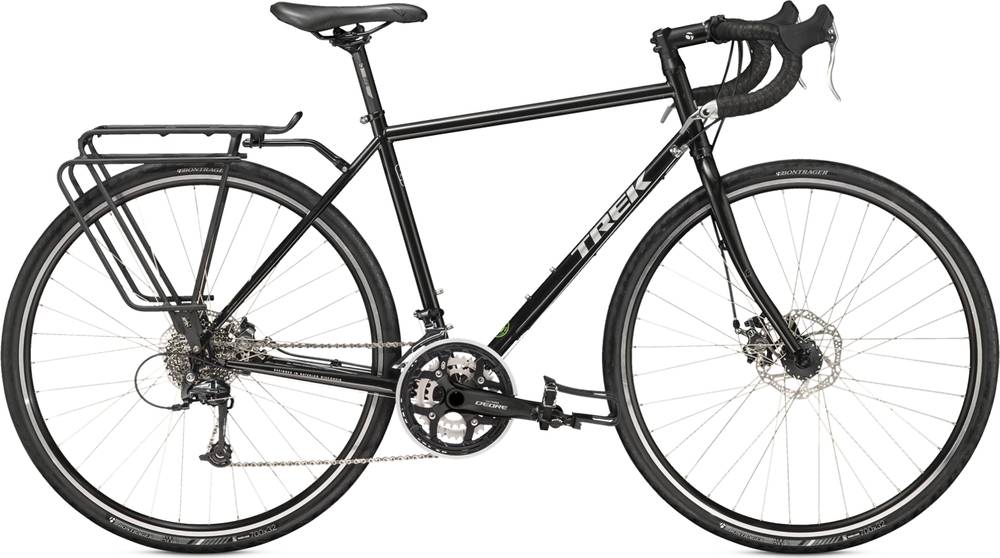

520 Disc is part of the Trek 520 model. 39 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Touring bikes average price
According to our math, the average price for a trustworthy Touring bike is 1007$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When it comes to wheels, the 520 Disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek 520 Disc is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
