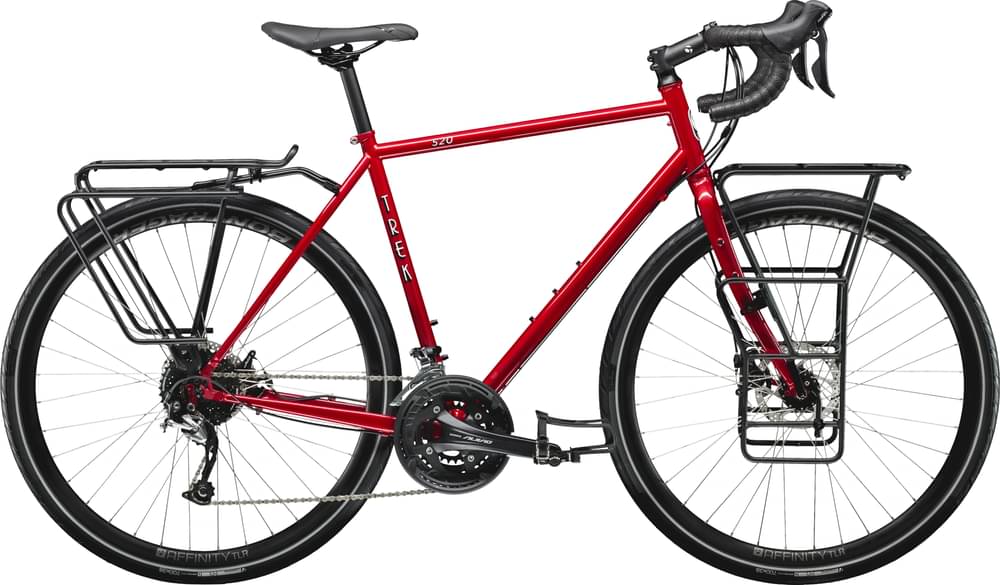

Trek 520 Disc 2022
2022 Road
Estimate price |
2,063$
Weight | 14.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Alivio, Sora -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
158cm - 164cm
51cm
161cm - 169cm
54cm
167cm - 175cm
57cm
172cm - 186cm
60cm
183cm - 191cm
63cm
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trek butted chromoly disc touring, rack and mudguard mounts, 135x5 mm QR
Suspension Fork
520 alloy disc touring, rack mounts, 100x5 mm ThruSkew
Drivetrain
Rear Derailleur
Shimano Alivio M4000, long cage, 36T max cog
Front Derailleur
Shimano Sora R3030, 34.9 mm (w/28.6 adapter) clamp
Shift Levers
Size: 48, 51, 54, 57, 60, 63, Shimano Sora R3000, 9-speed; Size: 48, 51, 54, 57, 60, 63, Shimano Sora R3030, 3-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: 48, 51, Shimano Alivio T4060, 48/36/26, 2-piece w/chain guard, 170 mm length; Size: 54, 57, 60, 63, Shimano Alivio T4060, 48/36/26, 2-piece w/chain guard, 175 mm length
Chain
KMC X9
Wheels
Front Hub
Shimano M475, 6-bolt disc, 100x5 mm QR
Rear Hub
Shimano M475, 6-bolt disc, 135x5 mm QR
Rims
Bontrager Affinity Disc, Tubeless Ready, 36-hole, 21 mm width, presta valve
Spokes
14 g stainless steel
Tires
Bontrager H1 Hard-case Ultimate, 700x38c w/reflective sidewall
Brakes
Brakes
TRP Spyre C 2.0 mechanical disc, 160 mm rotor
Cockpit
Stem
Size: 48, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: 51, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: 54, 57, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length; Size: 60, 63, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: 48, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width; Size: 51, 54, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width; Size: 57, 60, 63, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Headset
1-1/8" threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Evoke
Seatpost
Size: 48, Bontrager alloy, 27.2 mm, 12 mm offset, 250 mm length; Size: 51, 54, 57, 60, 63, Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.47 mm | 1.49 mm | 1.52 mm | 1.59 mm | 1.63 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 602 mm | 606 mm | 608 mm | 611 mm | 633 mm | 645 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 74 mm | 71 mm | 65 mm | 59 mm | 59 mm | 56 mm |
| Stack | 546 mm | 557 mm | 571 mm | 593 mm | 631 mm | 661 mm |
| Reach | 374 mm | 379 mm | 384 mm | 389 mm | 398 mm | 406 mm |
| Top Tube Length | 526 mm | 537 mm | 549 mm | 563 mm | 589 mm | 609 mm |
| Seat Tube Angle | 74.3 ° | 74 ° | 73.8 ° | 73.5 ° | 73 ° | 72.8 ° |
| Seat Tube Length | 440 mm | 482 mm | 512 mm | 543 mm | 575 mm | 605 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71.8 ° | 71.8 ° | 72.3 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 160 mm | 200 mm | 230 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1047 mm | 1051 mm | 1054 mm | 1058 mm | 1080 mm | 1092 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 719 mm | 747 mm | 774 mm | 800 mm | 832 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 161 cm | 167 cm | 172 cm | 183 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 186 cm | 191 cm | 197 cm |
About this model
520 Disc is a Trek 520 model. Trek released 39 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Trek 520 2022 is the most affordable bike of this model and has a price of 1799$. On the other hand, Trek 520 Disc 2022, is the most expensive and costs 1910$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Touring bikes
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1910$. Doing a quick comparison, we notice that 520 Disc price is 89.67% higher than the average cost of a Touring bike.
Touring bikes average weight
The average weight for Touring bikes is 13.35 kg (29.43 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek 520 Disc it’s weighing 14.24 kg (31.39 lbs). At this weight, is a bit heavier than average. In conclusion, the average Touring bike weighs 6.67% less than 520 Disc.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The 520 Disc 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Trek 520 Disc bike has 6 sizes, in the range of 158 cm – 197 cm (5.18 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
