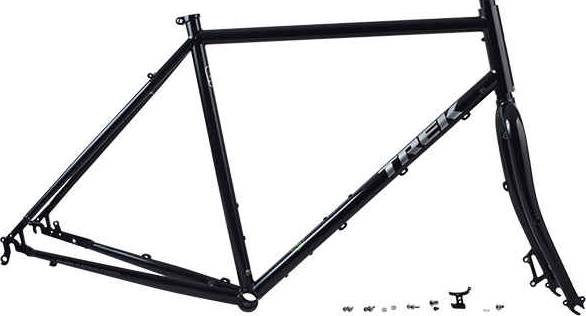

Trek 520 Disc Frameset 2018
2018 Road
Estimate price |
639$
Weight | 3.57 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trek butted chromoly disc touring, rack & fender mounts
Suspension Fork
Chromoly touring disc w/lowrider mounts
Cockpit
Headset
1-1/8? threadless, sealed cartridge bearings
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 54cm | 60cm |
|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.61 mm |
| Bottom Bracket Height | 278 mm | 278 mm |
| Front Center | 608 mm | 633 mm |
| Rake | 52 mm | 52 mm |
| Trail | 65 mm | 59 mm |
| Stack | 558 mm | 618 mm |
| Reach | 371 mm | 385 mm |
| Top Tube Length | 536 mm | 576 mm |
| Seat Tube Angle | 73.8 ° | 73 ° |
| Seat Tube Length | 512 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.8 ° |
| Head Tube Length | 140 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm |
| Wheelbase | 1041 mm | 1067 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 761 mm | 819 mm |
| Wheels | 700 | 700 |
Model Overview
520 Disc Frameset completes the Trek 520 model. There are 39 frames that carry this model name. Take a sneak peek at all Trek 520 frames models from 2018, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Touring frames
If you want an acceptable Touring frame you should know that the average price is 535$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Trek 520 Disc Frameset price was 639$. Comparing the average cost of a Touring frame to this one, you will see that 520 Disc Frameset price is 19.44% more expensive.
Average weight for Touring frames
On a deeper look, we notice that the average weight of a Touring frame is 2.94 kg (6.48 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek 520 Disc Frameset it’s weighing 3.57 kg (7.87 lbs). At this weight, is much heavier than average. In other words, this model is 21.43% heavier than the average Touring frame.
Overview of components
Fork material
When it comes to the fork, this frame has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
