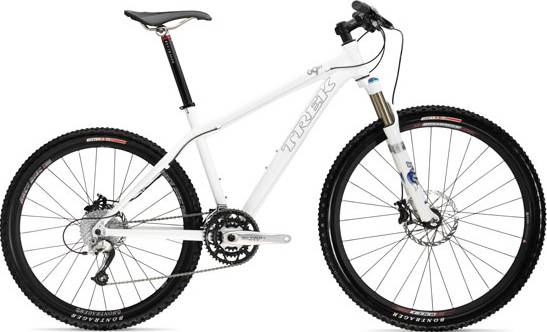

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" / 26" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/internally and externally relieved head tube, hydroformed top tube, bi-axial down tube, wishbone seat stay, hydroformed chainstays, forged and relieved disc ready dropouts
Drivetrain
Rear Derailleur
Shimano Deore XT "Shadow"
Front Derailleur
Shimano Deore LX
Shift Levers
Shimano Deore LX, 9 speed
Cassette
SRAM PG970 11-32, 9 speed
Crank
Shimano Deore 44/32/22
Pedals
n/a
Wheels
Rims
Bontrager Race; 29" front, 26" rear
Tires
Bontrager Jones XR, 29x2.25" front, 26x2.2" rear; 120tpi, folding
Brakes
Brakes
Avid Juicy 5, hydraulic disc, 185mm front, 160mm rear rotor
Cockpit
Stem
Bontrager Race, 7 degree, 31.8mm
Handlebar
Bontrager Race, 40mm rise, 31.8mm
Headset
Cane Creek ZS-2 w/cartridge bearings, sealed
Seat
Saddle
Bontrager Race
Seatpost
Bontrager Race Lite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
About this model
69er 3×9 belongs to the Trek 69er model. Trek released 5 bikes variations of this model so far. Take a sneak peek at all Trek 69er bikes models from 2008, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Wheels
The 69er 3×9 2008 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek 69er 3×9 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
69er 3×9 comes in 4 sizes, that range from 153 cm – 196 cm (5.02 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
