Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FX Alpha Gold Aluminum w/IsoZone monostay
Suspension Fork
Bontrager Nebula, E2, carbon, SpeedTrap compatible
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano M591 Deore, 10-speed trigger
Cassette
Shimano Deore 11-36, 10-speed
Crank
FSA Vero, 50/34 compact road gearing
Pedals
Resin body w/alloy cage, clips & straps
Wheels
Rims
Bontrager Approved, 24-hole wheelset
Tires
Bontrager Race All-Weather Hard-Case, 700x25c
Brakes
Brakes
Tektro RX 1.0 brakes w/Tektro alloy levers
Cockpit
Stem
Bontrager Race Lite, 7 degree
Handlebar
Bontrager Satellite Plus IsoZone OS, 25mm rise
Headset
FSA E2
Seat
Saddle
Bontrager H2 Flex Form
Seatpost
Bontrager Race
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17.5" | 20" | 22.5" | 25" |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

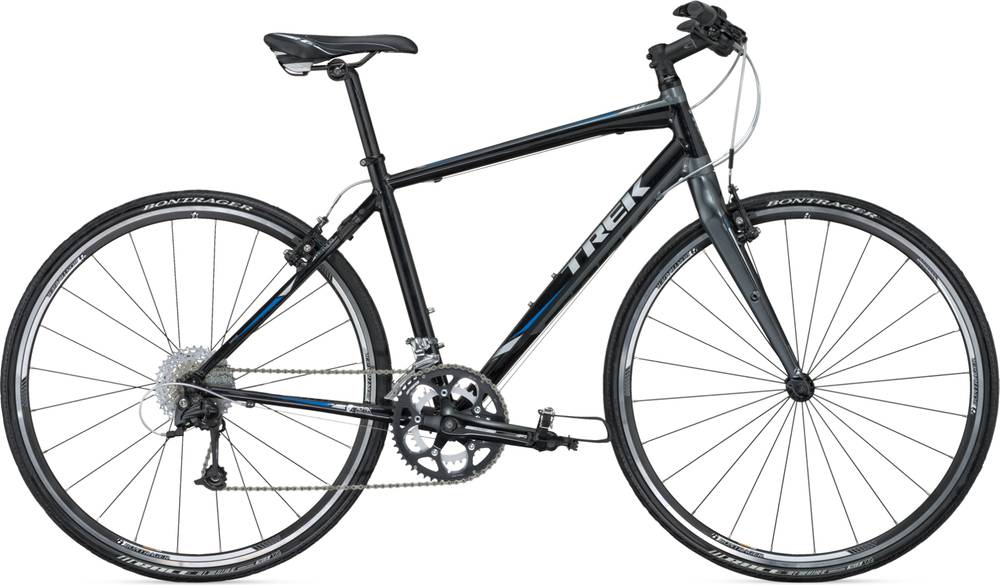

7.6 FX completes the Trek 76 model. 18 bikes variations carry this model name so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Road bikes average price
Our math shows that the average cost of a dependable General Road bike is 1915$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
7.6 FX components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the 7.6 FX bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek 7.6 FX has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
