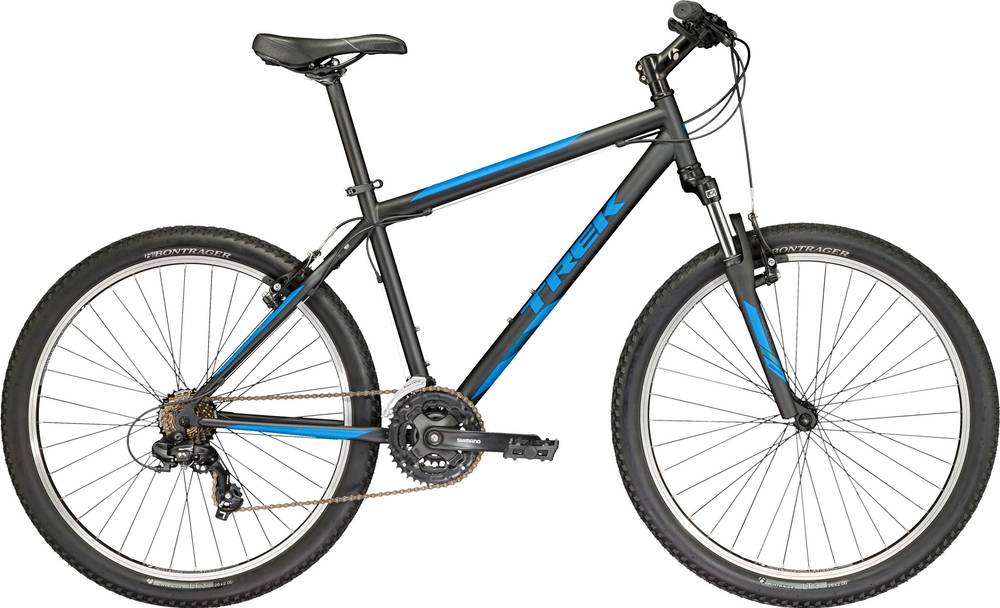

Trek 820 2017
2017 Mountain
Estimate price |
379$
Weight | 15.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 26" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trek Custom Steel
Suspension Fork
SR Suntour M-3030, coil spring, preload, 75mm travel
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
Shimano Tourney TY500
Shift Levers
Shimano Tourney EF40, 7 speed
Cassette
Shimano TZ21 14-28, 7 speed
Crank
Shimano Tourney M131, 42/34/24
Bottom Bracket
Sealed cartridge
Chain
KMC Z51
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula FM21 alloy
Rear Hub
Formula FM31 alloy
Rims
Bontrager AT-550 36-hole alloy
Tires
Bontrager LT3, 26x2.00"
Brakes
Brakes
Tektro alloy linear-pull
Cockpit
Stem
Bontrager alloy, 25.4mm, 25 degree
Handlebar
Bontrager Riser, 25.4mm, 30mm rise
Grips
Bontrager SSR
Headset
1-1/8" threadless
Seat
Saddle
Bontrager SSR
Seatpost
Bontrager SSR, 2-bolt head, 29.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 16" | 18" | 19.5" | 21" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 287 mm | 291 mm | 293 mm | 293 mm | 293 mm |
| Front Center | 589 mm | 610 mm | 627 mm | 638 mm | 649 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Top Tube Length | 522 mm | 548 mm | 563 mm | 578 mm | 588 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 406 mm | 457 mm | 495 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1017 mm | 1038 mm | 1055 mm | 1066 mm | 1077 mm |
| Standover Height | 703 mm | 736 mm | 770 mm | 797 mm | 825 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model
820 completes the Trek 820 model. Trek released 35 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Trek 820 Women’s 2017 has a starting price of 379$. Trek 820 2017 on the other hand is the most expensive at 379$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 379$. In conclusion, this bike price is 402.64% lower than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, 820 has a weight of 15.42 kg (34 lbs). In short, the average Crosscountry bike weight is 24.35% lower than this one.
820 components
Fork
This bike has the SunTour fork installed. The fork’s travel is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the 820 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
