Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset X7, X5 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha aluminum w/rack and fender mounts
Suspension Fork
Trek Adventure alloy disc, 15mm thru-axle
Drivetrain
Rear Derailleur
SRAM X7, Type 2
Front Derailleur
SRAM X5
Shift Levers
SRAM 500 TT, bar end control, 10 speed
Cassette
SRAM PG-1030, 11-36, 10 speed
Crank
SRAM S1000, 42/28T
Wheels
Rims
Bontrager Duster Elite Tubeless Ready, 15mm front, 142x12 rear
Tires
Bontrager XR1, 29x2.0"
Brakes
Brakes
TRP Hylex hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, comes w/ computer & light mounts
Handlebar
Bontrager Race, VR-C, 31.8mm
Headset
FSA IS-3, 1-1/8" threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

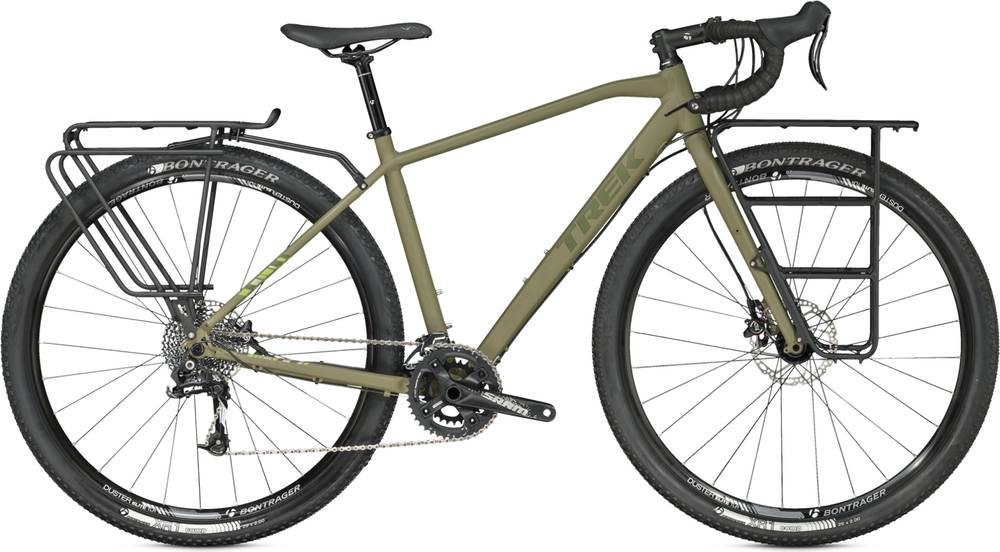

Model Overview
920 Disc is part of the Trek 920 model. Trek launched 14 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring bikes
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, even though the average price of a Touring bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
920 Disc has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the 920 Disc bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Trek 920 Disc bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
