Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Alivio, Shimano -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 aluminum, G2 Geometry, butted and hydroformed tubing, cold-forged dropouts & BB
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano FD-C050
Shift Levers
Shimano ST-EF50 8spd
Cassette
SRAM PG830 11-32 8spd
Pedals
Wellgo LU-984, boron axle, toe clip adapter
Wheels
Rims
Alloy DC20, Shimano M475 hubs, Bontrager 550 rims 36h
Tires
Bontrager LT3 26x2.0
Brakes
Brakes
Promax TKB-320 mechanical disc, 160mm rotors
Cockpit
Stem
Bontrager Approved Alloy, 25d rise
Handlebar
Bontrager Approved Riser, 30mm rise, 620mm width
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager SSR
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

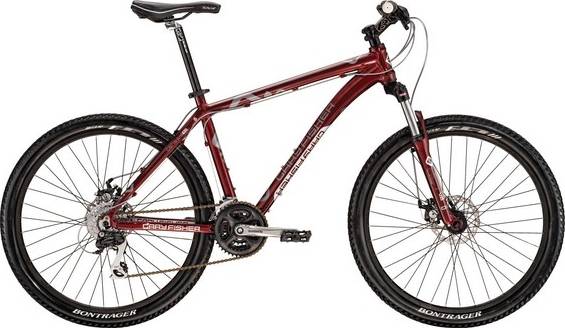

Advance Disc belongs to the Trek Advance model. Trek released 14 bikes variations of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Advance Disc components
Wheels size
When leaving the production line, the Advance Disc model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Advance Disc has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
