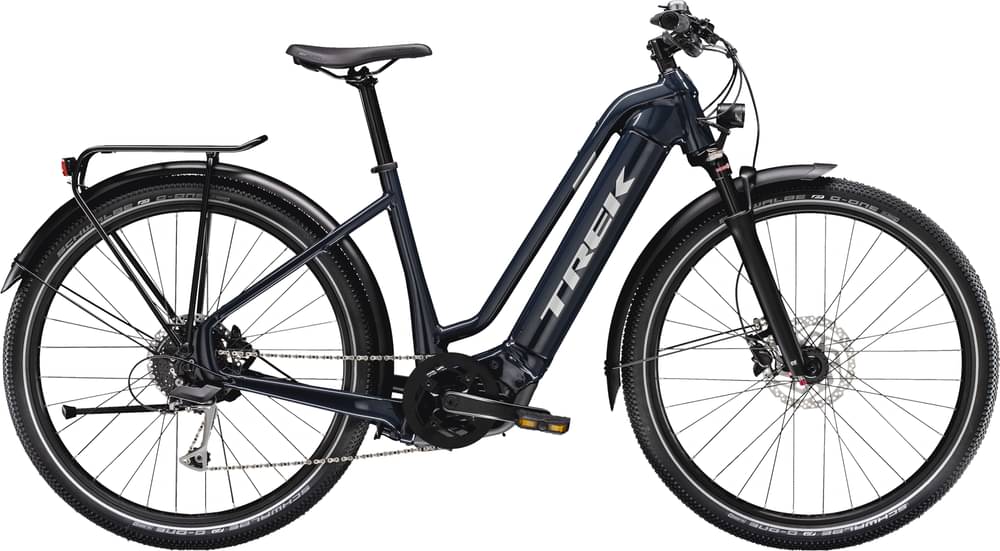

Trek Allant+ 7 Lowstep 2021
2021 E-bike
Estimate price |
3,599$
Weight | 24.86 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 50mm -
Fork SunTour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15mm thru-axle, 50mm travel
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Size: S, M, L, Shimano Alivio M3100, 9 speed; Size: S, M, L, Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
KMC E9S, 9 speed
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Spokes
Size: S, M, L, J-Bend, 14g, Steel, Black; Size: S, M, L, DT Swiss 14g, black
Tires
Schwalbe G-One, 650Bx57c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,180mm
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
Size: S, M, L, FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom; Size: S, M, L, FSA IS-2 alloy, integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.58 mm | 1.65 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 295 mm |
| Front Center | 657 mm | 660 mm | 667 mm |
| Rake | 44 mm | 41 mm | 41 mm |
| Trail | 90 mm | 86 mm | 81 mm |
| Stack | 605 mm | 630 mm | 660 mm |
| Reach | 397 mm | 399 mm | 401 mm |
| Top Tube Length | 582 mm | 592 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1137 mm | 1140 mm | 1147 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 475 mm | 477 mm | 476 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 7 Lowstep is part of the Trek E Allantplus model. There are 60 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Trek Allant+ 7 Lowstep 2021 is the most economical model, with a starting price of 3599$. Trek Allant+ 9.9 Stagger 2021 on the other hand costs 7113$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Allant+ 7 Lowstep price was 3599$. Comparing the average cost of a Commuter e-bike to this one, you will see that Allant+ 7 Lowstep price is 40.09% more expensive.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.86 kg (54.81 lbs), the Allant+ 7 Lowstep model is slightly lighter than average. In short, the average Commuter e-bike weight is 1.37% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This e-bike has the SunTour MOBIE fork installed. The fork’s travel is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Allant+ 7 Lowstep has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Trek Allant+ 7 Lowstep 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Allant+ 7 Lowstep is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trek Allant+ 7 Lowstep e-bike has 3 sizes, in the range of 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
