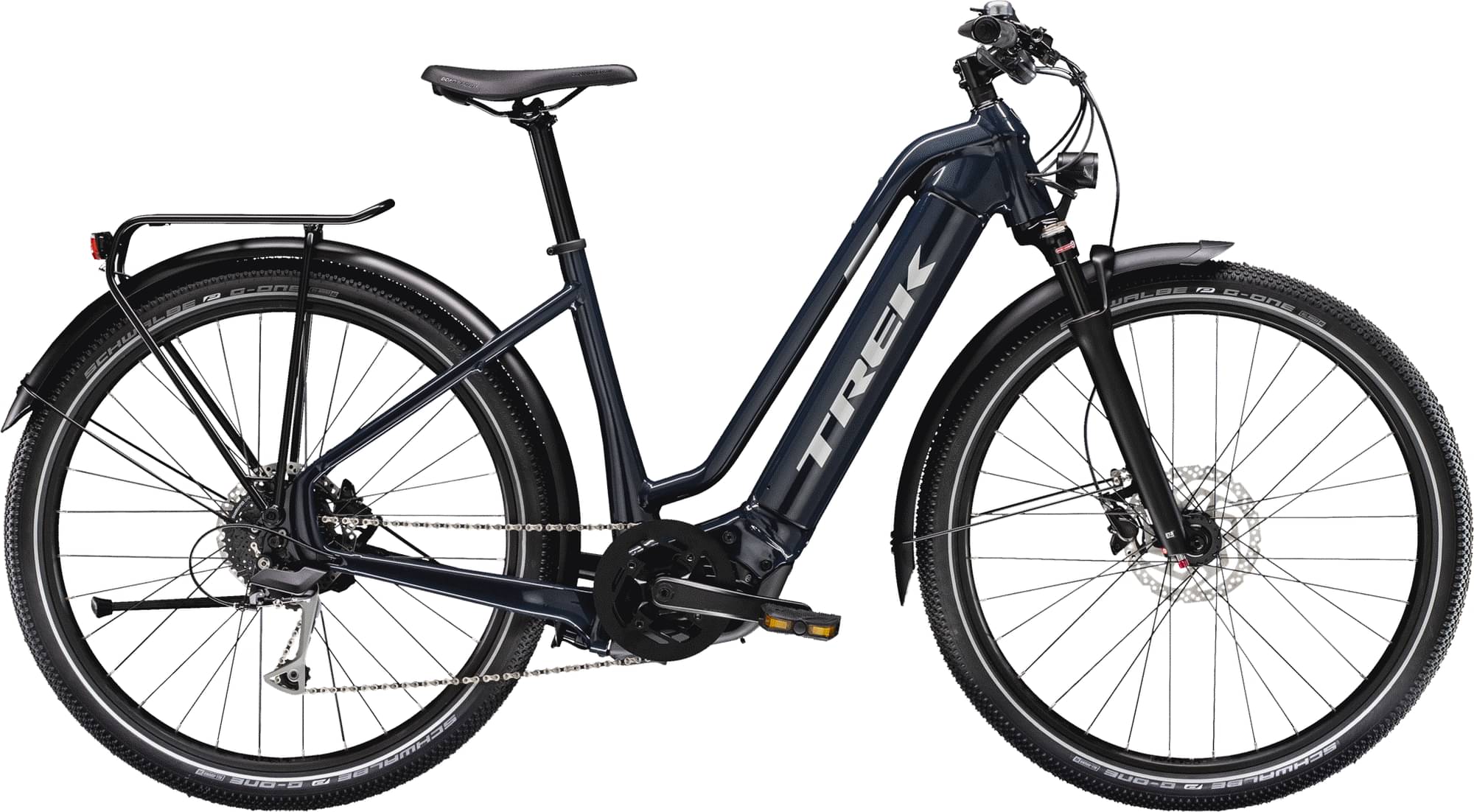

Trek Allant+ 7 Lowstep 2023
2023 E-bike
Estimate price |
3,499$
Weight | 24.86 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Fork Suntour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Suspension Fork
SR Suntour Mobie 25, coil spring, lockout, rebound adjust, tapered alloy steerer, 15x100mm thru axle, 45mm travel
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Shimano Alivio M3100, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm length; Size: L, ProWheel alloy, 175mm length
Chain
KMC E9S, 9 speed
Pedals
Bontrager City pedals
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Tires
Schwalbe G-One, 650x57mm
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
Battery
Bosch PowerTube 500Wh
Charger
Bosch standard 4A, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.58 mm | 1.65 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 295 mm |
| Front Center | 657 mm | 660 mm | 667 mm |
| Rake | 44 mm | 41 mm | 41 mm |
| Trail | 90 mm | 86 mm | 81 mm |
| Stack | 605 mm | 630 mm | 660 mm |
| Reach | 397 mm | 399 mm | 401 mm |
| Top Tube Length | 582 mm | 592 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 491 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1137 mm | 1140 mm | 1147 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 475 mm | 477 mm | 476 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
Allant+ 7 Lowstep completes the Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. You can easily view all of the Trek E Allantplus e-bikes models from 2023, here.
Model range prices
Trek Allant+ 7 Lowstep 2023 is the cheapest e-bike model and costs 3499$. Trek Allant+ 9S Stagger 2023 is the most expensive one and costs 5626$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Allant+ 7 Lowstep price was 3499$. Doing a quick comparison, we notice that Allant+ 7 Lowstep price is 36.2% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.86 kg (54.81 lbs), the Allant+ 7 Lowstep model is slightly lighter than average. In other words, this model is 1.37% lighter than the average Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Allant+ 7 Lowstep components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 45mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Allant+ 7 Lowstep model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Allant+ 7 Lowstep is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
