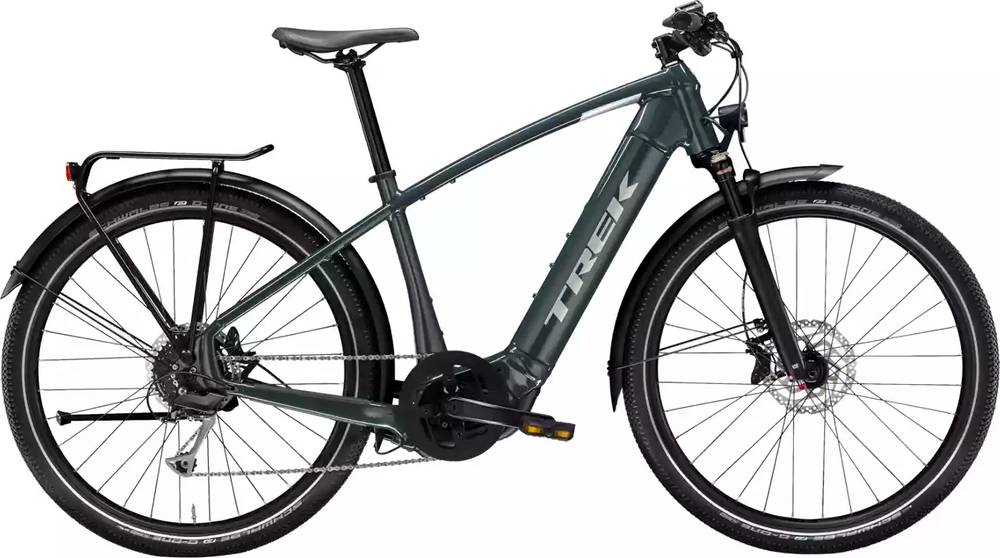

Trek Allant+ 7S 2020
2020 E-bike
Estimate price |
3,899$
Weight | 24.52 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 50mm -
Fork SunTour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, Range Boost compatible, internal cable routing, Motor Armor, post-mount disc, 135x5mm QR
Suspension Fork
SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15mm thru-axle, 50mm travel
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: M, ProWheel alloy, 170mm; Size: L, XL, ProWheel alloy, 175mm
Chain
KMC X9
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager sealed cartridge bearing rear hub, 32-hole, 6-bolt disc, 5mm QR
Rims
Alex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve
Spokes
J-Bend, 14g, Steel, Black
Tires
Schwalbe G-One, 650Bx57c
Brakes
Brakes
Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor
Disk Rotors
Shimano RT26, 180mm, 6-bolt
Cockpit
Stem
Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager alloy, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length
Handlebar
Size: M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Motor & Battery
Motor
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.6 mm | 1.67 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 665 mm | 669 mm | 683 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 86 mm | 81 mm | 79 mm |
| Stack | 621 mm | 650 | 686 mm |
| Reach | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 593 mm | 605 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 165 mm | 195 mm | 230 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1144 mm | 1148 mm | 1162 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 793 mm | 835 mm | 877 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
Model Overview
Allant+ 7S is part of the Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. Take a sneak peek at all Trek E Allantplus e-bikes models from 2020, by clicking here.
Model range prices
Trek Allant+ 7 Lowstep 2020 is the most affordable e-bike of this model and has a price of 3599$. On the other hand, Trek Allant+ 9.9S 2020, is the most expensive and costs 5999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Allant+ 7S price was 3899$. Doing a quick comparison, we notice that Allant+ 7S price is 51.77% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.52 kg (54.06 lbs), Trek e-bike is slightly lighter than average. In conclusion, the average Commuter e-bike weighs 2.77% more than Allant+ 7S.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Allant+ 7S comes factory-installed with the SunTour MOBIE fork. This has a travel range of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Allant+ 7S has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Allant+ 7S model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Allant+ 7S has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trek Allant+ 7S e-bike has 3 sizes, in the range of 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
